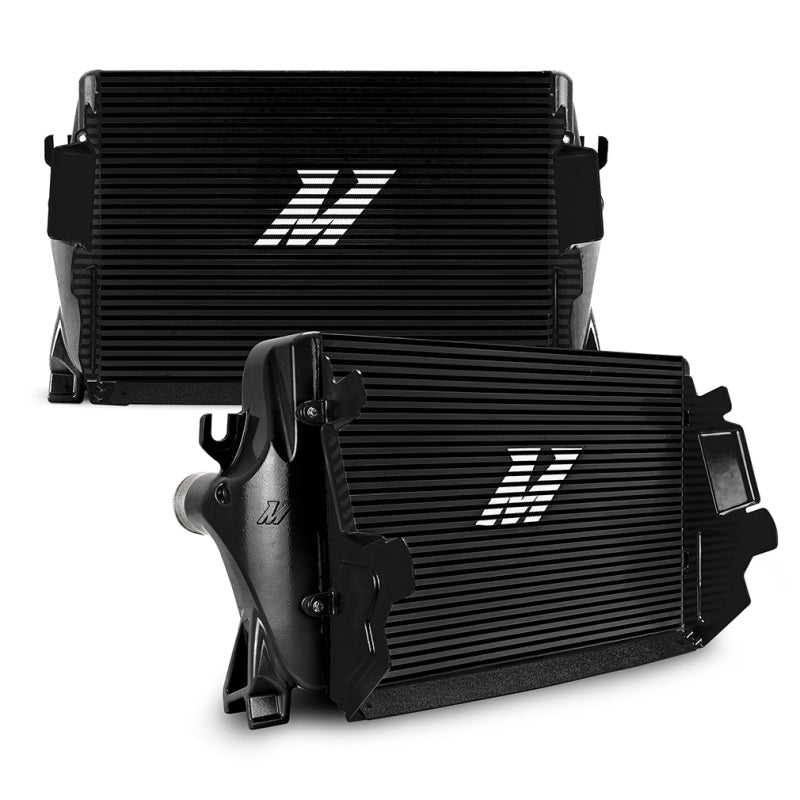

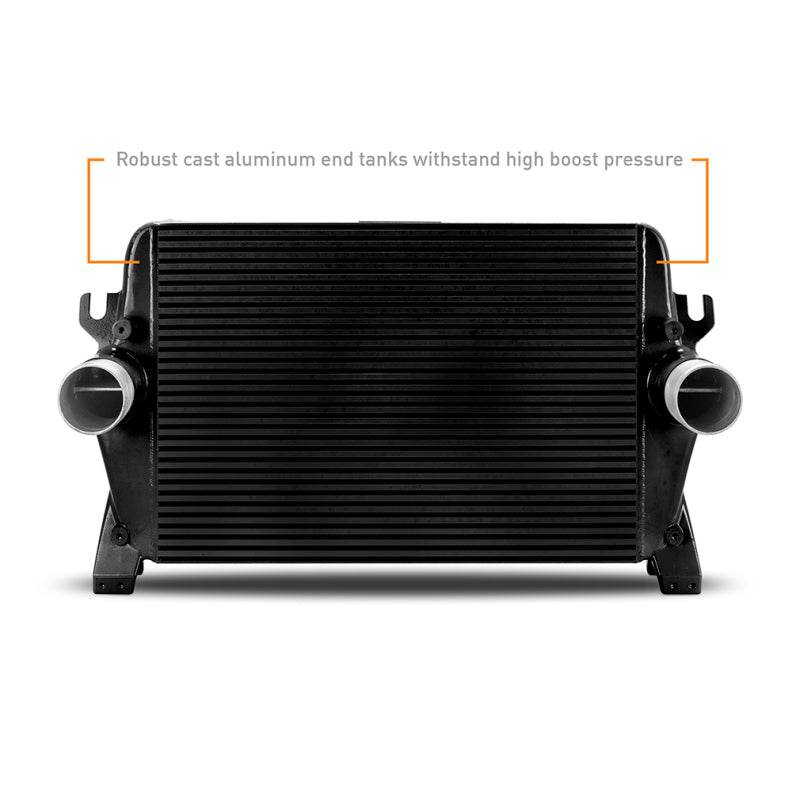

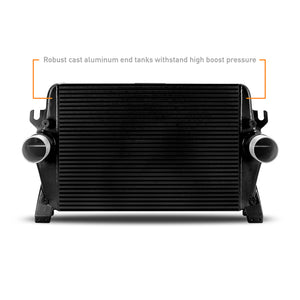

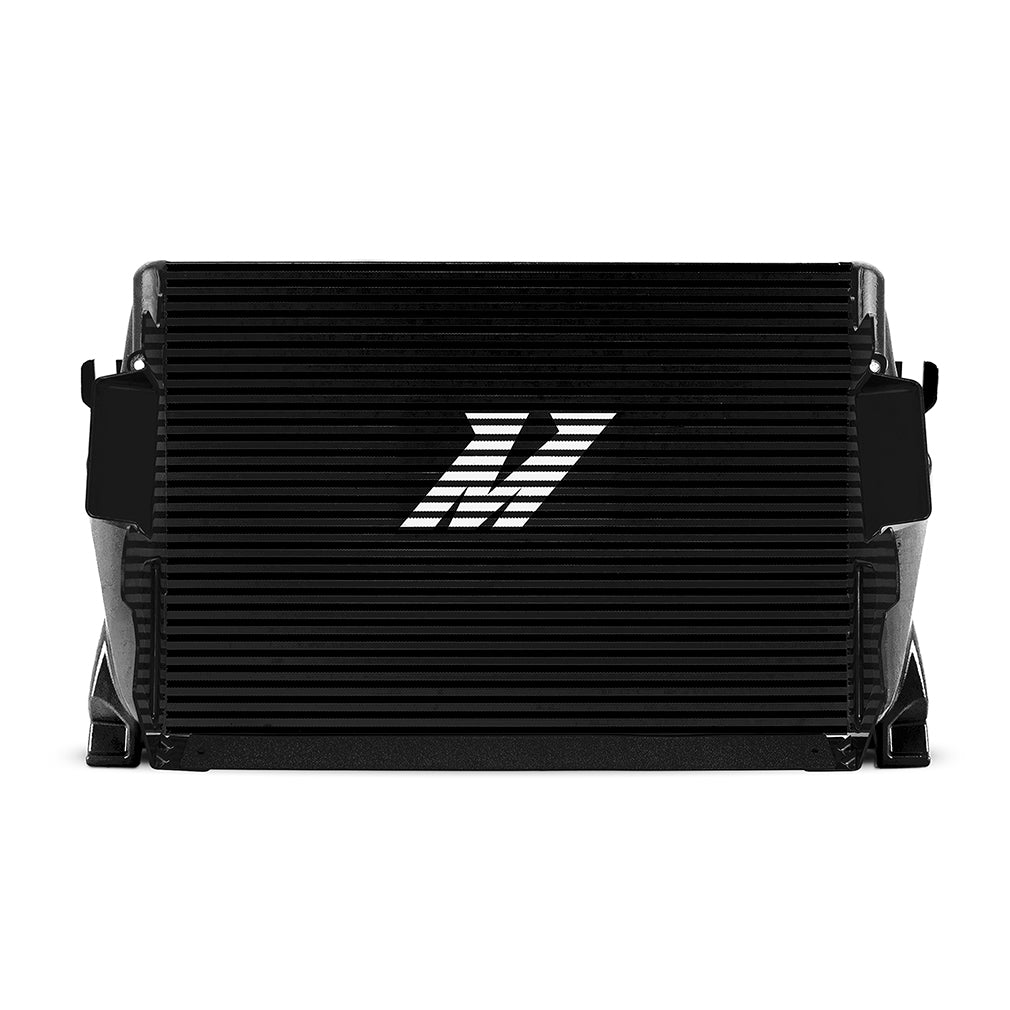

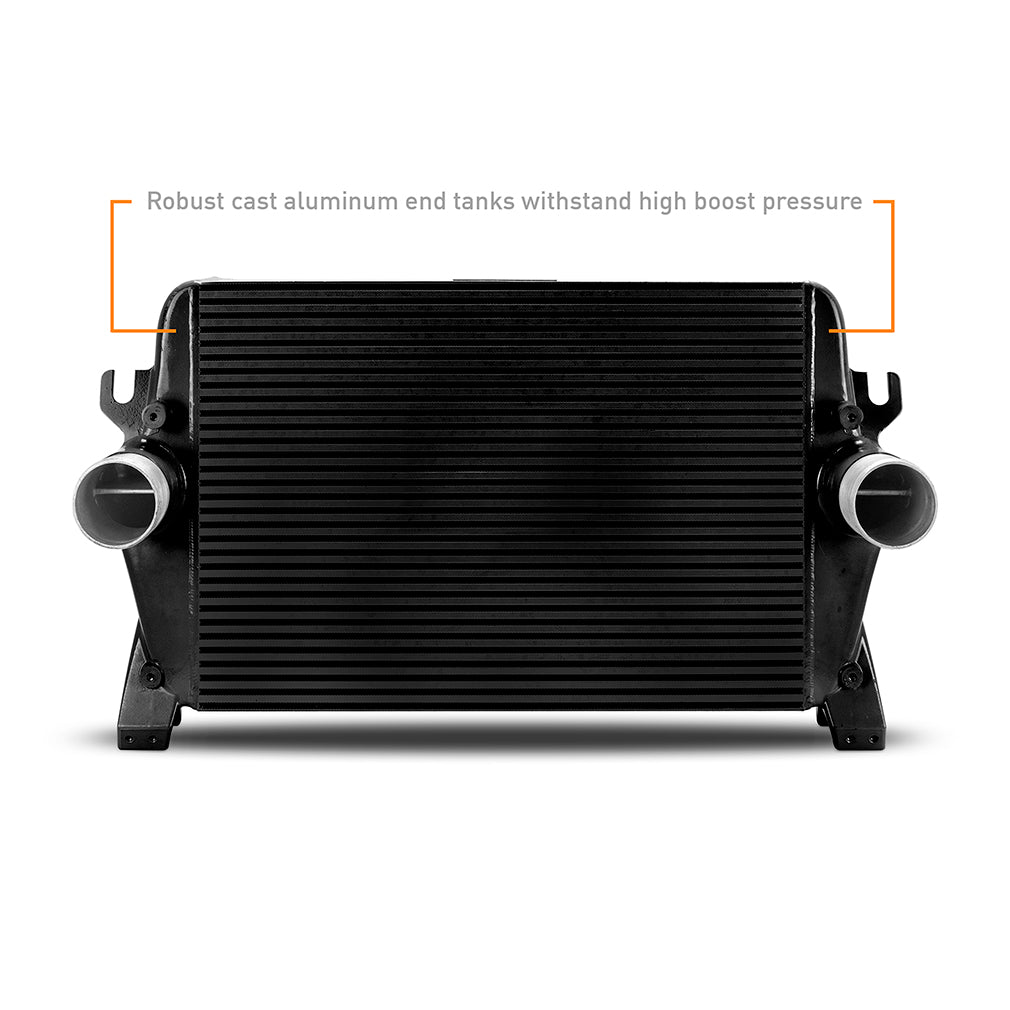

Mishimoto's performance intercooler is the perfect upgrade for your 2019+ Dodge Ram 6.7L Cummins.Engineered for exceptional cooling capacity and reliability, this intercooler features robust cast aluminum end tanks and a dense bar-and-plate core. With increased core volume, it supports substantial boost pressures, making it ideal for both stock and modified trucks. The included silicone boots, featuring DuraCore™ technology, provide superior resistance to heat, pressure, fuel, and oil, ensuring long-lasting performance. Available in sleek silver or stealth black, this intercooler is a must-have for Cummins owners seeking to elevate their truck's performance. Backed by Mishimoto's Lifetime Warranty, you can trust in the quality and durability of this premium upgrade.
User 1Installation Instructions
Features and Benefits
- Demonstrated to reduce outlet temperatures by 20°F compared to stock

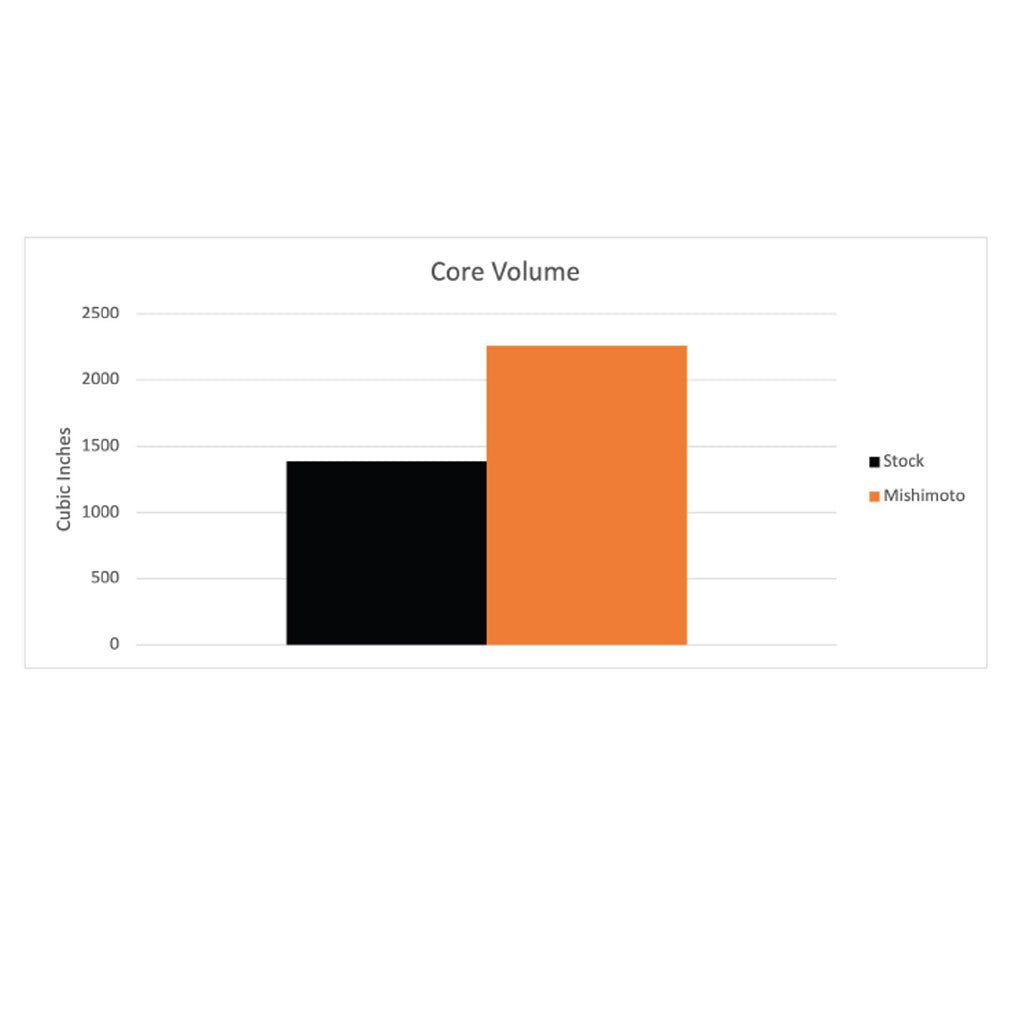

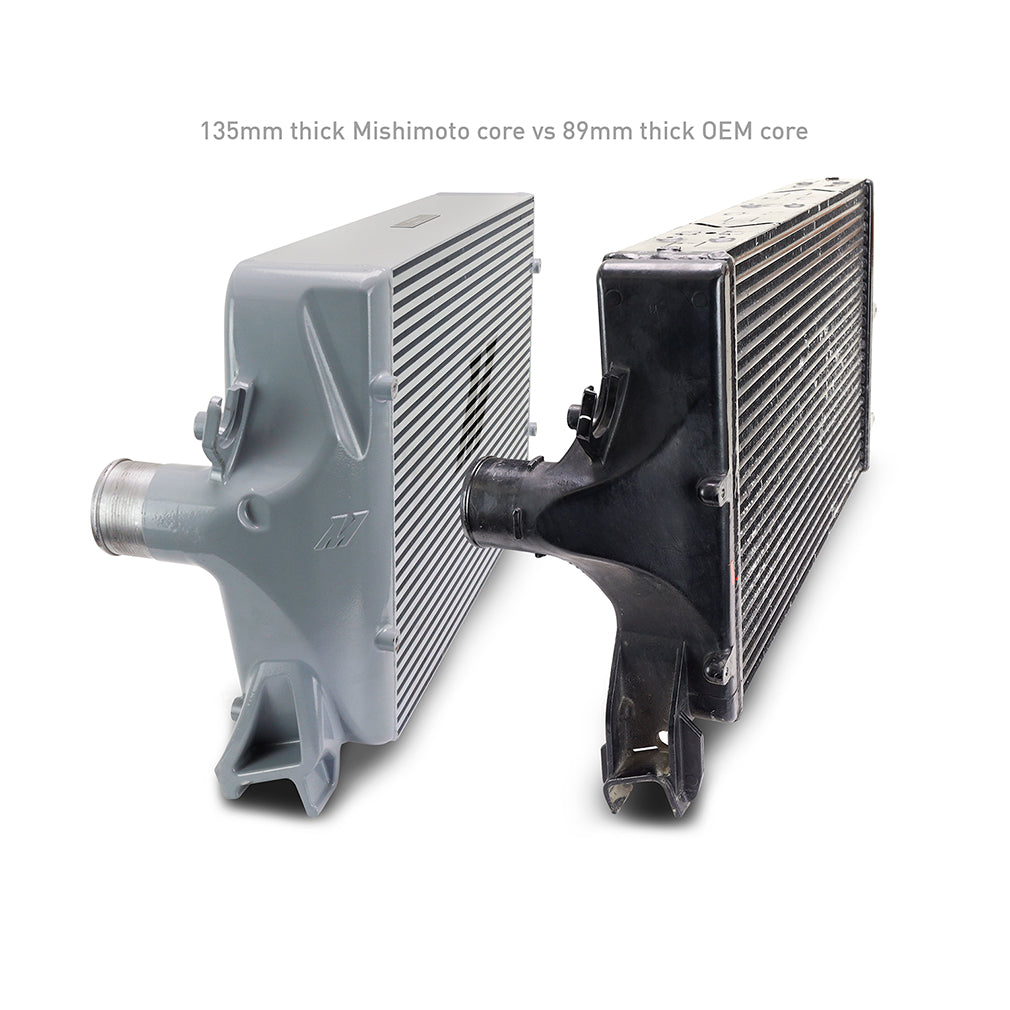

- 63% larger core than stock
- 44.7% less restrictive than stock
Specifications
-
Chassis Codes: DT
-
Maximum Recommended Boost Pressure (PSI): 100
-
Maximum Recommended Horsepower: 734
-
Overall Length (in): 33
-
Overall Height (in): 18.66
-
Overall Width (in): 9.57
-
Core Thickness (in): 5.31
-
Core Length (in): 25
-
Core Height (in): 17.03
-
Inlet (in): 3.03
-
Outlet (in): 3.03
-
Weight (lbs): 62
-

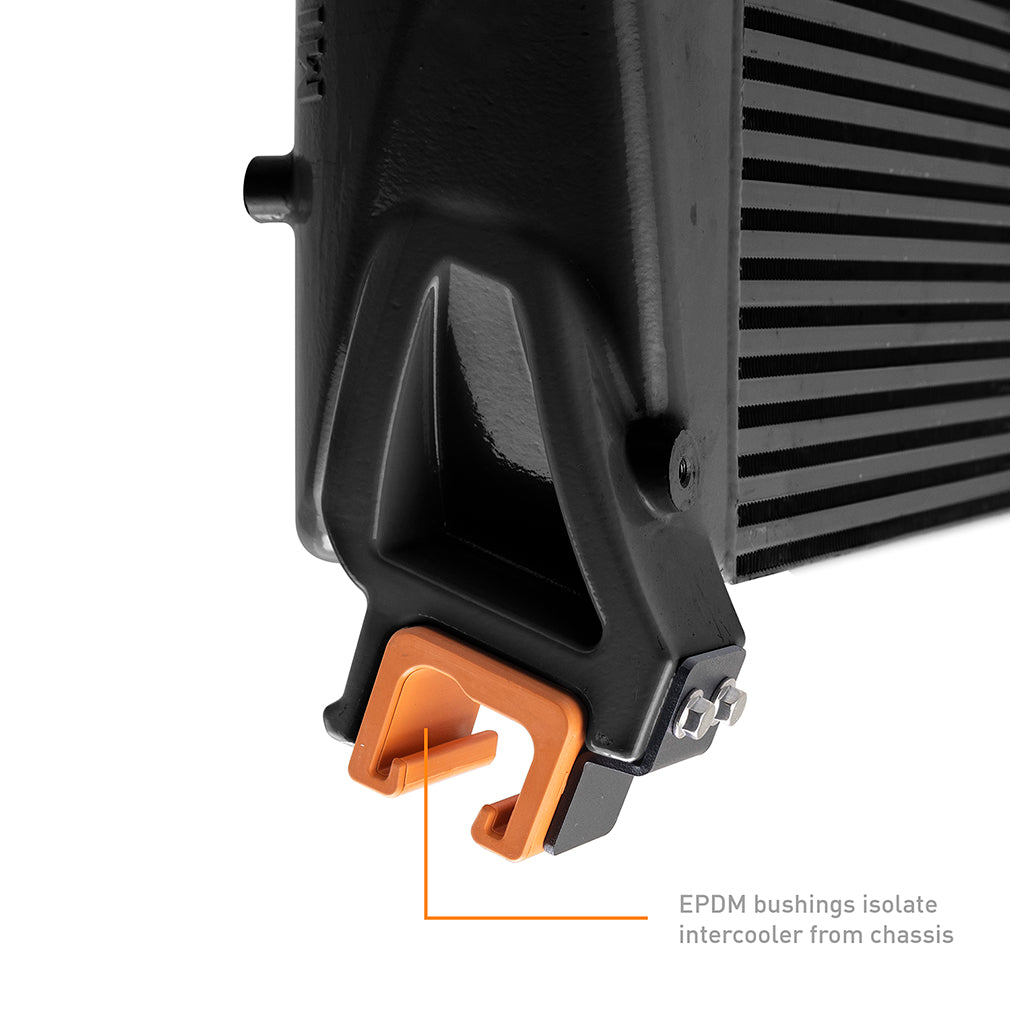

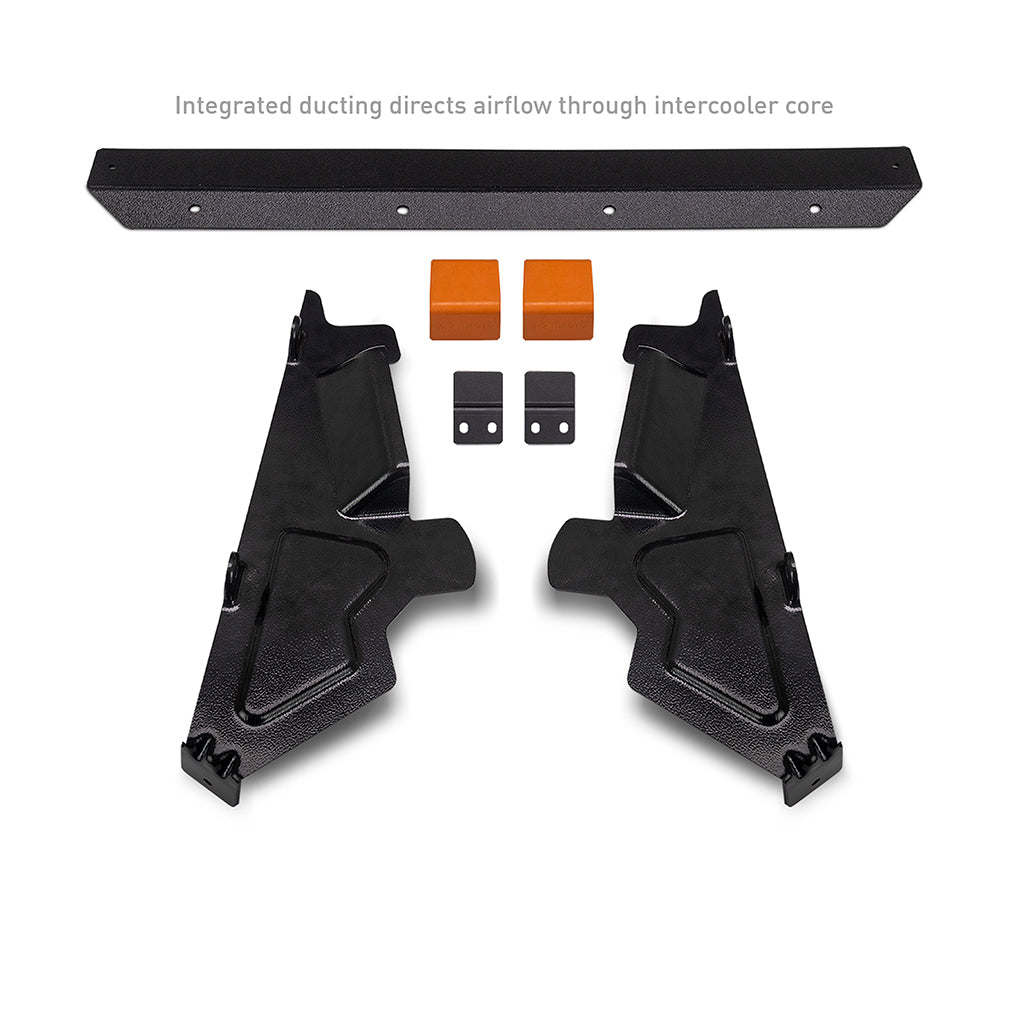

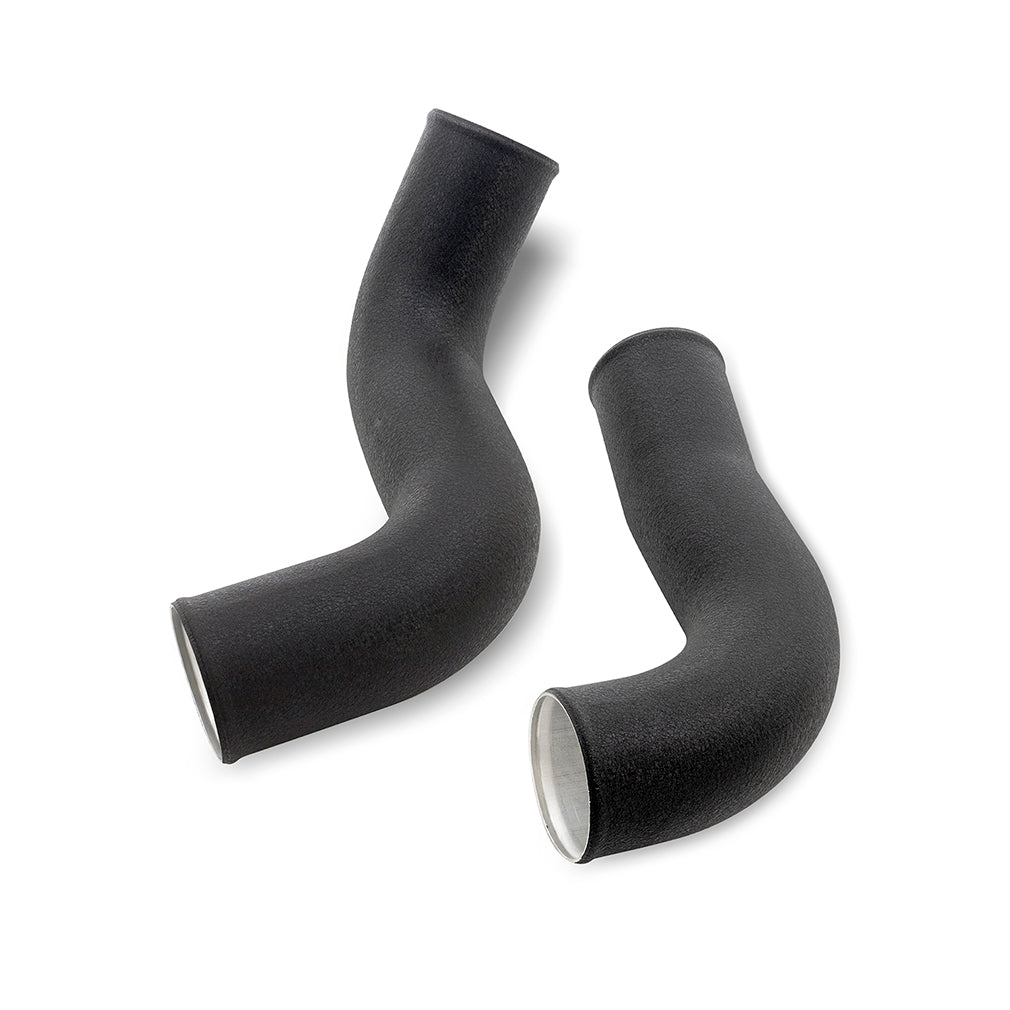

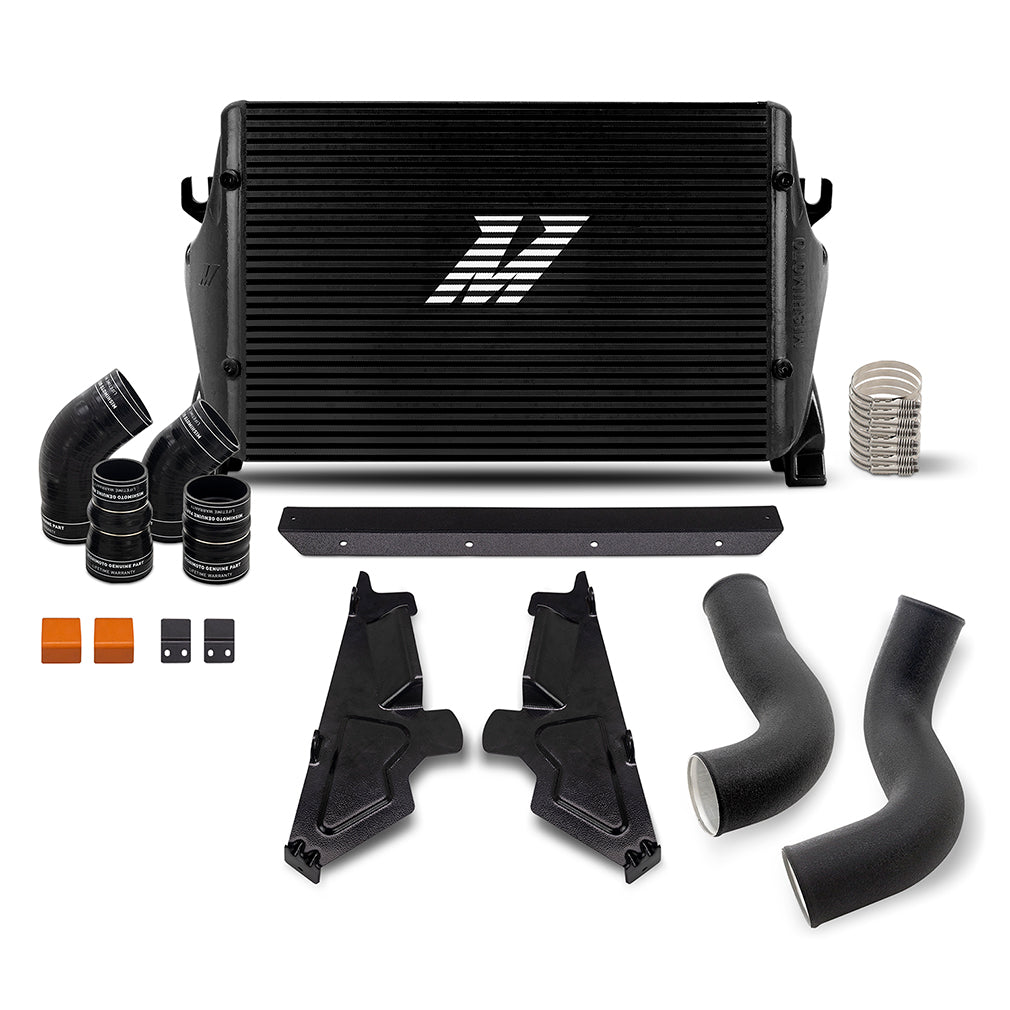

Includes: (1)Performance Intercooler; (3)Intercooler Ducts; (2)Rubber Isolators; (2)Mounting Brackets; (1)Hot-Side Intercooler Pipe; (1)Cold-Side Intercooler Pipe; (4)Couplers; (8)Clamps; (1)Hardware Kit
-
Pipe Diameter: 3.5
-
Cold Side Pipe Inside Diameter: 3.03 in
-
Hose Clamps Included: Yes
-
Intercooler Type: Air-to-Air
-
Maximum Boost Pressure: 100 psi
-
Maximum Horsepower: 734 hp
-
Pipe Finish: Powder Coated
-
Universal Or Specific Fit: Specific
