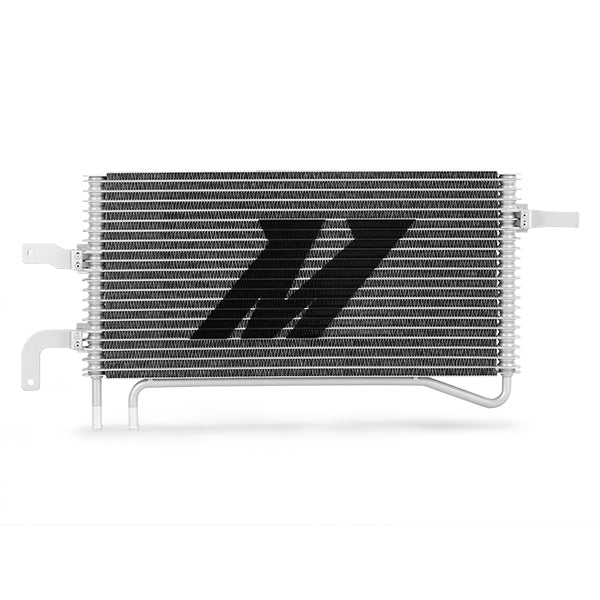

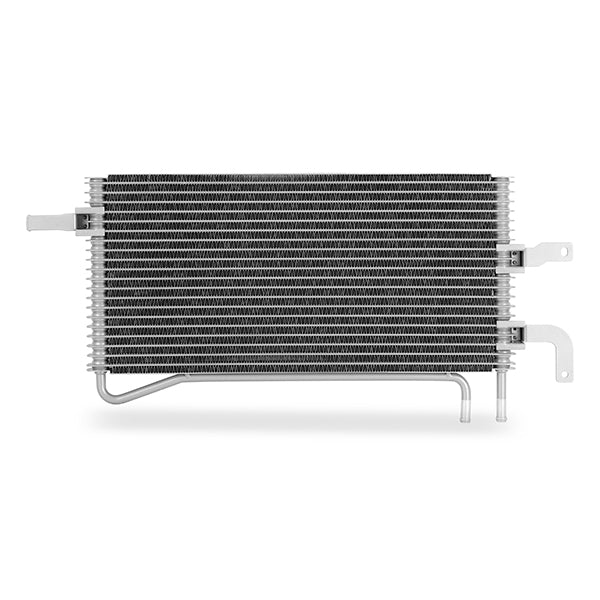

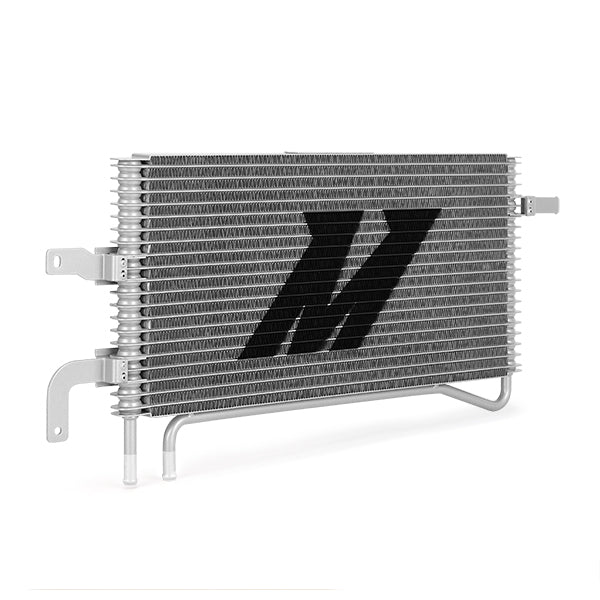

Complement your cooling system with the latest addition to Mishimoto?s Mustang GT performance parts line, the all-new Mustang GT automatic transmission cooler. The stock Mustang GT transmission cooler does an ample job of keeping temperatures down, but with any hard driving or track time, trans temps can get out of hand fast. The 20-row Mishimoto stacked plate cooler provides a larger surface area over the stock cooler, 50% larger to be exact. With twice the cooling capacity of stock, high transmission fluid temperatures will be the least of your worries. No modifications are necessary for installation, and, just like all Mishimoto Mustang parts, this cooler comes with the Mishimoto Lifetime Warranty.
Features and Benefits
- Proven 18F drop in transmission fluid temperature with no additional fluid pressure drop

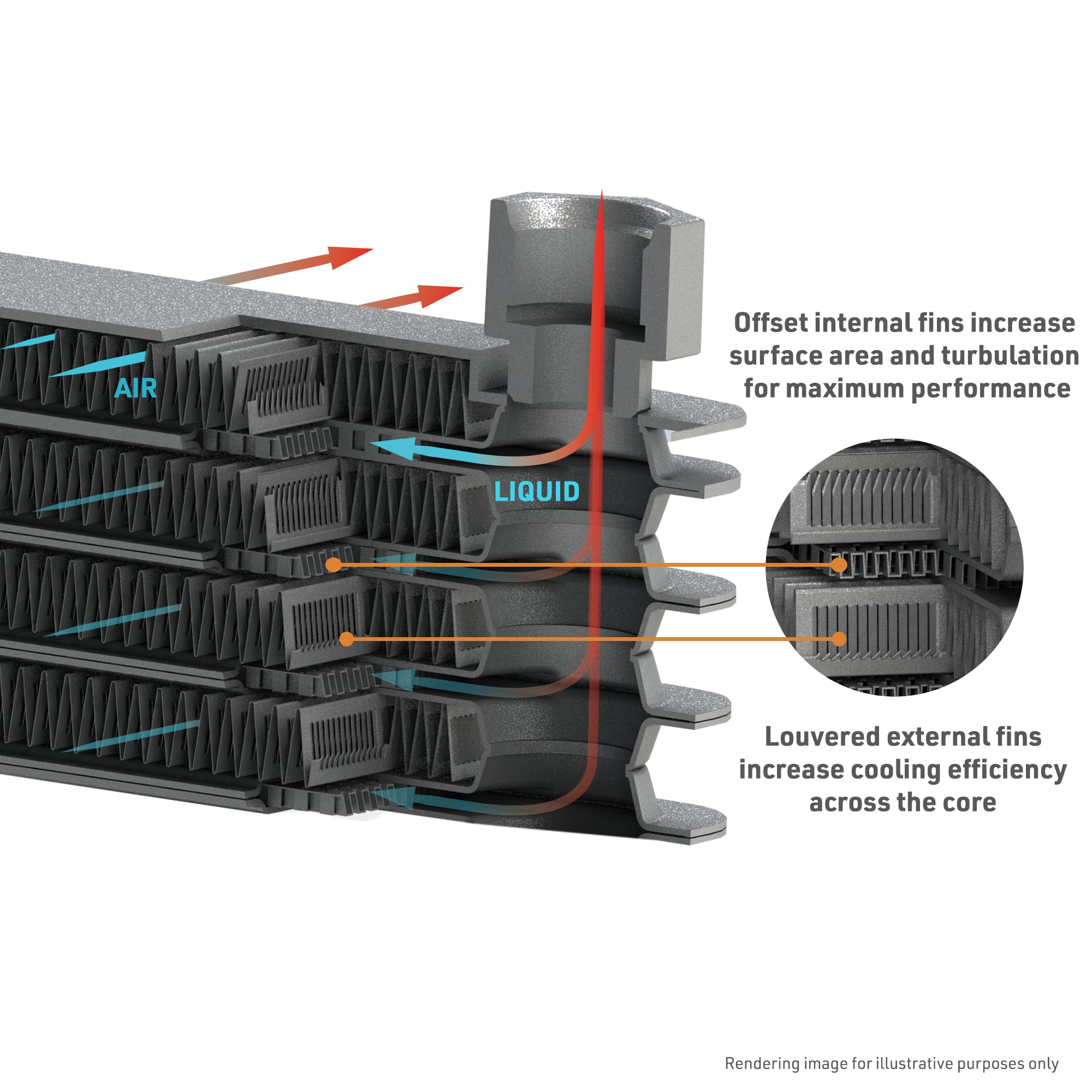

- 20-row stacked plate fluid cooler provides double surface area over the stock transmission cooler
- Transmission cooler core has a 180-percent increase in core volume compared to the stock 6 row transmission cooler
Specifications
-
Rows: 20
-
Core Length (in): 21.4
-
Core Height (in): 10.6
-
Core Thickness (in): 1.3
-
Engine Codes: 3.7L Cyclone V6; 5.0L Coyote V8
-
Chassis Codes: S-550
-
Overall Length (in): 28.5
-

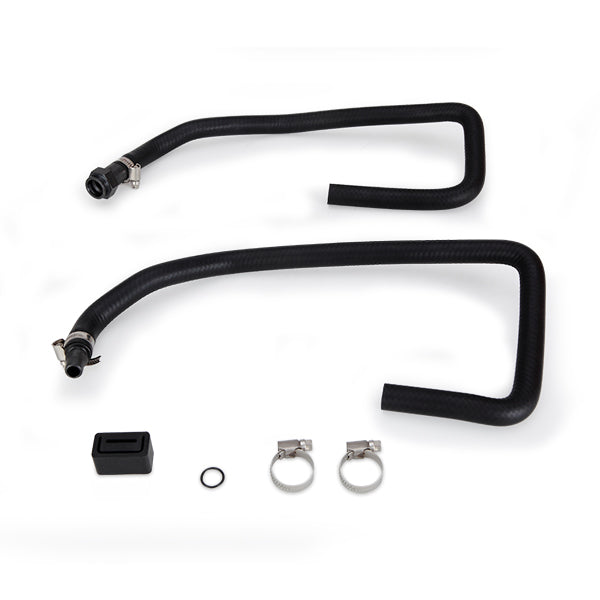

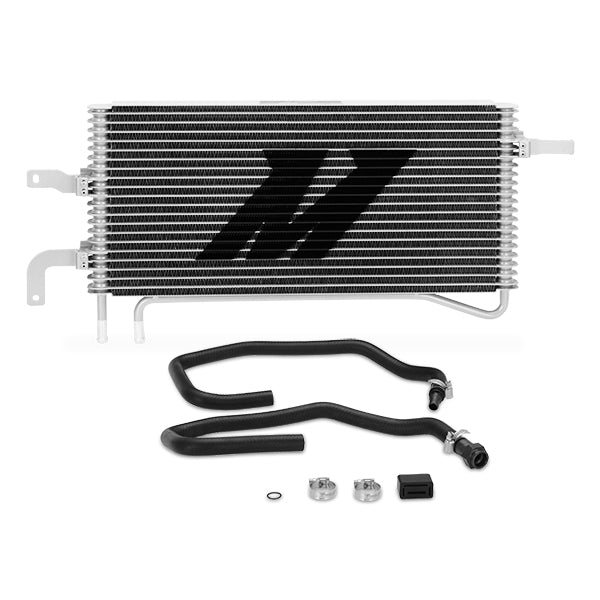

Includes: Transmission Cooler; Aluminum transmission cooler fittings; Nitrile Rubber transmission cooler hoses; Rubber transmission mount bushing; Mounting Hardware
-
Cooler Fluid Capacity: 0.8 qt
-
Core Material: Aluminum
-
Core Width: 21.4 in
-
Finish: Natural Aluminum
-
Inlet Diameter: 0.5 in
-
Line Included: Yes
-
Mounting Hardware Included: Yes
