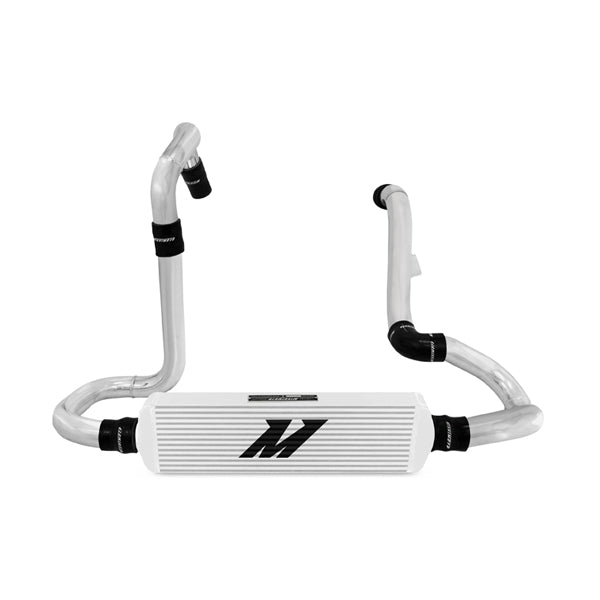

Mishimoto is proud to release our brand new intercooler and piping kit for the 2010-2012 Hyundai Genesis 2.0T.This kit was tested on the most powerful 2.0T Genesis in the world and is proven to significantly reduce intake temperatures and improve overall cooling efficiency.The Hyundai Genesis 2.0T Race Intercooler Kit is a direct fit unit and will work perfectly with all OEM equipment and all Mishimoto Genesis Coupe products.The Hyundai Genesis Race Intercooler Kit includes a complete set of aluminum charge pipes, silicone couplers, and t-bolt clamps.Unlike most available aftermarket intercoolers the Mishimoto kit does not require any crash bar modifications yet still offers a massive increase in volume and flow, with the ability to support vehicles up to 500HP.Try that with your OEM cooler! The intercooler included is constructed of durable 6061 aluminum with cast end tanks and a 3.75 thick core. This kit includes the signature Mishimoto lifetime warranty, so you know quality is guaranteed.
Installation InstructionsTechnical Bulletin
Features and Benefits
- 3.75-in thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
- Smooth cast end tanks allow the best possible airflow in and out of the intercooler

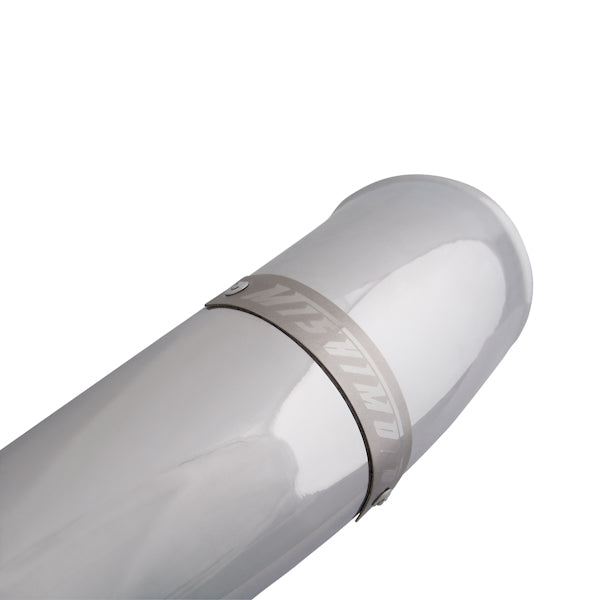

- Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends in the stock piping
Specifications
-
CARB EO Number: D-759
-
Cold Side Pipe Inside Diameter: 2.5 in
-
Core Thickness: 3.15 in
-
Core Length: 22 in
-
Core Height: 7.2 in
-
Core Color: Silver
-
Coupler Color: Black
-
Grade Type: Performance
-
Hose Clamps Included: Yes
-
Intercooler Type: Air-to-Air
-
Maximum Boost Pressure: 40 psi
-
Pipe Color: Silver
-
Pipe Finish: Powder Coated
-
Universal Or Specific Fit: Specific
-
Maximum Recommended Boost Pressure (PSI): 40
-
Overall Length (in): 29.5
-
Overall Height (in): 7.5
-
Inlet (in): 2.5
-
Outlet (in): 2.5
-
Weight (lbs): 18.7
-

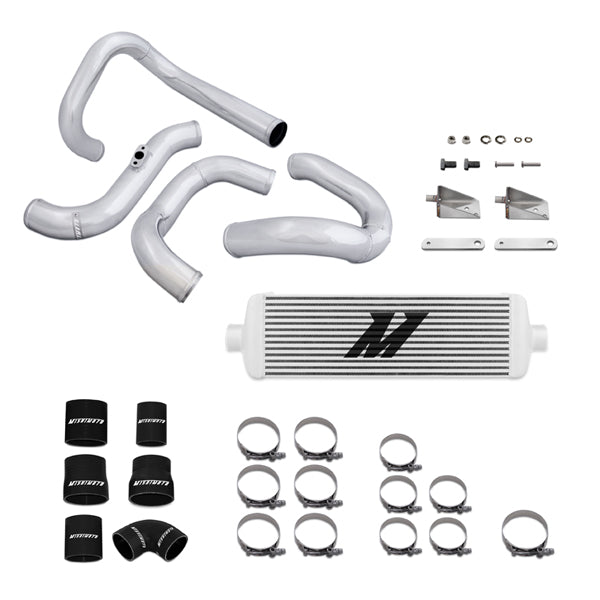

Includes: (1) Mishimoto J Line Intercooler (Black or Silver); (4) Aluminum Pipes
