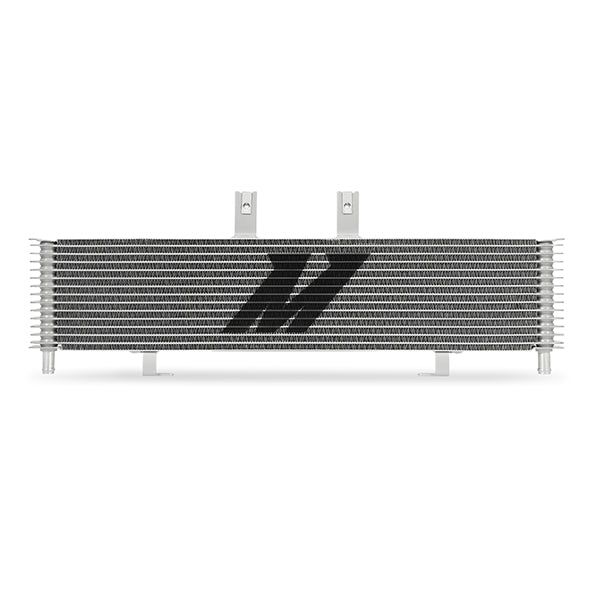

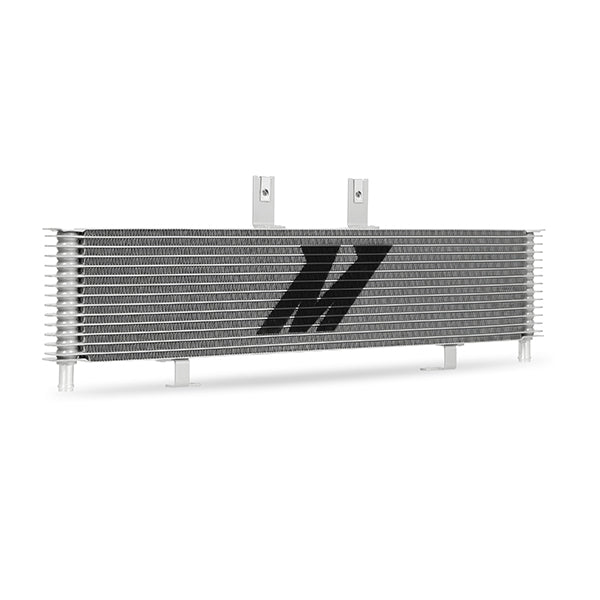

There's no greater enemy for a transmission than heat. Whether your 2006-2010 Chevy/GMC 6.6L Duramax is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag-strip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2006-2010 Chevy/GMC 6.6L Duramax transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. Aside from it's durable construction, this transmission cooler is significantly larger than the stock core. The Mishimoto transmission cooler boasts a 84% greater core volume, and 125% greater fin surface area than the stock 2006-2010 Duramax transmission cooler. The included CNC-machined adapters connect directly to the stock transmission cooler lines for leak-free cooling. Direct-fit brackets and tailor-made hoses make installation easy. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry free cooling as long as you own it.
Features and Benefits
- Direct-fit for all 2006-2010 Chevrolet/GMC with Allison transmission (LBZ/LMM)

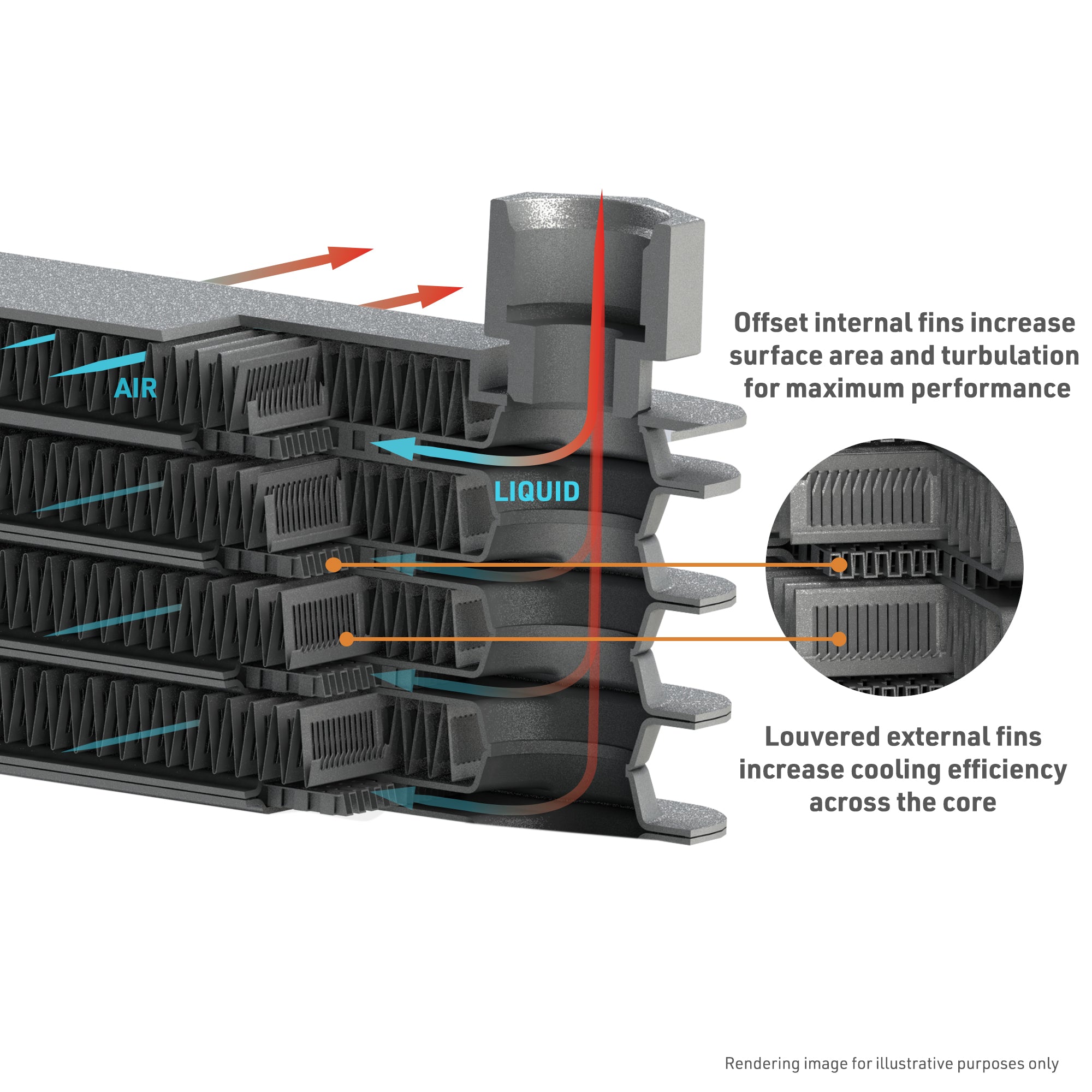

- Stacked-plate construction for maximum durability and superior cooling
- CNC-machined adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines
Specifications
-
Rows: 13
-
Core Length (in): 27.95
-
Core Height (in): 5.78
-
Core Thickness (in): 1.25
-
Transmission Codes: Allison 1000
-

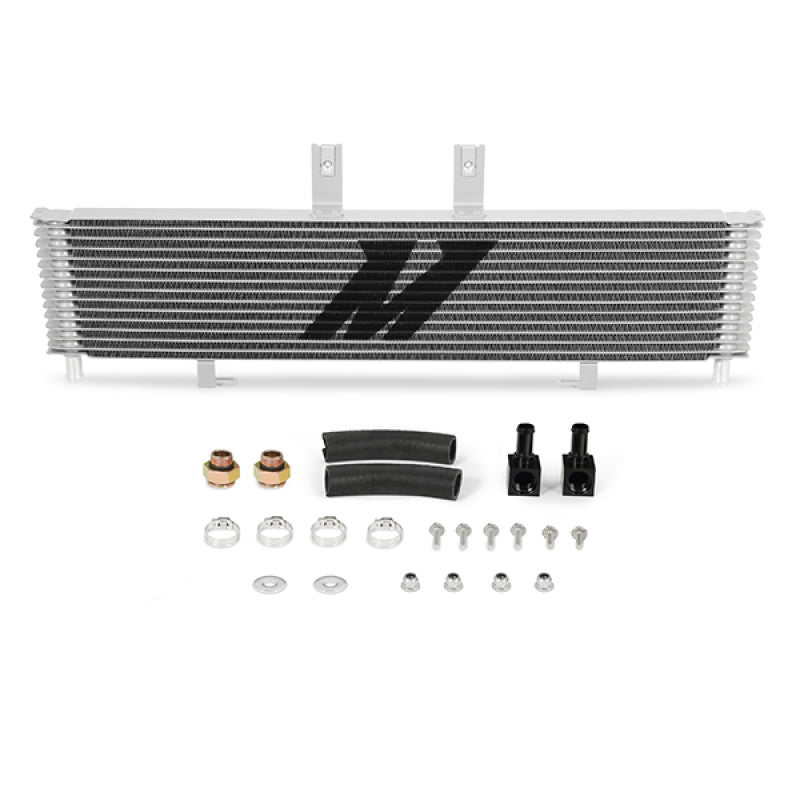

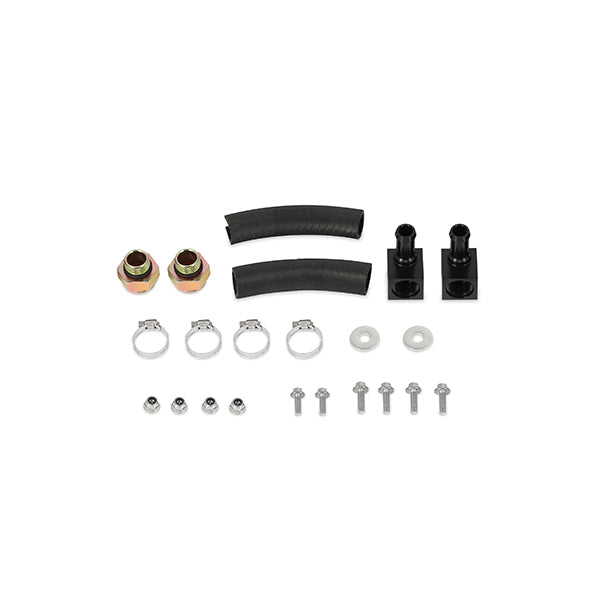

Includes: Mishimoto Stacked Plate Transmission Cooler; CNC-Machined Quick-Disconnect to Hose Barb Adapters; Stock-style Quick-Disconnect Fittings; Transmission Hoses; Worm Gear Clamps; Mounting Hardware; Includes durable SAE J1532 hose designed specifically for use with transmission fluid
-
Core Material: Aluminum
-
Core Width: 27.95 in
-
Finish: Natural Aluminum
-
Grade Type: Performance
-
Inlet Diameter: 1 in
-
Line Included: Yes
-
Mounting Hardware Included: Yes
