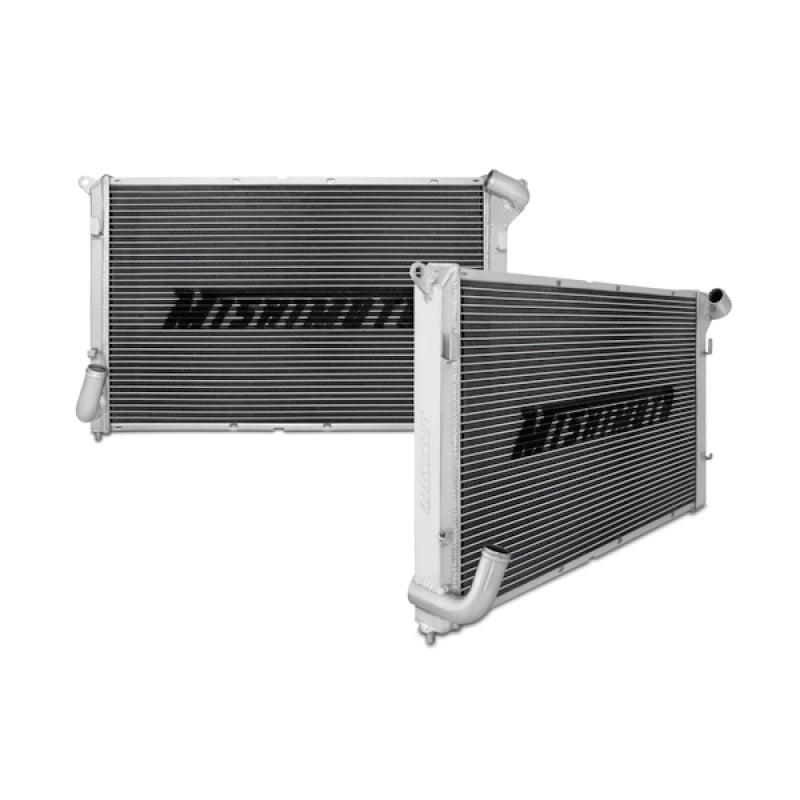

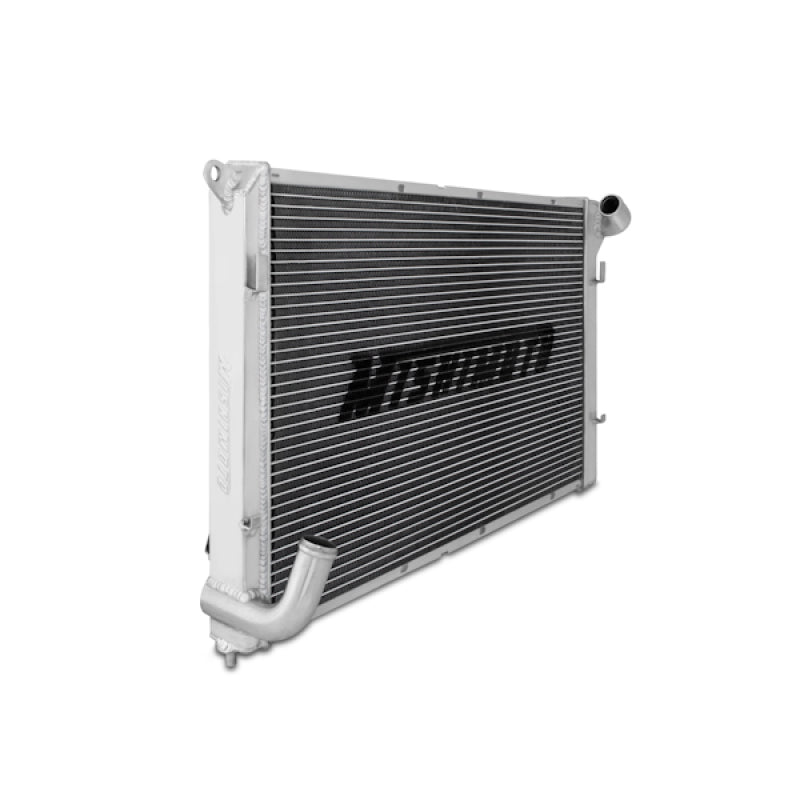

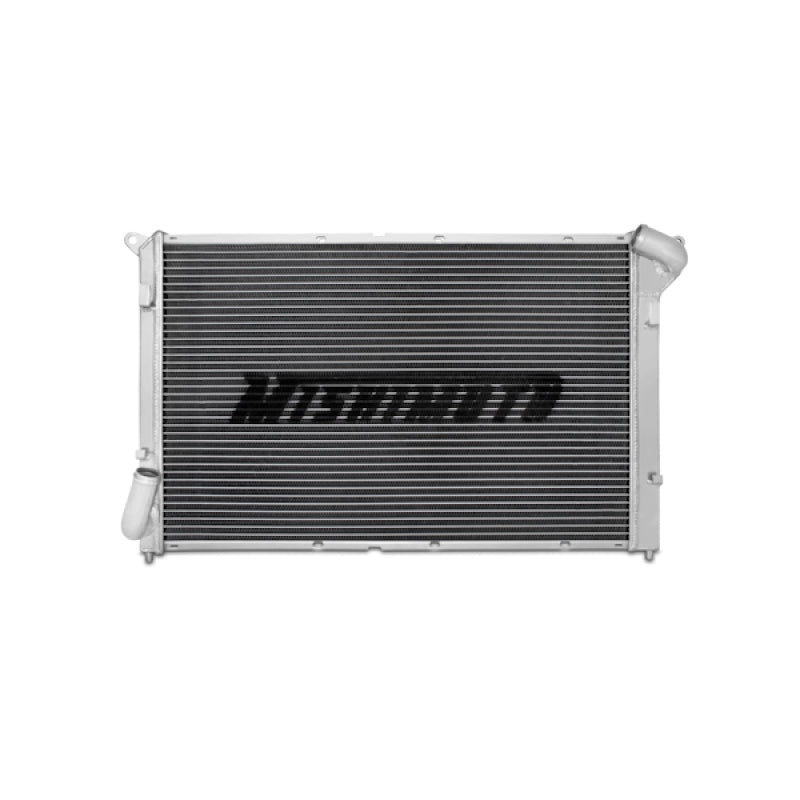

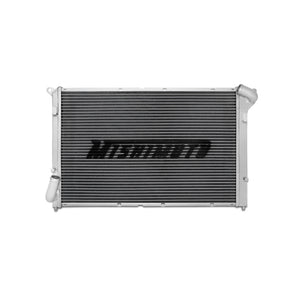

The Mishimoto MINI Cooper S radiator was designed and engineered as a direct OEM fit; no cutting, fabrication or modification will be required for installation.The radiator is made with a two row brazed aluminum core and TIG welded polished aluminum end tanks.Replacing the OEM radiator on a MINI Cooper S with an aluminum performance radiator from Mishimoto will improve cooling capacity and keep the engine cool to prevent overheating.Maintaining the proper temperatures in the engine will help extend its life and improve its overall performance.
Features and Benefits

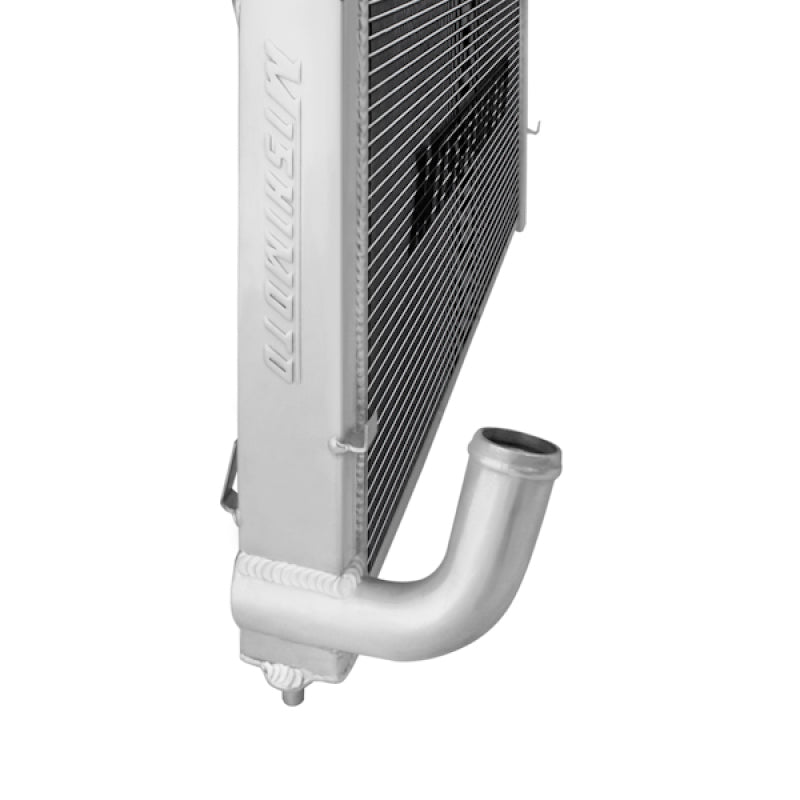

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Specifications
-
Core Finish: Uncoated
-
Core Height: 15.28 in
-
Core Length: 22.8 in
-
Core Row Quantity: 2
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Drain Plug Thread Size: M12 - 1.5
-
Fluid Capacity: 2.03 gal
-
Inlet Diameter: 1.25 in
-
Inlet Location: Top Right
-
Outlet Location: Bottom Left
-
Overall Height: 28.2 in
-
Overall Length: 17.2 in
-
Overall Width: 2.07 in
-
Fluid Capacity (gal): 2.1 gal
-
Rows: 2
-
Inlet (in): 1.25
-
Outlet (in): 1.25
-
DPI: 2859
-
Engine Codes: W11B16A = Supercharged 1.6L; W10B16A = Supercharged 1.6L (2002 only)
-
Chassis Codes: R52; R53
