SKU: SKU: METBP270IB
Profile: BP270I
Application: Fast Road.
Unit Type: Blank.

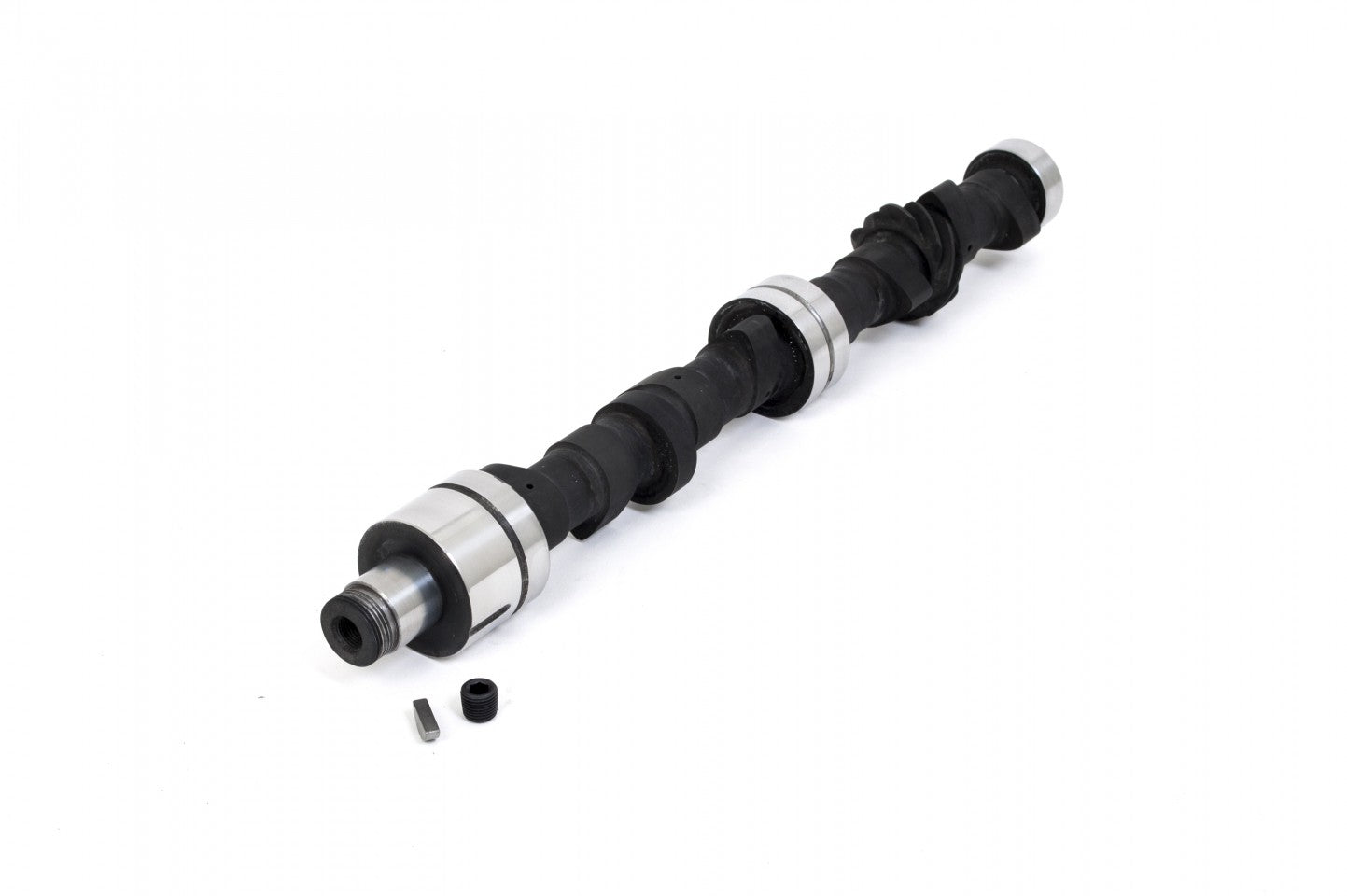

Single Point Injection cam. Excellent torque and very good idle.
Blank camshafts are only available as A+ Series (Metro slot type oil pump drive) and have drilled lobes for additional lubrication.
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
Please check the end float of the camshaft when using non O.E replacement oil pump, as additional machining may be required to the pump.
| Weight | 2 kg |
|---|---|
| Application | Fast Road |
| Power Band | 1500-6500 |
| Power Increase | 8BHP |
| Duration Inlet | 252° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .326" 8.28mm |
| Valve Exhaust Lift | .346" 8.73mm |
| Timing Inlet | 16 - 56 |
| Timing Exhaust | 62 - 22 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .038" 0.97mm |
| TDC Exhaust Lift | .042" 1.07mm |
| Valve Inlet Clearance | .016" .40mm |
| Valve Exhaust Clearance | .016" .40mm |
