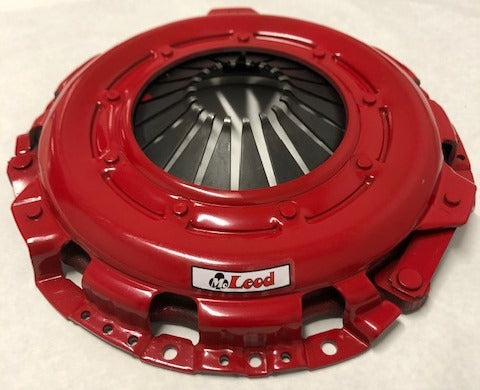

Pressure Plate:12" Diaph:GM LS 1997-04 LS1/LS6 Flat Syle Flywheel:Dowel Pins
McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!
- • Drag Racing, Road Racing, Oval Tracks
• Diaphragm, Borg & Beck, and Long types.
• General Motors, Ford, Chrysler and Import applications.
Specifications
| Application |
1997-2004 Corvette; 1998-2002 Camaro/Firebird. |
| Pressure Plate Diameter (in.) |
12.000 |
| Pressure Plate Pattern |
Borg & Beck Even Pattern |
| Bolt Circle |
12-5/8In. |
| Clamp Load |
2500 Lbs |
| Counterweight Assist |
No |
| Bolt Holes Dia |
10mm |
| Dowel Pins Required |
Yes |
| Hardware Included |
No |
| SFI Approved |
Yes |
Installation
