SKU: SKU: MLR360501

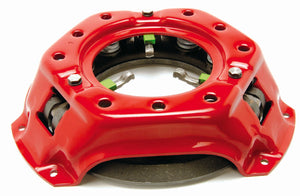

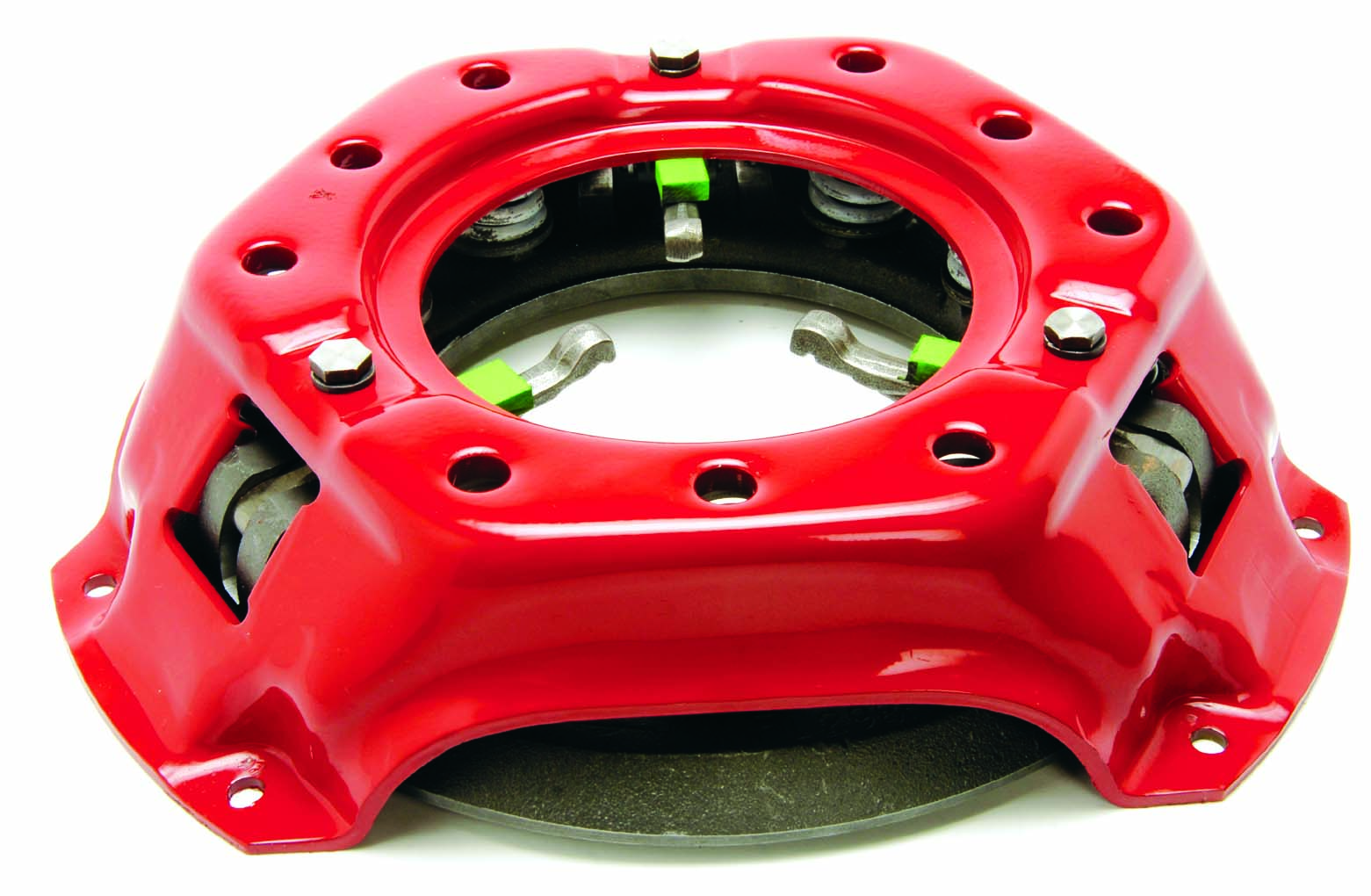

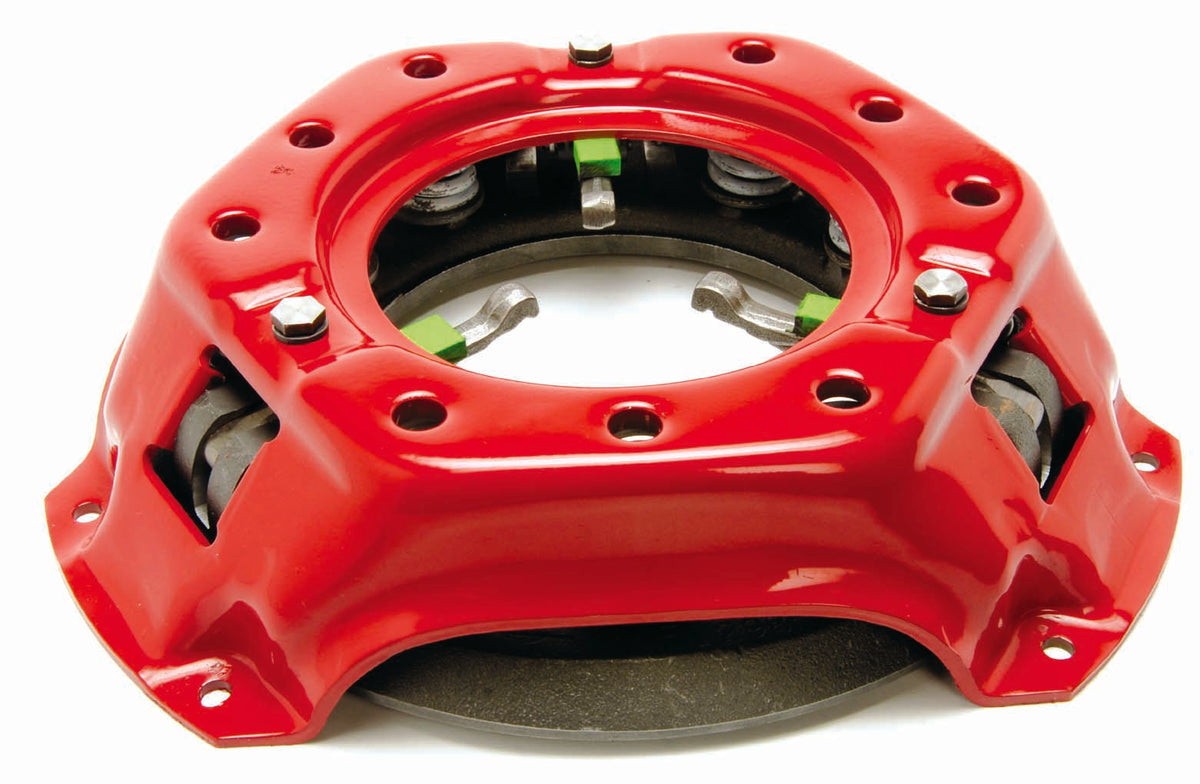

Pressure Plate: Ford Long: 11": 4:8:1 Lever: 1700 Lbs: With C/O: Each
McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!
| Application | Small Block Ford; Big Block Ford |
| Pressure Plate Diameter (in.) | 11.000 |
| Pressure Plate Pattern | Ford Long Pattern |
| Bolt Circle | 3-3/8In. |
| Clamp Load | 1700 Lbs |
| Counterweight Assist | Yes |
| Bolt Holes Dia | 5/16 x 18 |
| Dowel Pins Required | No |
| Hardware Included | No |
| SFI Approved | Yes |
