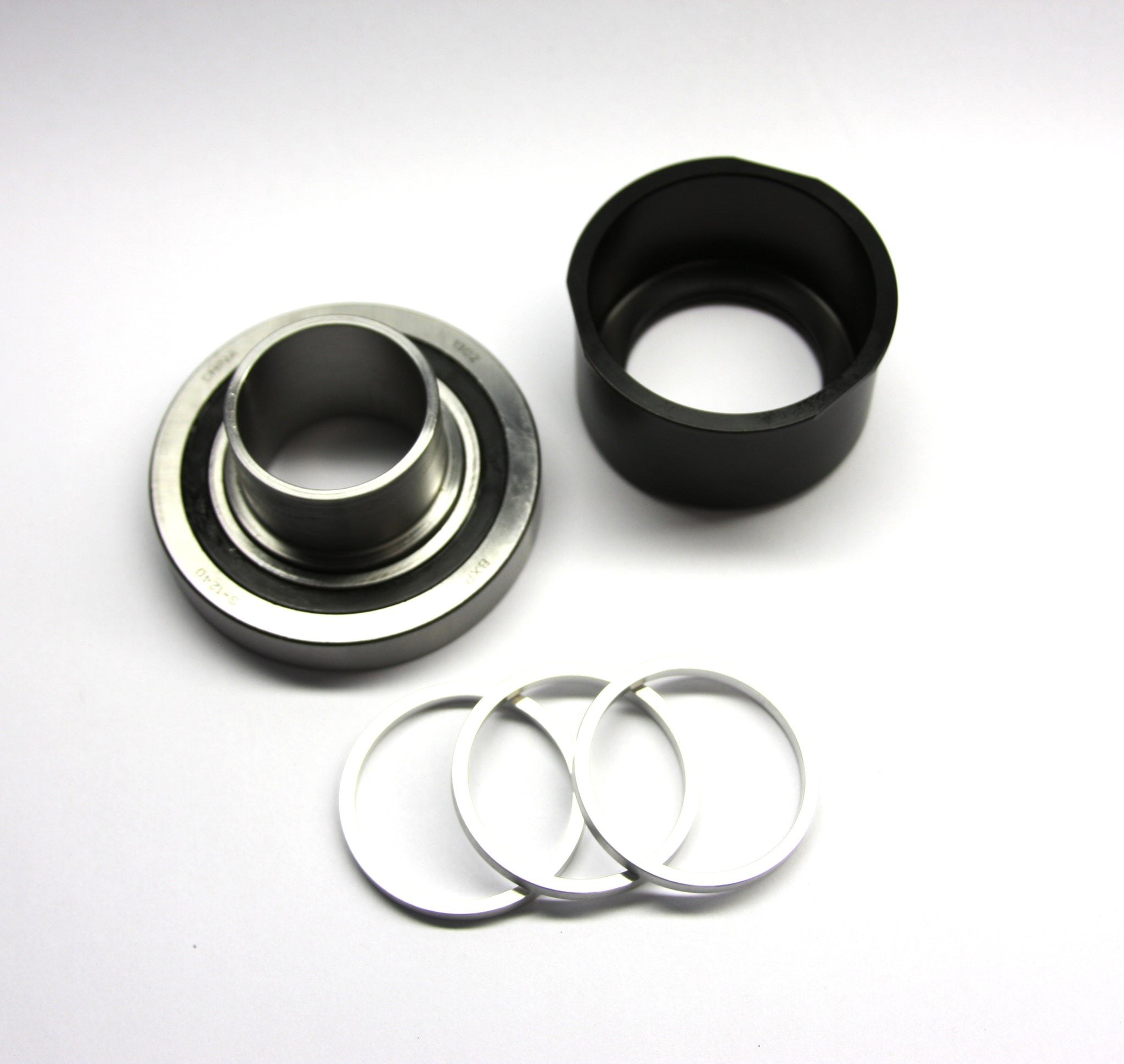

Piston:Hydraulic Bearing:Adjustable:1300 Series: Short Stack Height
McLeod Racing adjustable height pistons help maintain proper mechanical linkage geometry. Each of their offered selections presents three variable height locations--and they utilize angular contact, constant-running bearings for long life and durability. McLeod adjustable height pistons are exclusive piston replacements for their bolt-on style bearing.
- Replacement bearing parts
Specifications
| Height 0 Spacers |
2.440In. |
| Height 1 Spacers |
2.590In. |
| Height 2 Spacers |
2.740In. |
| Height 3 Spacers |
2.890 |
| Bearing Face O.D. (in.) |
3.000 |
| Bearing Face I.D. (in.) |
1.590 |
| Bearing Thickness |
0.500In. |
Installation
