cp-e Exhale™ Mazda MZR 2.3 DISI Mazdaspeed Tial QR BOV Attachment Kit

Mazdaspeed Tial BOV

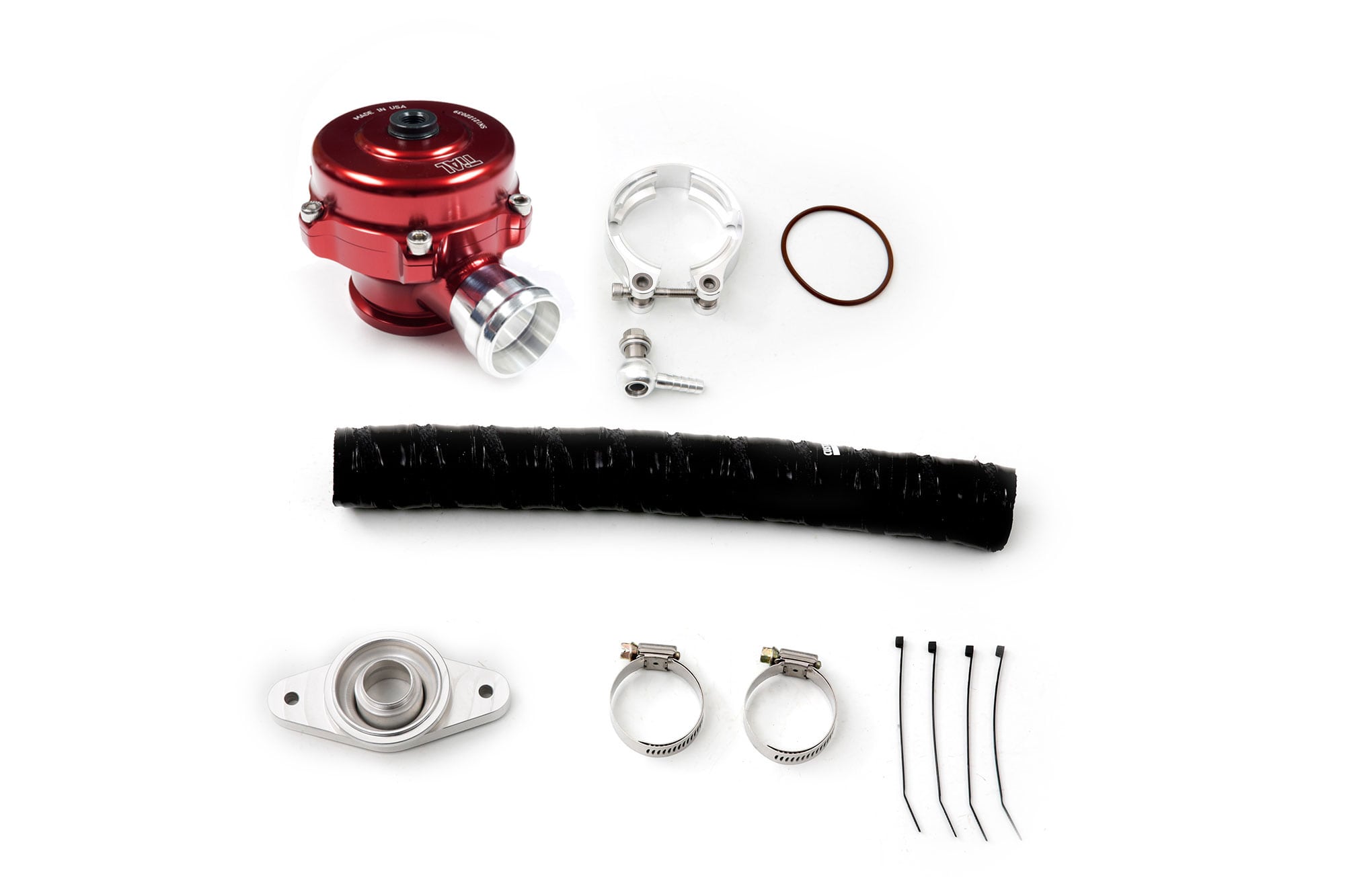

The MZR 2.3 DISI vehicles use a by-pass-valve (BPV) system to recirculate excess pressure from the turbo when the throttle closes. When upgrading from the factory valve – it’s important to maintain this system. Our kit includes everything that you need to get the added durability of a Mazdaspeed Tial BOV, but with the recirculating hardware needed to keep the factory system happy. *Does not include BOV.

Mazdaspeed Tial BOV Features

• CNC Billet aluminum adapter flange
• Tial QR and Q valve compatible
• CNC turned aluminum recirc fitting (VTAapplication REQUIRES tuning)
• cp-e™ HeliHose™ flexible silicone hose for perfect fitment
• Stainless Liner clamps
• Complete Bolt-on application and install

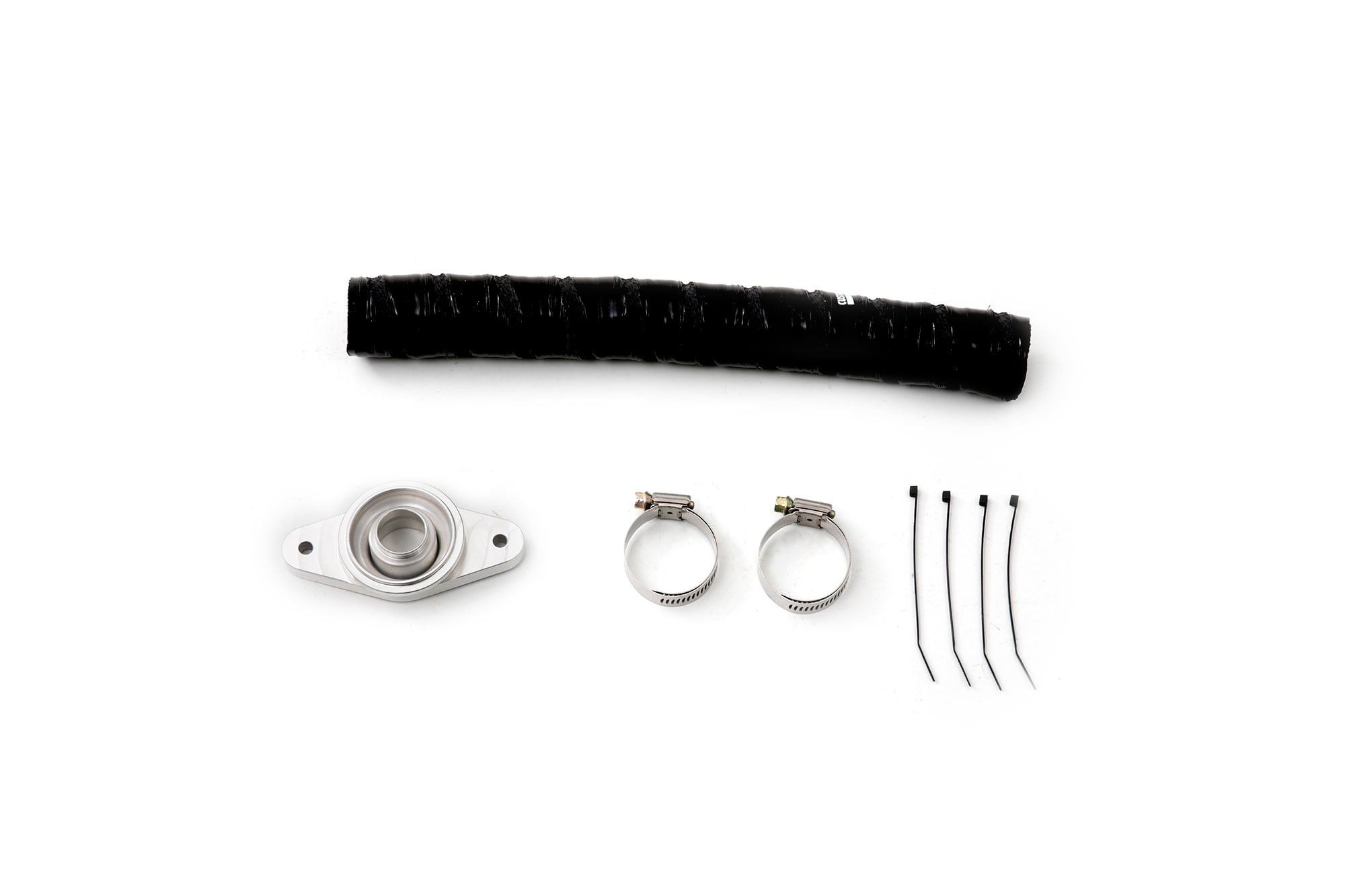

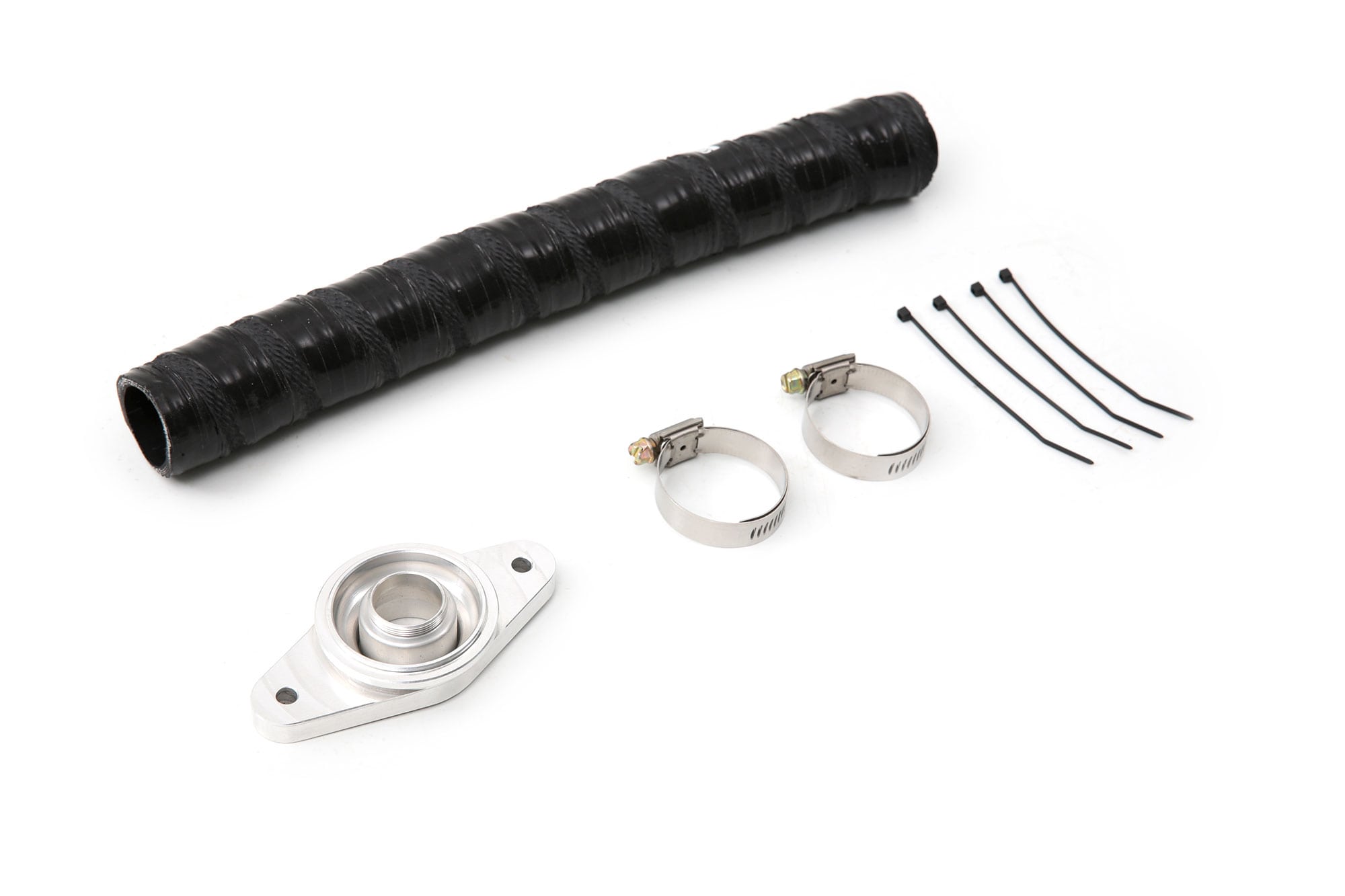

• All hardware and instructions included
• *Does not include BOV

Tial has recently released a recirculating variant of the popular Q valve, one the best valves on the market. The Tial QR valve is a beautiful piece, fully precision CNC machined and turned and CAD designed to flow as much air as possible in a small form factor.

We at cp-e™ designed a kit for the Mazda MZR 2.3l DISI motor to specifically utilize the new Tial QR Valve. The kit comes with everything needed for a completely bolt-on, carefree and easy installation.

Note: This kit will not fit with the stock air box.

Recirculating BOV

Unlike the Tial Q valve, this BOV recirculates. This allows it to work nicely with cars that have a mass air flow sensor that would otherwise run poorly with a vent to atmosphere solution.

HeliHose

The full kit option includes our specially designed HeliHose™ - a flexible silicone hose that routes the vented air back into the inlet pipe, following the OEM design. The supplied Stainless Liner clamps ensure a tight fit without damaging the silicone.

CNC Machined Flange

We designed a low profile CNC machined adapter flange to bolt on to the factory location and interface with the QR valve.

Note: We cannot guarantee fitment with the use of any product that moves the location of the intercooler outlet or throttle body. This includes but is not limited to throttle body spacers, port injection spacers, and aftermarket intake manifolds.
