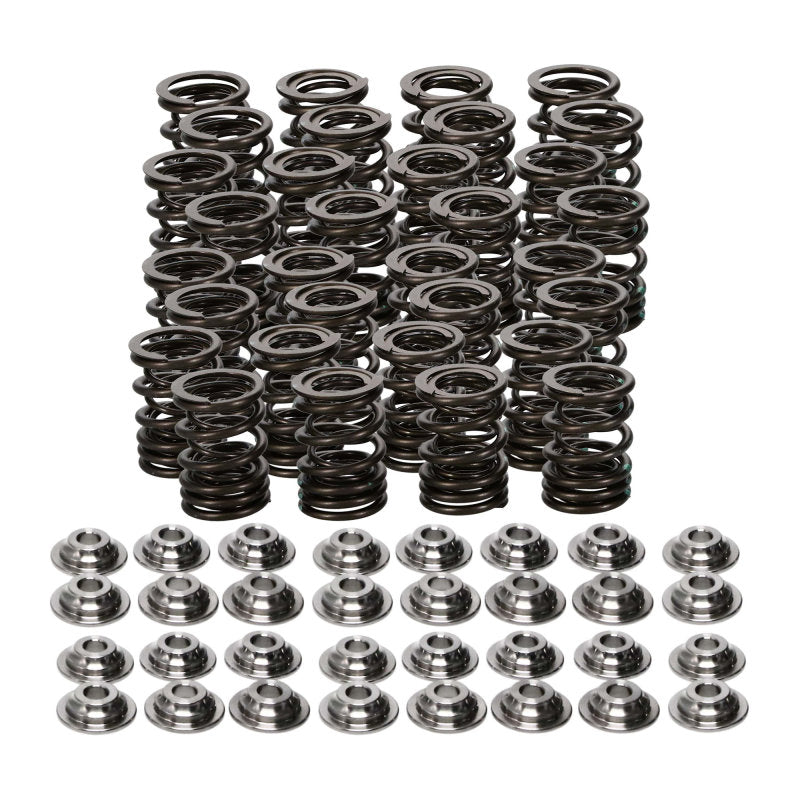

Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.
Features
- Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
- Designed to handle aftermarket camshafts and up to 10,000 RPM
- Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
- Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel
Specs
- Max Lift: 0.480"

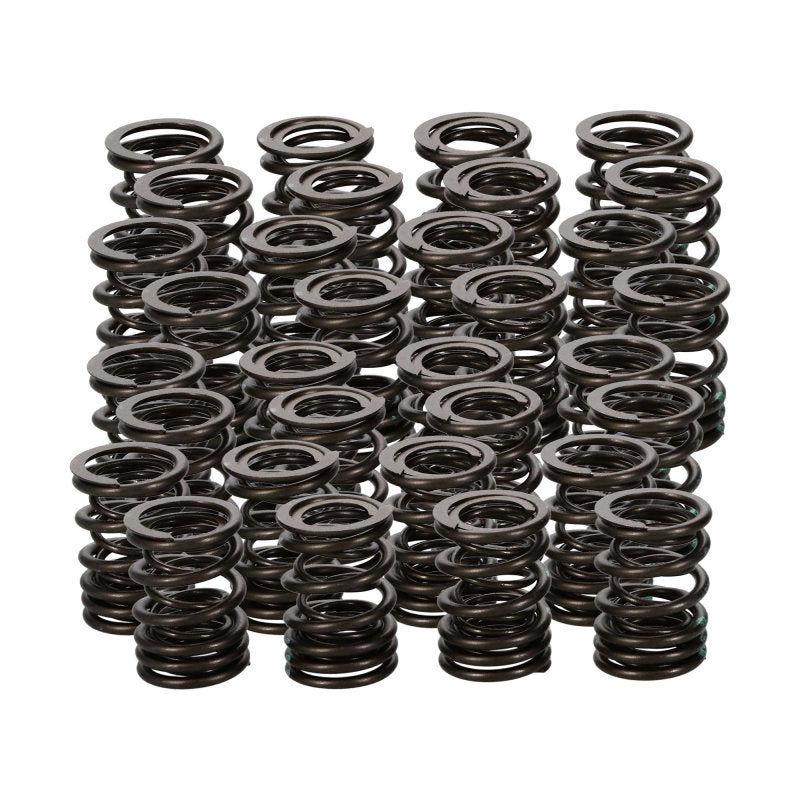

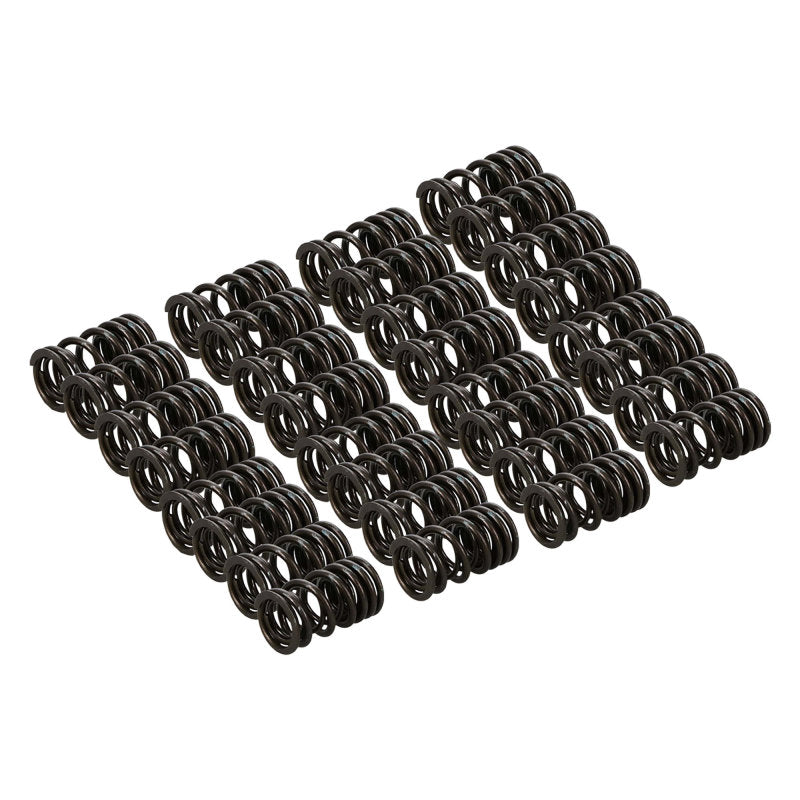

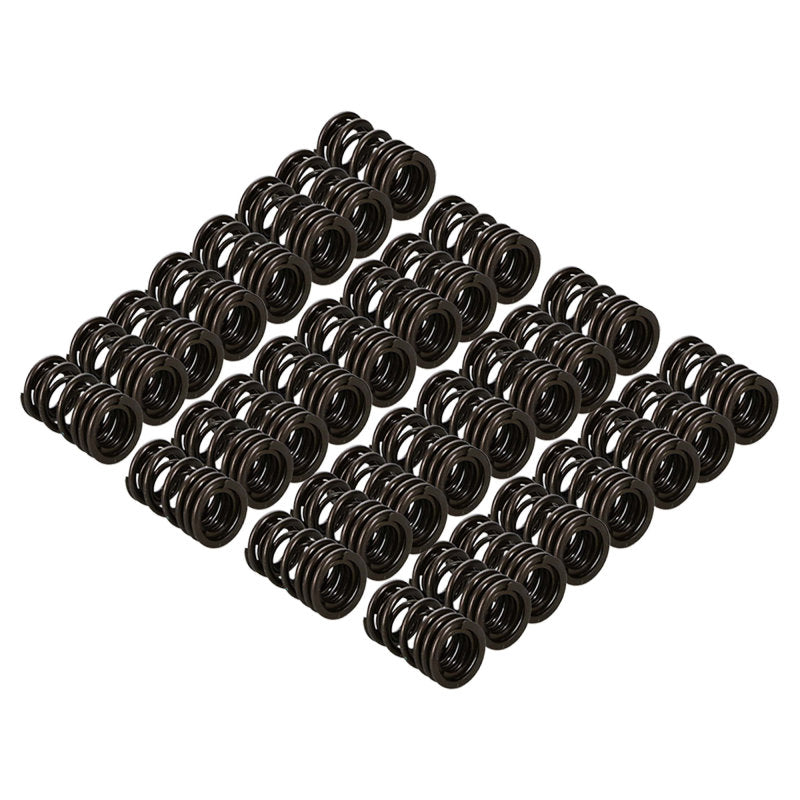

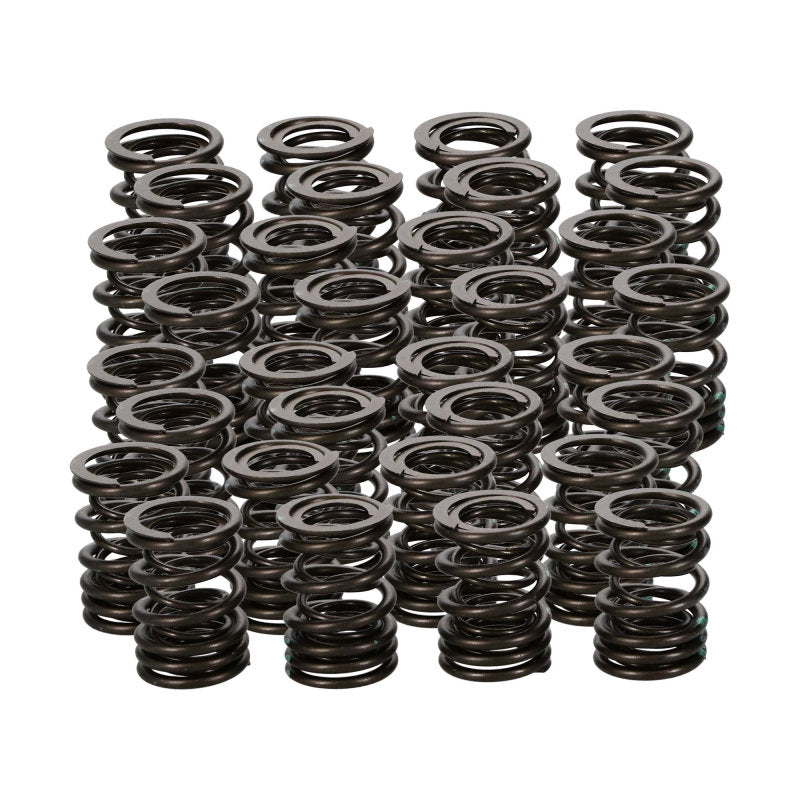

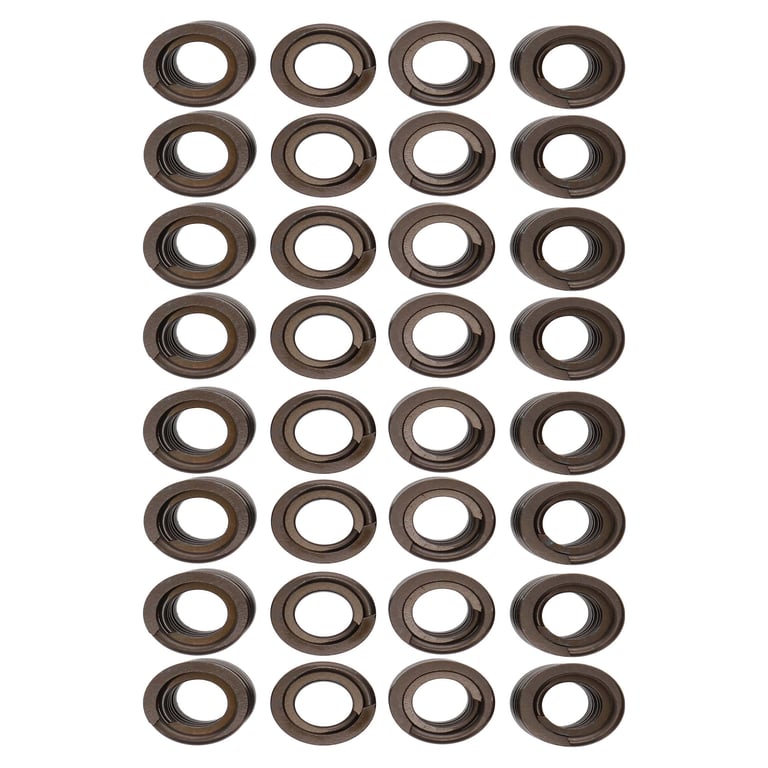

- Spring: 22205-32

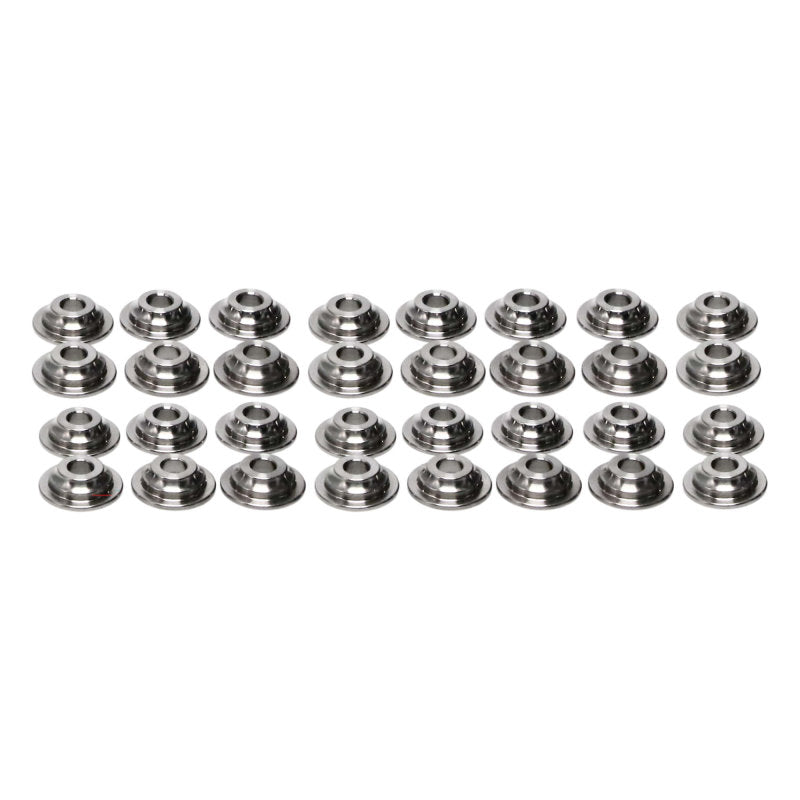

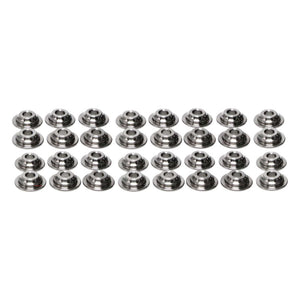

- Titanium Retainer: 23205-32
- Manley Sport Compatct Valve Spring and Retainer Kit
- Stem Diameter: 5.50
- Valve Stem Diameter: 5.50
- Product Type: Valve Spring Kit
- Valve Spring Outer Diameter: 0.990
- Valve Spring Inner Diameter: 0.710
- Valve Spring Quantity: 32
- Valve Lift - Maximum: 0.480
- Installed Pressure and Height: 75 @ 1.450
- Open Pressure and Height: 205 @ 0.970
- Valve Lift - Stock: 0.430
- Valve Spring Rate: 265
- Valve Spring Coil Bind Height: 0.920
- Valve Spring Retainer Step Height: 0.080
- Valve Lock Angle: 6
- Industry: Automotive
- Out of Stock Message: Call for Availability
- Title: Manley Valve Spring & Retainer Kit - Toyota Tundra 5.7L 3UR-FE (Uses factory spring seat) - Valve Locks NOT Included
- Prop 65 Yes/No: Yes
- Prop 65 (C, R or CR): CR
- Prop 65 - Short Label: Prop 65 Warning Label.JPG
- Engine Type: ICE
