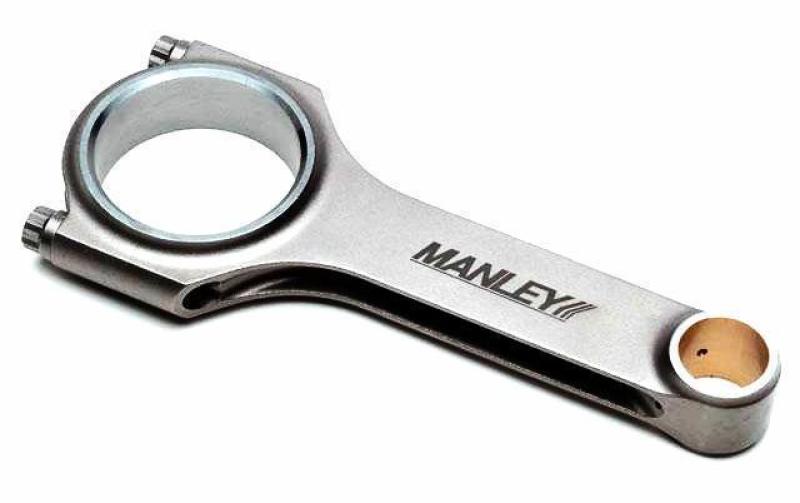

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.
Features
- Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
- Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
- Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
- Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Specs
- Center To Center Length: 5.137 in
- Big End Bore: 2.165 in
- Pin Bore: 0.9063 in. (23mm Pin)
- 3/8" ARP 2000
- Approx. HP Rating: 950
- Manley Connecting Rod, ROD-SUBARU EJ 18/20/22 H/T+
- Product Market: Sport Compact
- Average Gram Weight: 575
- Big End Bore: 2.165
- Center To Center Length: 5.137
- Journal Size: Stock
- Connecting Rod Journal Diameter: Stock
- Length: Stock
- Pin End Bore: 0.9063
- Wrist Pin Diameter: 0.9055
- Connecting Rod Series: H-Beam
- Connecting Rod Sub-Series: H-Tuff
- Product Type: Engine Connecting Rod
- Rod Quantity: 1
- Rod Bolt Material: ARP 625+
- Connecting Rod Type: H-Beam
- Connecting Rod Material: 4340
- Industry: Automotive
- Out of Stock Message: Call for Availability
- Prop 65 Yes/No: Yes
