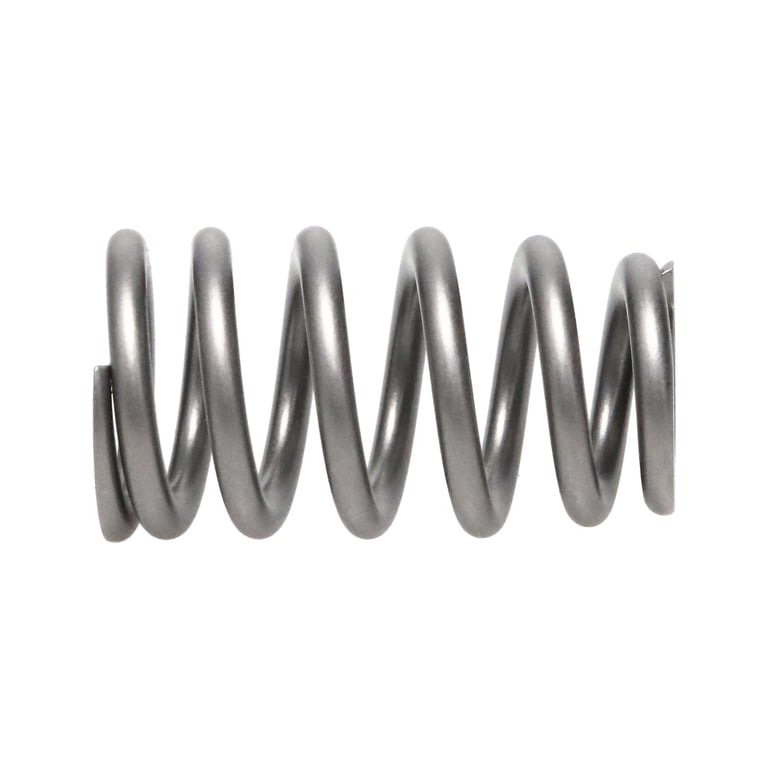

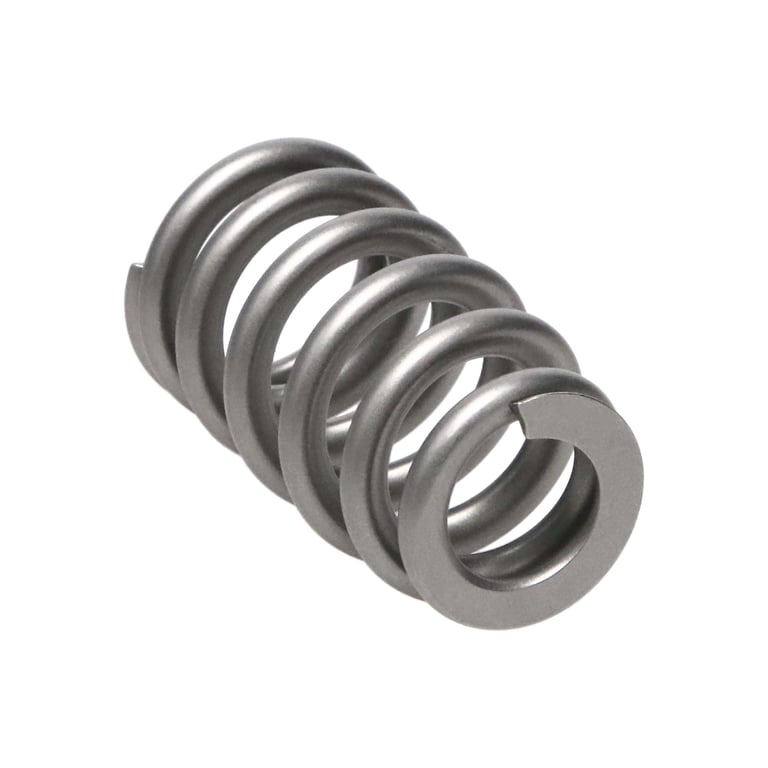

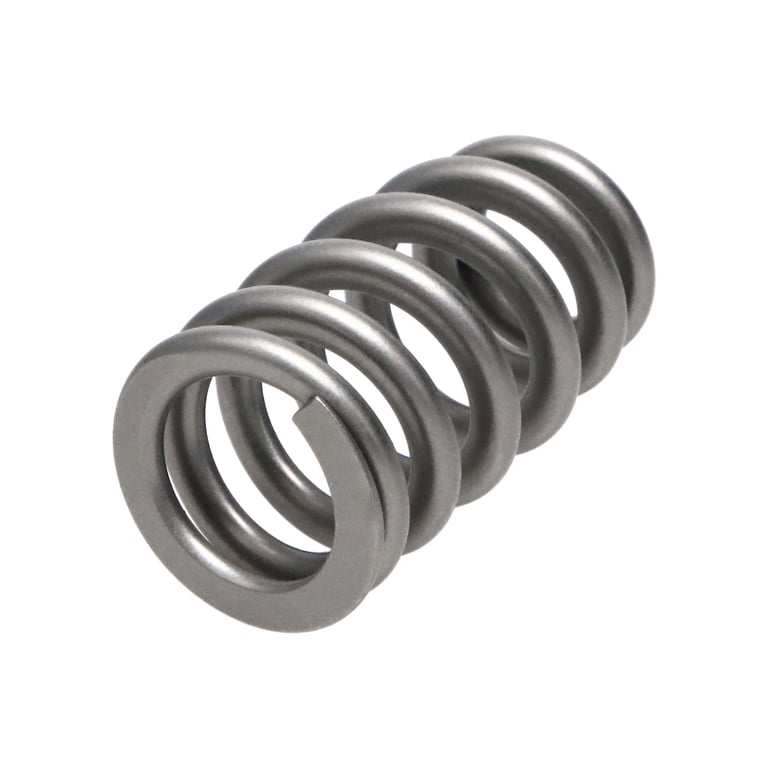

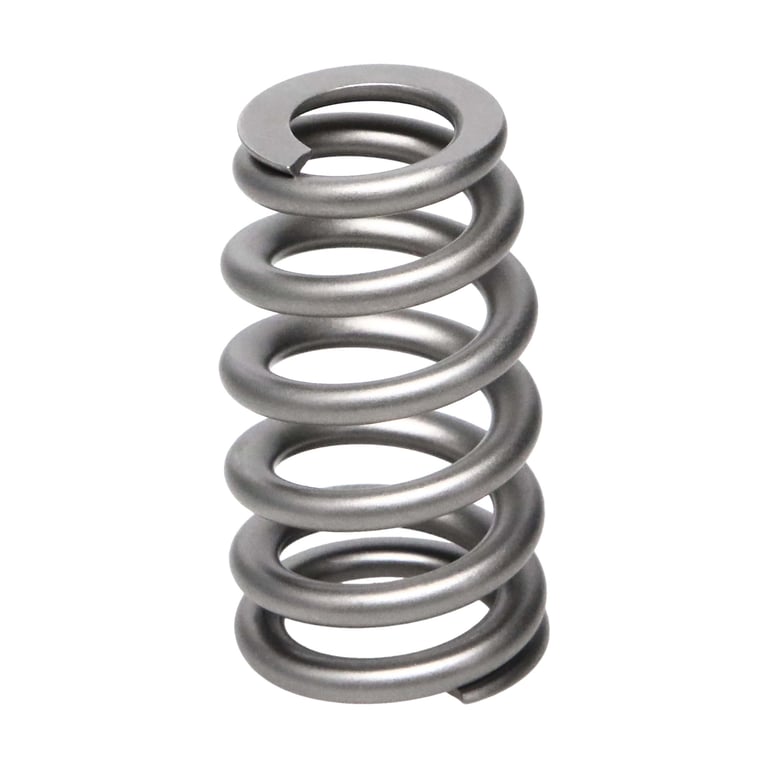

Manley Springs Single Hemi - 221431-16

From drag strips to short track and endurance circuits, the Manley NexTek® series is engineered for serious racers. NexTek® springs resist pressure loss and valve-train degradation even in the most demanding race conditions. That means more consistent spring force deep into a run, reduced valve bounce, and improved overall stability for high-RPM performance. Built to outperform and outlast in real-world competition.

Specs

• Manley Valve Spring, SPRING-1.311 SINGLE HEMI
• Product Market: Domestic
• Average Gram Weight: 72
• Product Type: Engine Valve Spring
• Valve Spring Outer Diameter - Top: 1.076
• Valve Spring Inner Diameter - Top: 0.650
• Valve Spring Outer Diameter - Bottom: 1.311
• Valve Spring Inner Diameter - Bottom: 0.885
• Valve Spring Quantity: 16
• Valve Spring Series: NexTek? Series
• Valve Spring Type: Single Conical Ovate Wire
• Valve Spring Coil Bind Height: 1.100
• Valve Spring Rate: 353
• Valve Lift - Maximum: 0.650
• Installed Pressure and Height: 145 @ 1.811
• Open Pressure and Height: 370 @ 1.161
• Industry: Automotive
• Title: Manley Valve Spring, SPRING-1.311 SINGLE HEMI
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Dodge
• Engine: 5.7L Hemi
