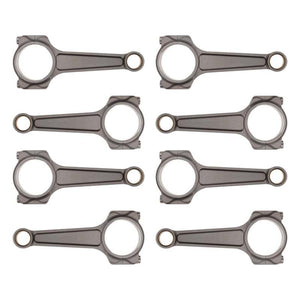

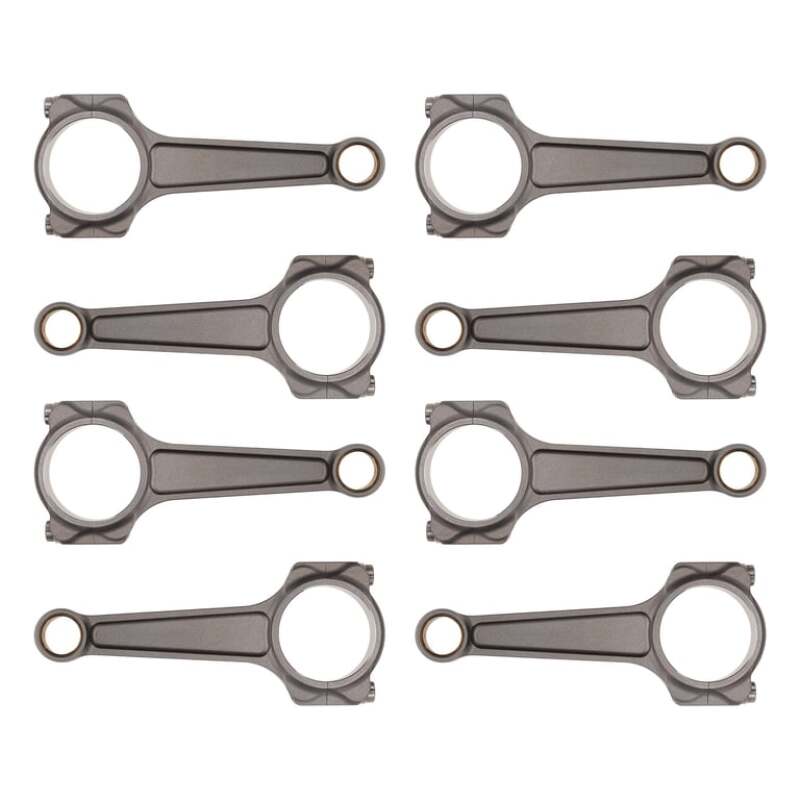

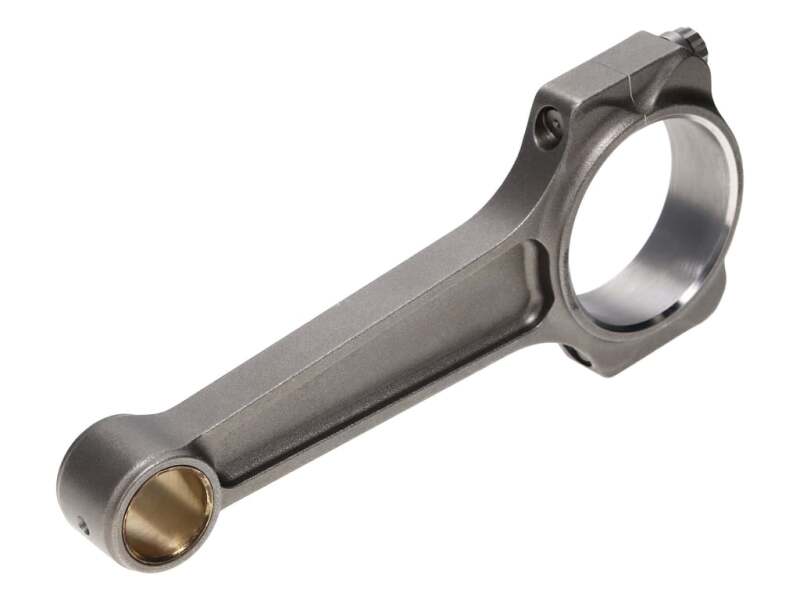

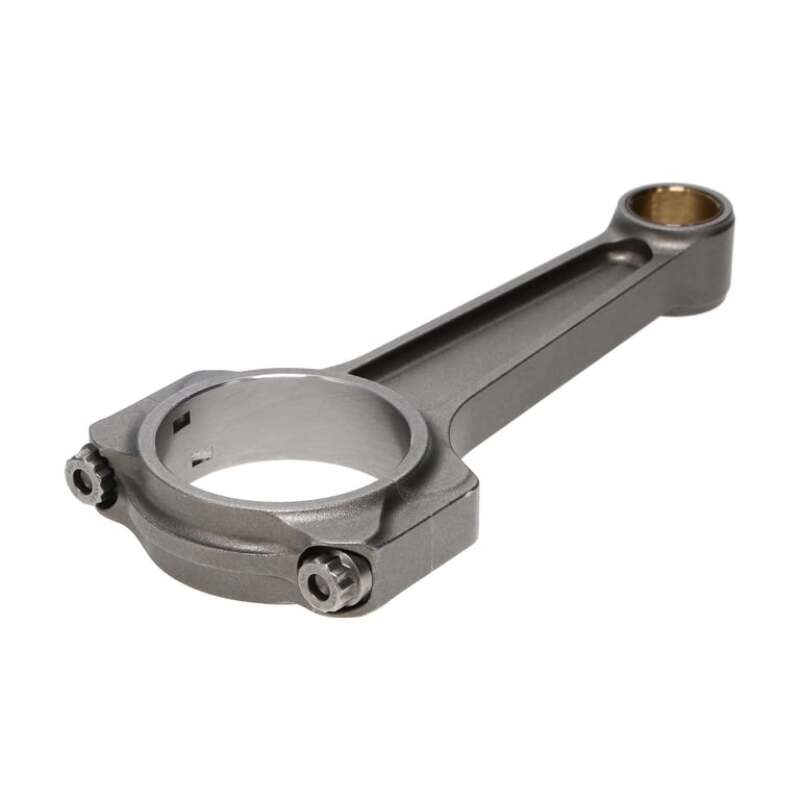

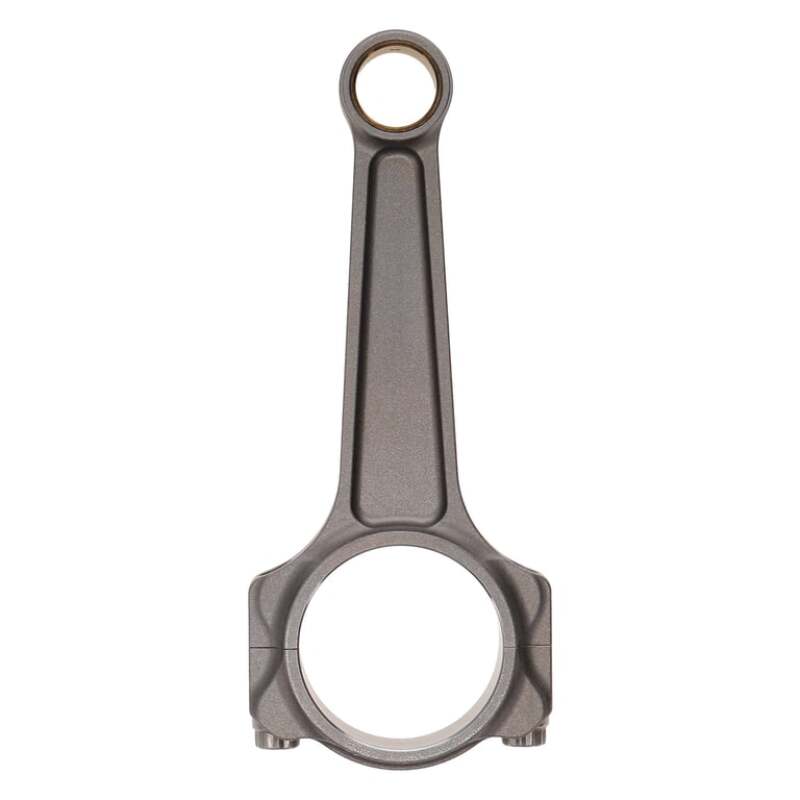

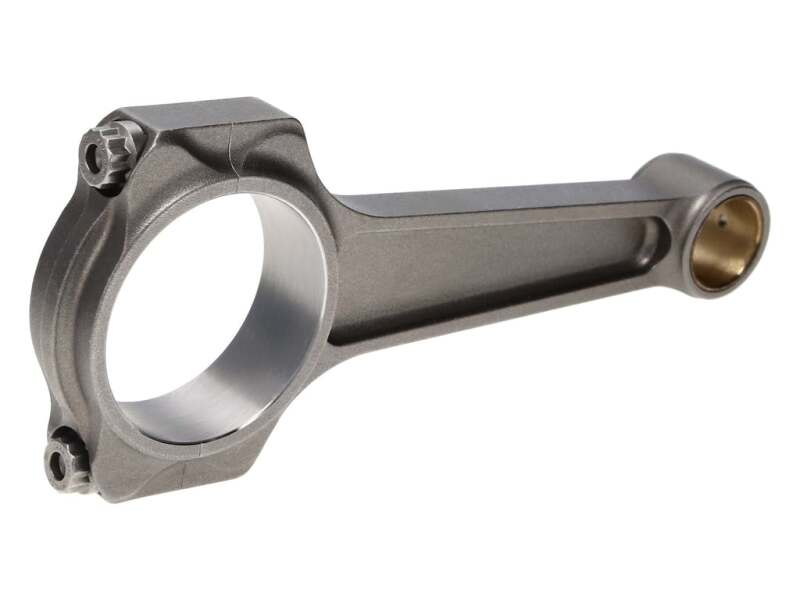

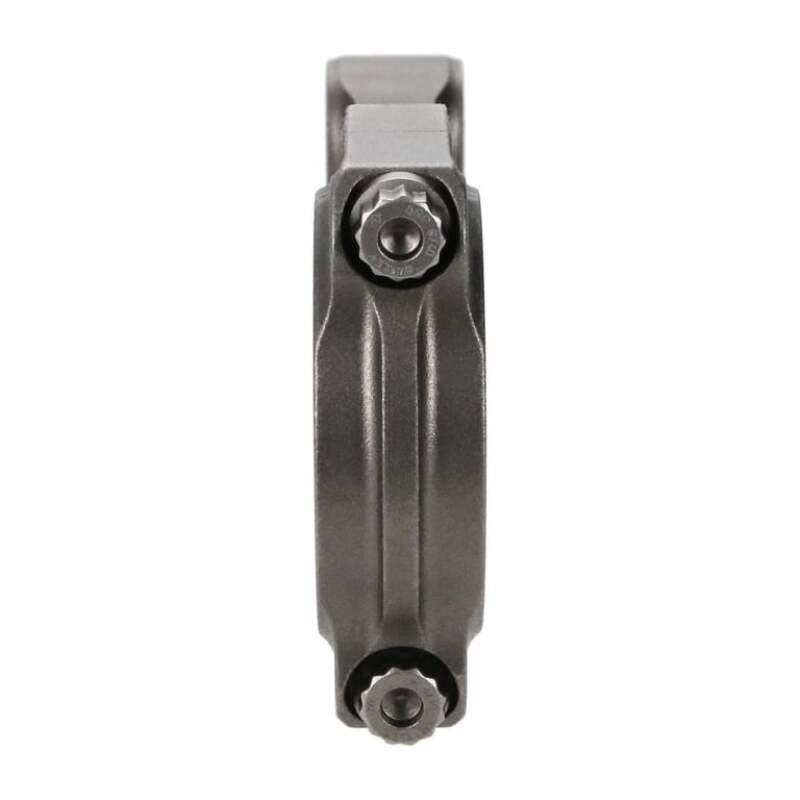

Manley Nissan VK56DE/VK56VD Turbo Tuff I-Beam Connecting Rod - 6.081in Length (Set of 8) - 14444-8

Manley's Turbo Tuff® I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Experience the pinnacle of connecting rod technology with our Turbo Tuff® rods, designed for ultimate performance
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower applications when using power adders
• Flywheel horsepower range: 4 cylinder - 1000+ / 6 cylinder - 1250+ / 8 cylinder - 1500+
• Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications

Specs

• Center To Center Length: 6.081 in
• Big End Bore: 2.2443 in
• Pin Bore: 0.8671 in. (22mm pin)
• 3/8" ARP 2000 Bolts
• Approx. HP Rating: 1700+
• 2004-2016 VK56DE, 2010-2024 VK56VD, 0.866 BEW, .900 PEW, 2.2443 BEH 42050 MODIFIED TO .895 PIN BUSHING
• 42380 DOWEL BUSHING
• 42351 BOLT
• 3/8" ARP 2000. Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications
• Pin End Bore: 0.8671
• Big End Bore: 2.2443
• Emissions Code: 3
• Rod Quantity: 8
• Wrist Pin Diameter: 22
• Connecting Rod Material: 4340
• Rod Bolt Material: ARP 2000
• Connecting Rod Type: I-Beam
• Journal Size: Stock
• Length: Stock
