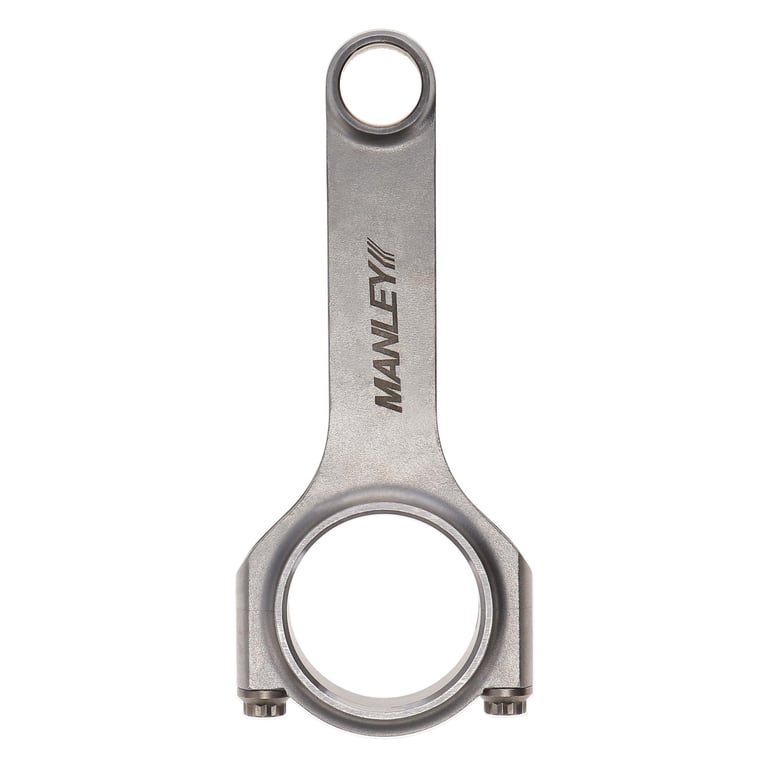

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Features
- Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
- NHRA Legal Certification for some SKUs - Stock and Super Stock
- Versatile Weight Options: Tour Lites, Light, Standard, Heavy
Specs
- Center To Center Length: 6.240 in
- Big End Bore: 2.252 in
- Pin Bore: 0.9281 in. / 0.9457 in. / .9848 in
- 7/16" ARP 2000 Bolts
- Approx. HP Rating: 900+ (Oval) / 1200+ (Drag)
- Manley Connecting Rod, ROD-HEMI 5.7,6.1 6.240 STD WEIGHT
- Product Market: Domestic
- Average Gram Weight: 700
- Big End Bore: 2.252
- Center To Center Length: 6.240
- Journal Size: Stock
- Connecting Rod Journal Diameter: Stock
- Length: Stock
- Pin End Bore: 0.9281
- Wrist Pin Diameter: 0.927
- Additional Info: Pin End Bore options 0.9457 IN or 0.9848 IN
- Connecting Rod Series: Pro Series I-Beam
- Connecting Rod Sub-Series: Standard Weight
- Product Type: Engine Connecting Rod
- Rod Quantity: 1
- Rod Bolt Material: ARP 8740
- Connecting Rod Type: I-Beam
- Pin End Width: 1.000
- Connecting Rod Material: 4340
- Industry: Automotive
