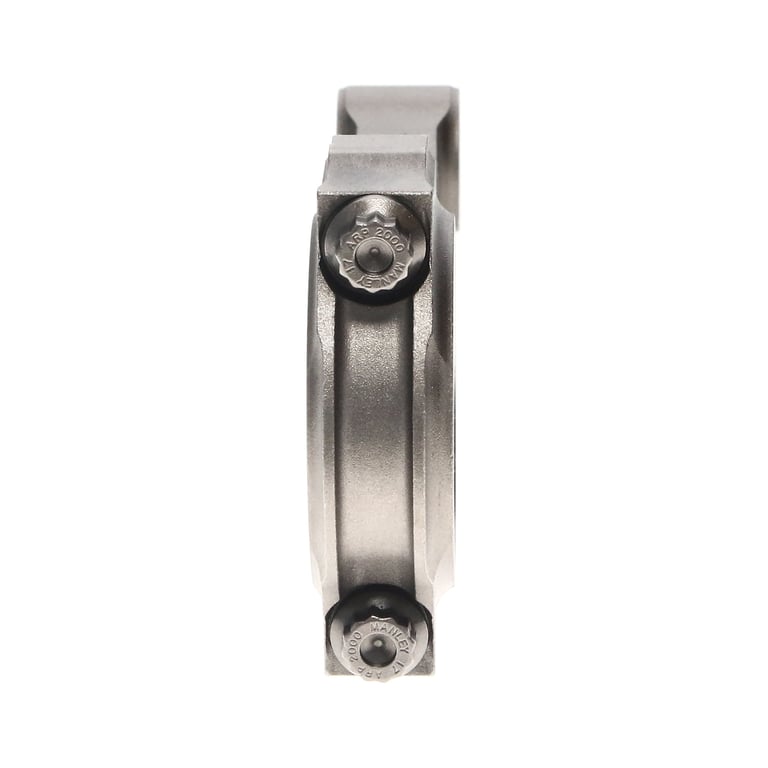

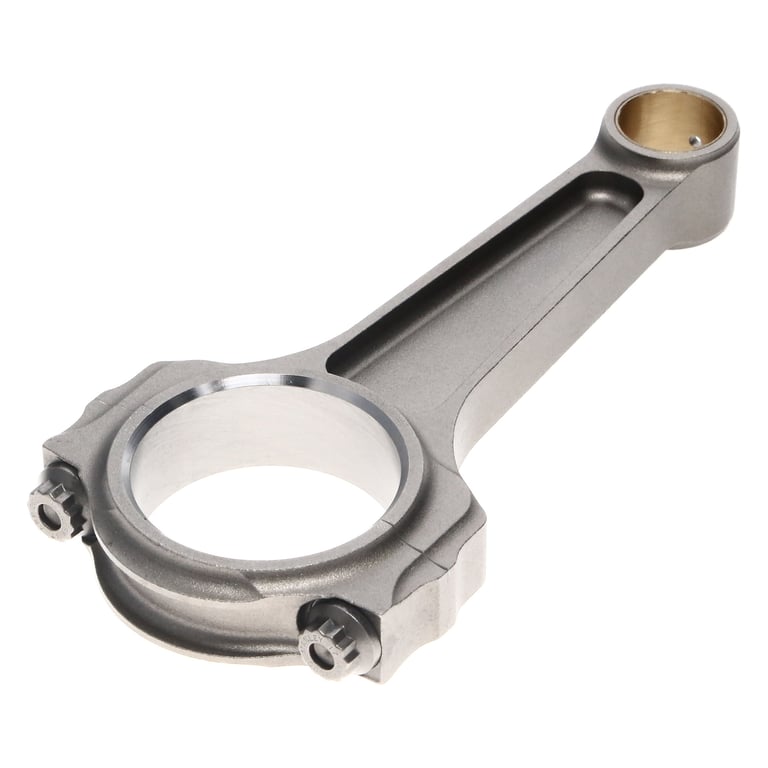

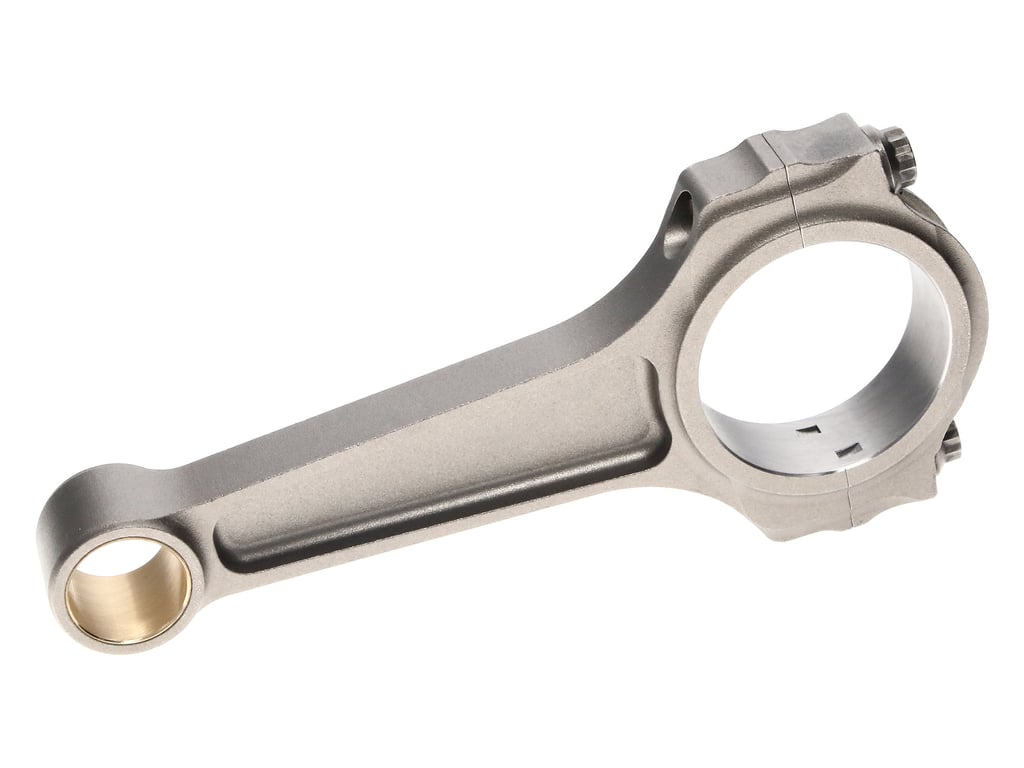

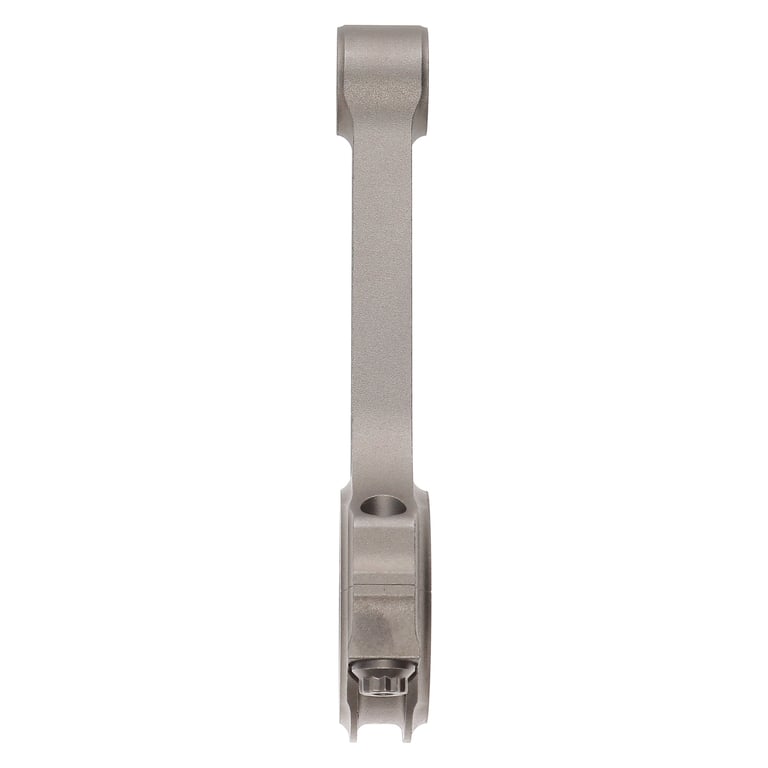

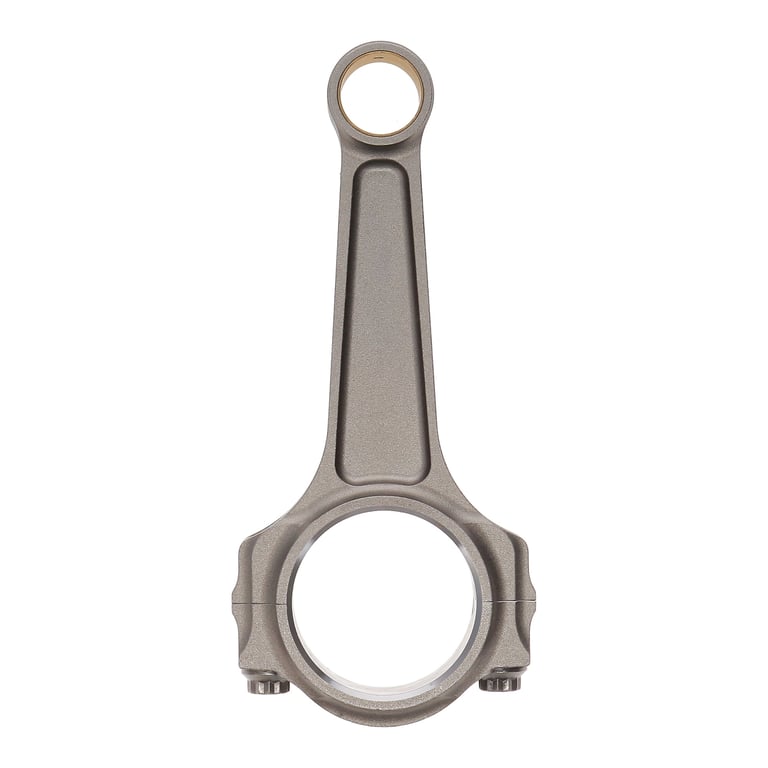

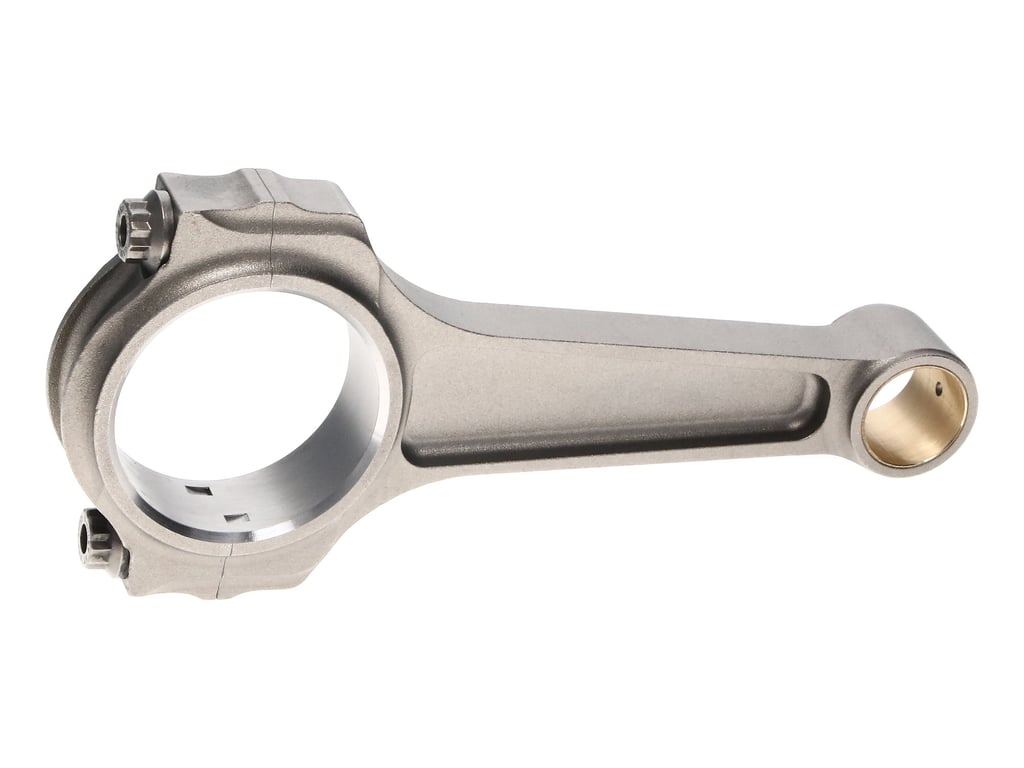

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Features
- Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
- NHRA Legal Certification for some SKUs - Stock and Super Stock
- Versatile Weight Options: Tour Lites, Light, Standard, Heavy
Specs
- Honda / IRL Journal
- Center To Center Length: 6.125 in
- Pin Bore: 0.9281 in
- Big End Bore: 2.008 in. / 2.015 in
- 3/8" ARP 2000 Bolts
- Approx. HP Rating: 600+
- REQUIRES use of one of the following bearings: Federal Mogul 7195CH (Big End Bore: 2.008" / Crank Pin: 1.885"), Clevite CB1456P (BEB: 2.008" / Crank: 1.885"), Clevite CB1663 (BEB: 2.015" / Crank: 1.885"), Clevite CB1664 (BEB: 2.008" / Crank: 1.8500")
- Product Market: Domestic
- Average Gram Weight: 545
- Big End Bore: 2.008
- Center To Center Length: 6.125
- Journal Size: 1.8885
- Connecting Rod Journal Diameter: 1.8885
- Length: .425 longer
- Pin End Bore: 0.9281
- Wrist Pin Diameter: 0.927
- Additional Info: 2.015 IN Big End Bore with CB1663 Bearing
- Connecting Rod Series: Pro Series I-Beam
- Connecting Rod Sub-Series: Tour Lite?
- Product Type: Engine Connecting Rod Set

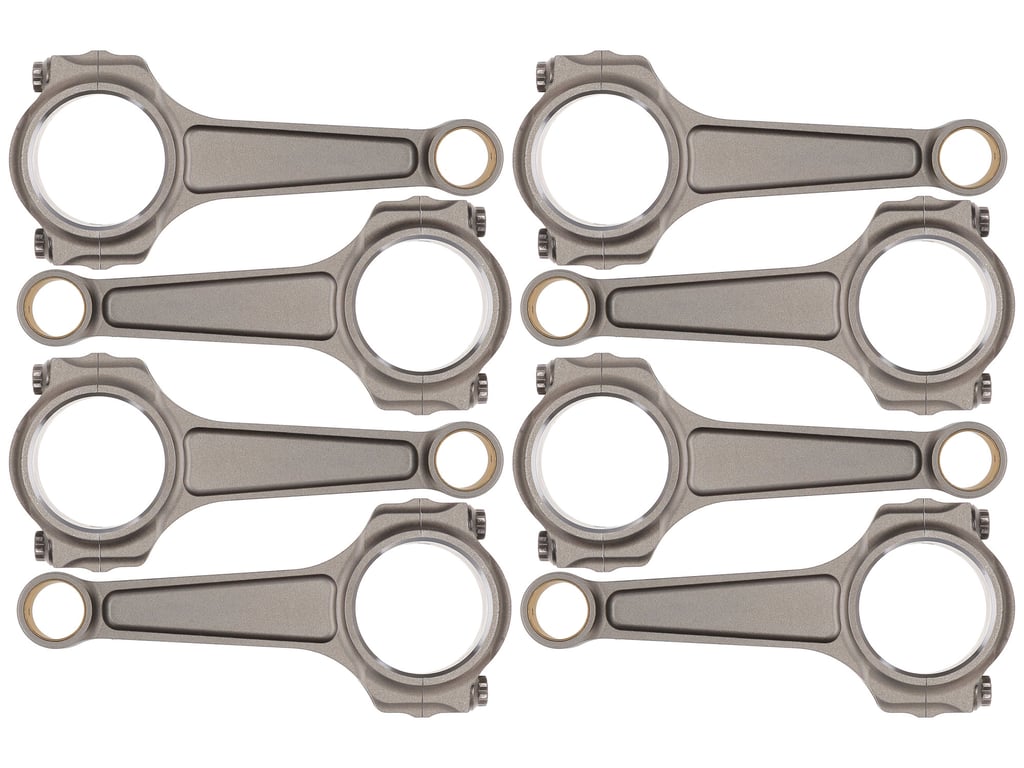

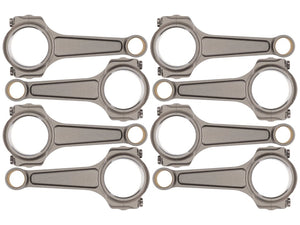

- Rod Quantity: 8
- Rod Bolt Material: ARP 8740
- Connecting Rod Type: I-Beam
- Pin End Width: 1.000
- Connecting Rod Material: 4340
