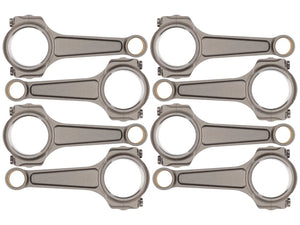

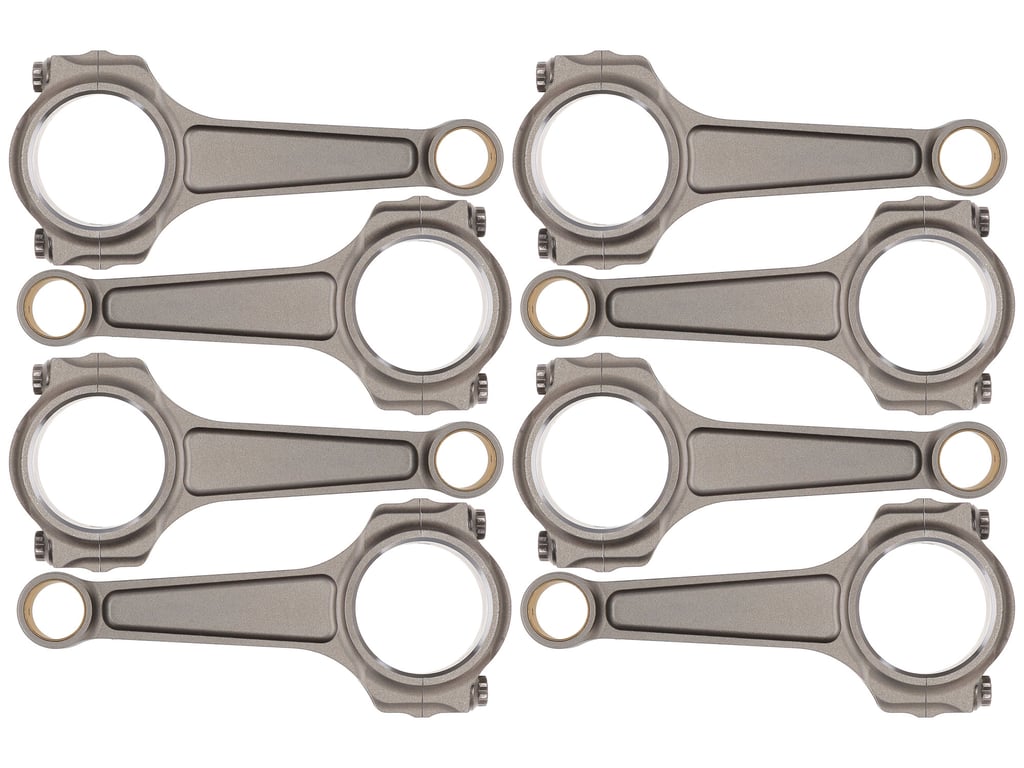

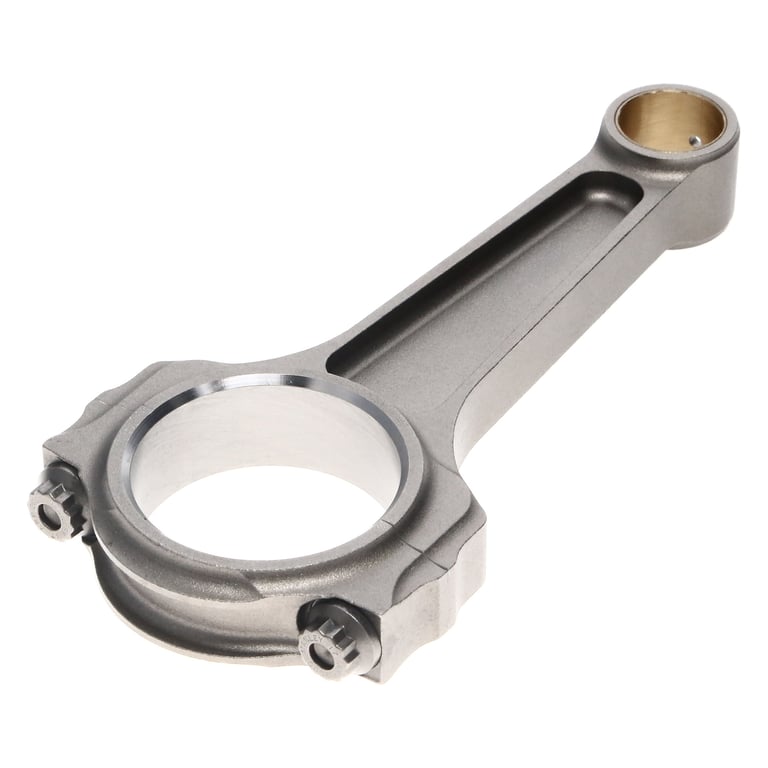

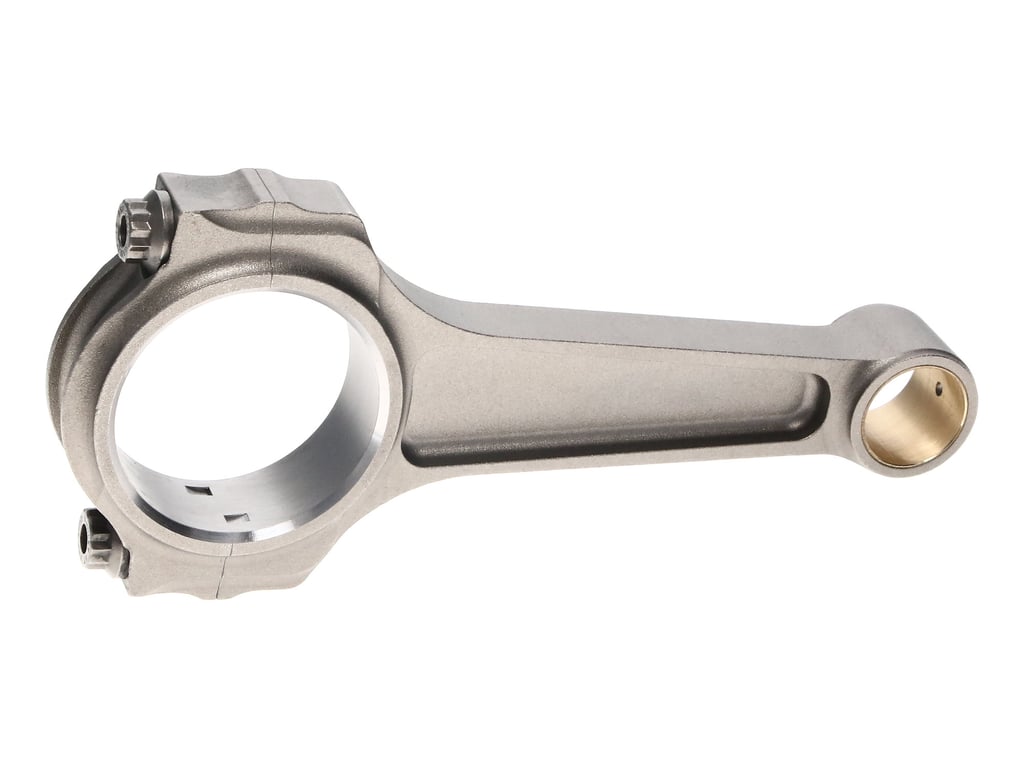

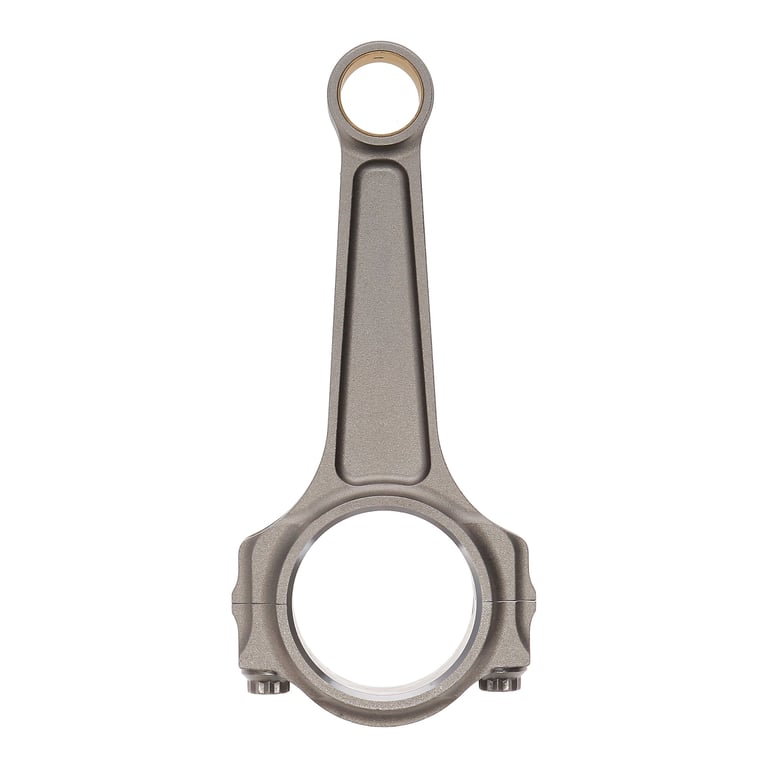

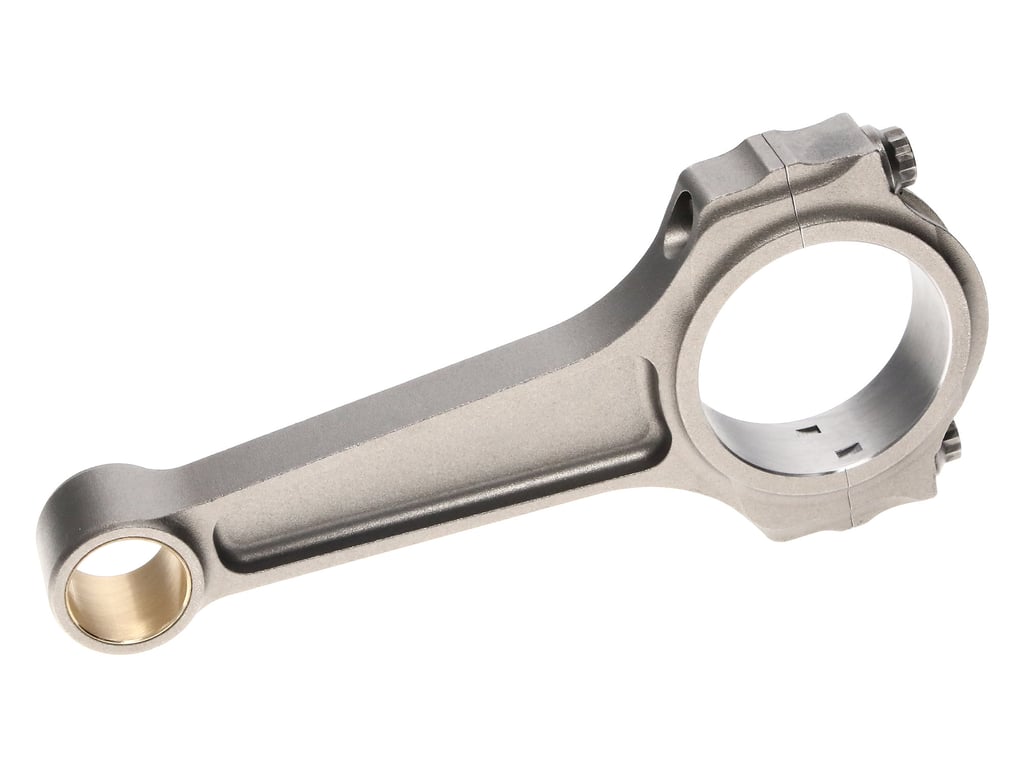

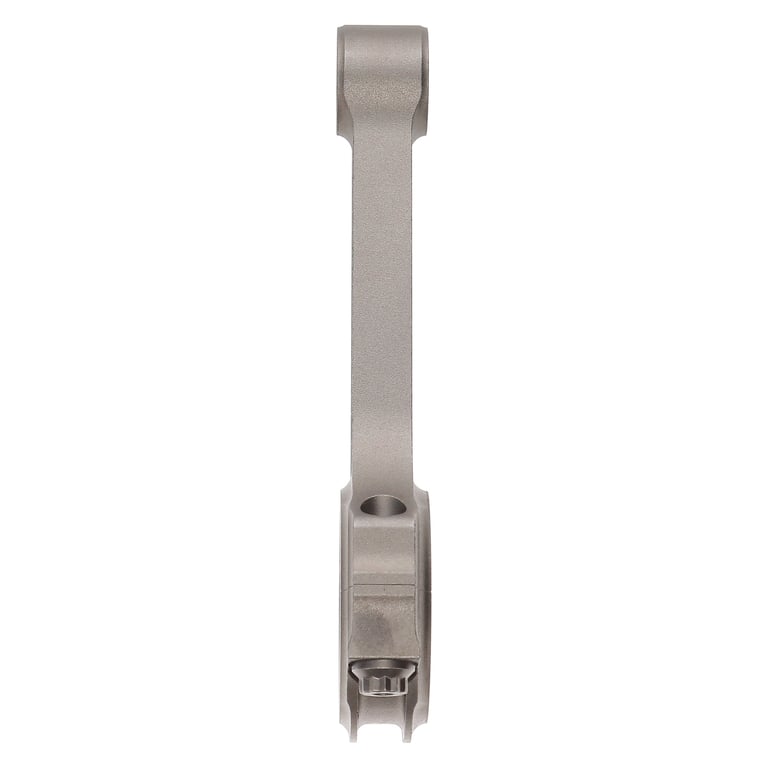

Manley Chevrolet Small Block Tour Lite I-Beam Connecting Rod Set - 6.000in Length - 14344F-8

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock
• Versatile Weight Options: Tour Lites, Light, Standard, Heavy

Specs

• Honda / IRL Journal
• Finished to exact Federal Mogul bearing size
• Length: 6.000 in
• Pin Bore: 0.9281 in
• Big End Bore: 2.008 in. or 2.015 in

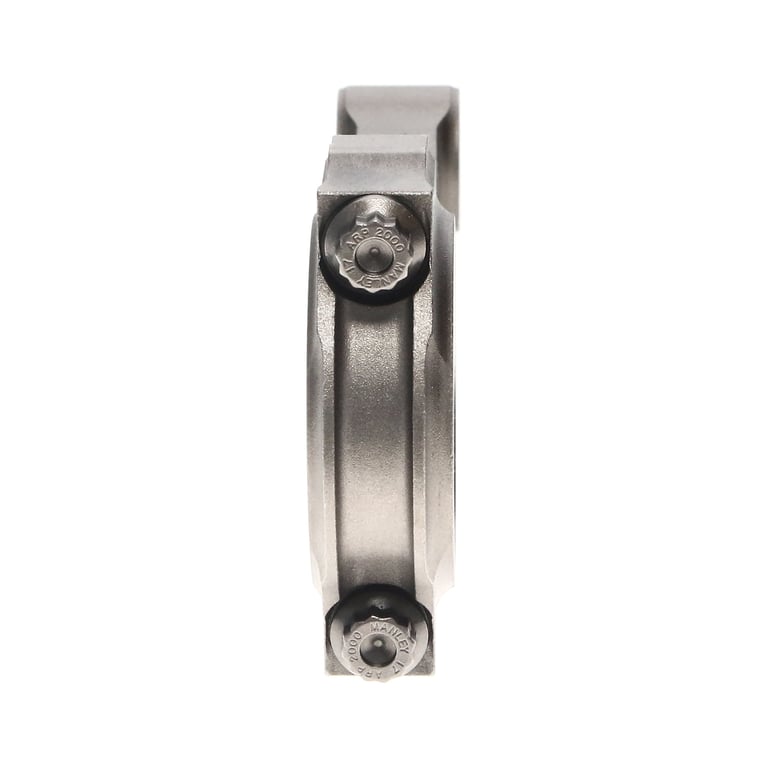

• 3/8" ARP 2000 Bolts
• Approx. HP Rating: 600+
• You MUST specify which Federal Mogul® bearing will be used. To order upgraded fasteners, affix an “R6” for the ARP Custom Age 625+, “RA” for the ARP 3.5 after the rod part number
• Product Market: Domestic
• Average Gram Weight: 540
• Big End Bore: 2.008
• Center To Center Length: 6.000
• Journal Size: 1.8885
• Connecting Rod Journal Diameter: 1.8885
• Length: .300 longer
• Pin End Bore: 0.9281
• Wrist Pin Diameter: 0.927
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: Tour Lite?
• Product Type: Engine Connecting Rod Set
• Rod Quantity: 8
• Rod Bolt Material: ARP 8740
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000
• Connecting Rod Material: 4340
