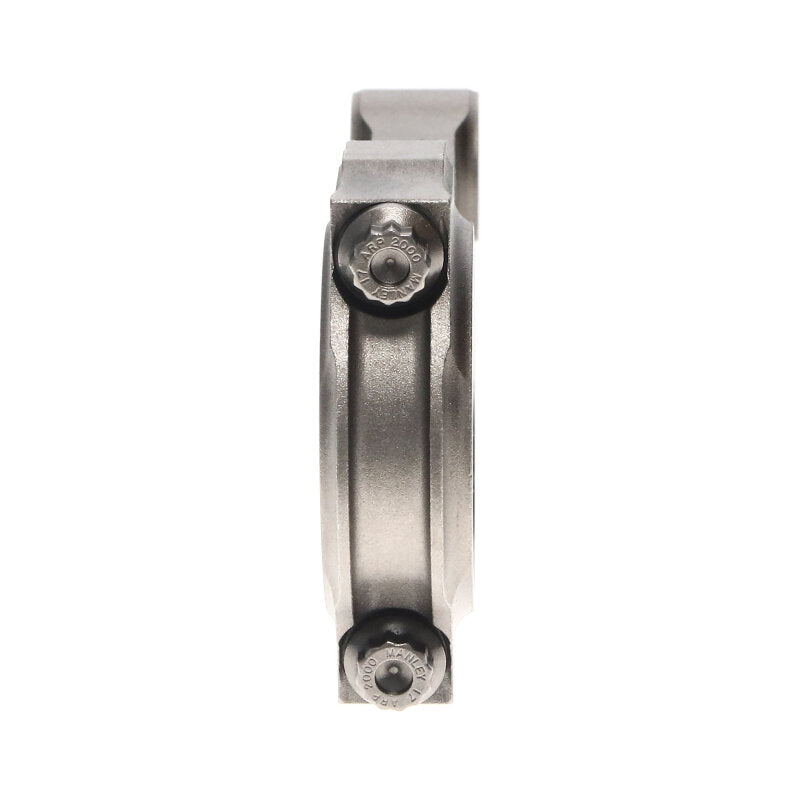

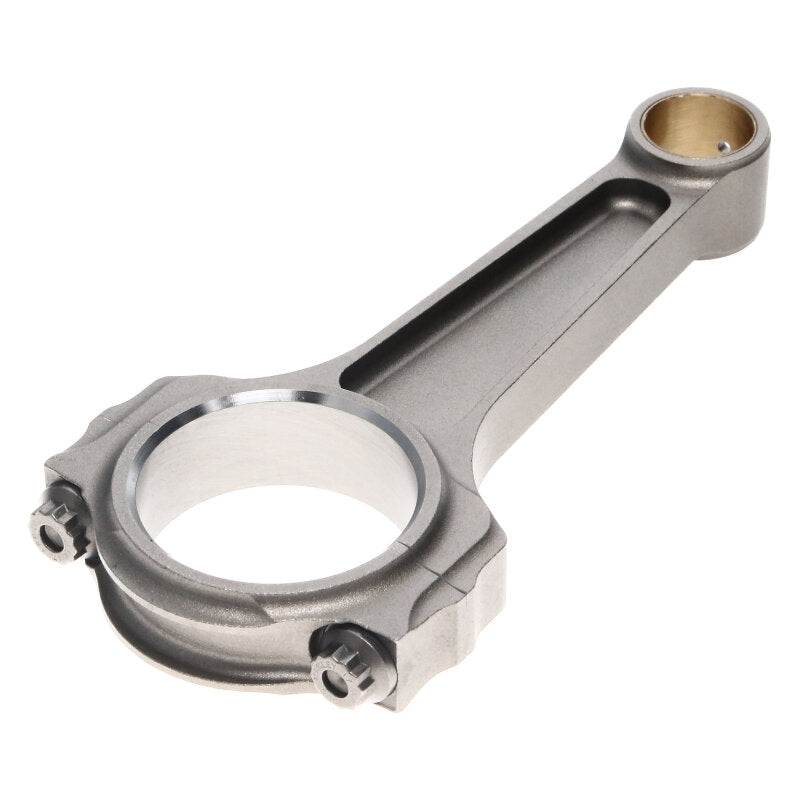

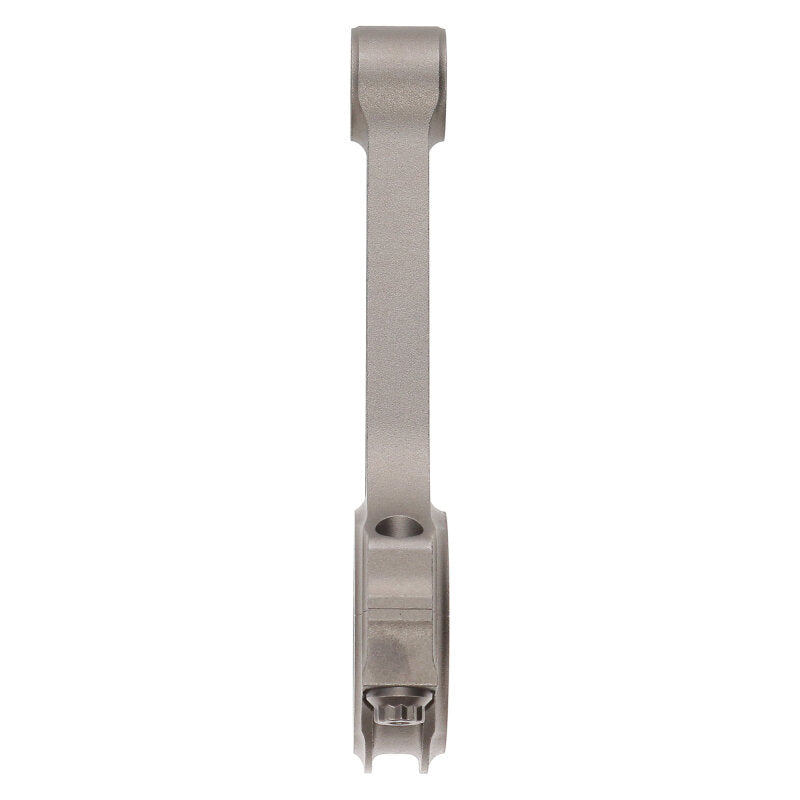

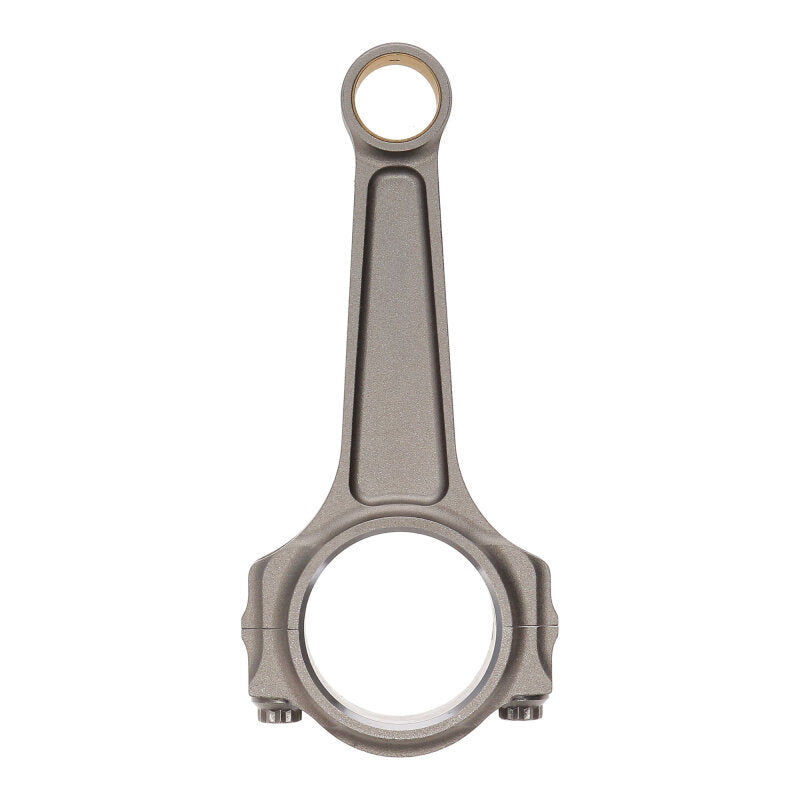

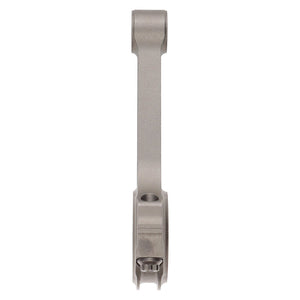

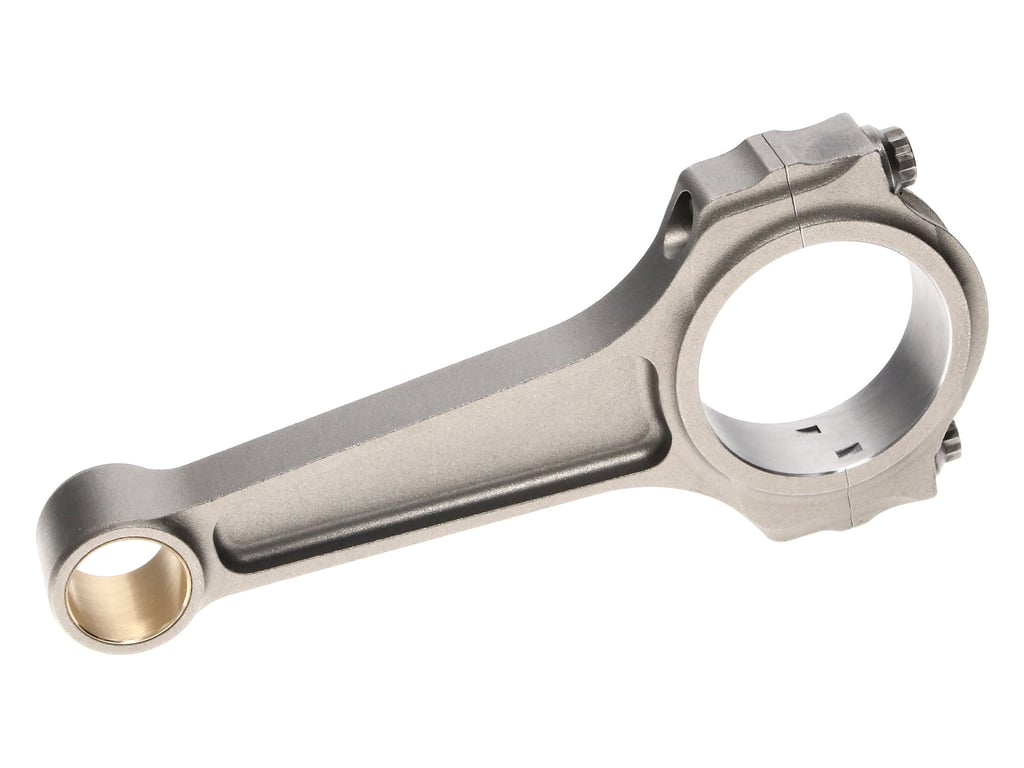

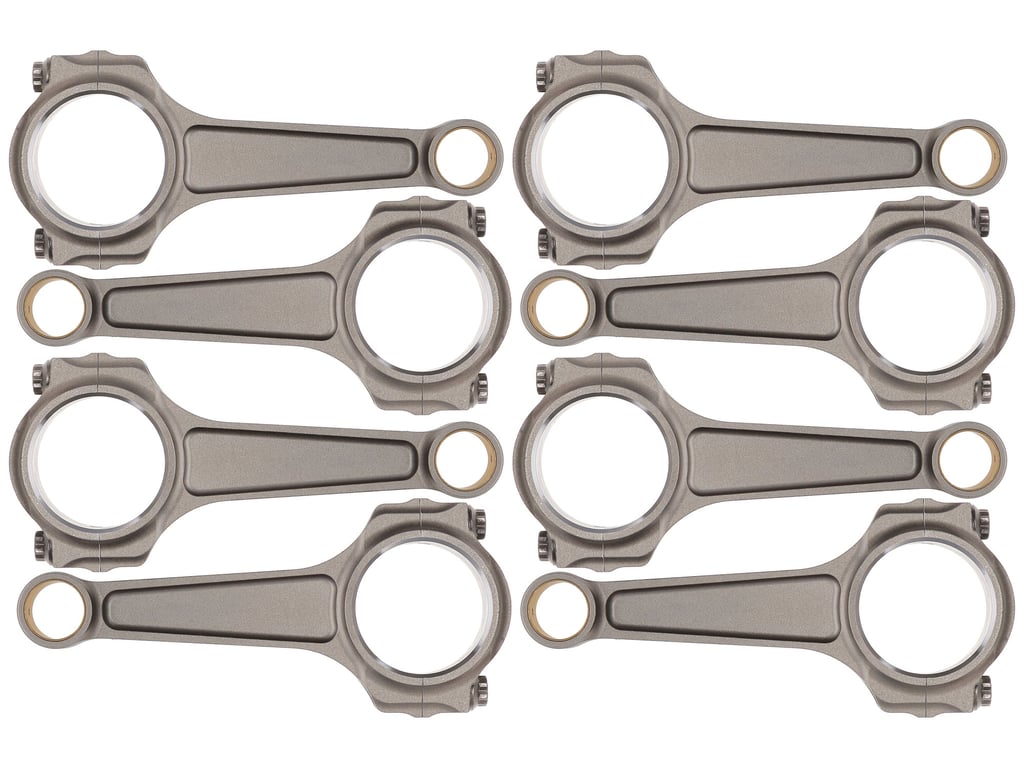

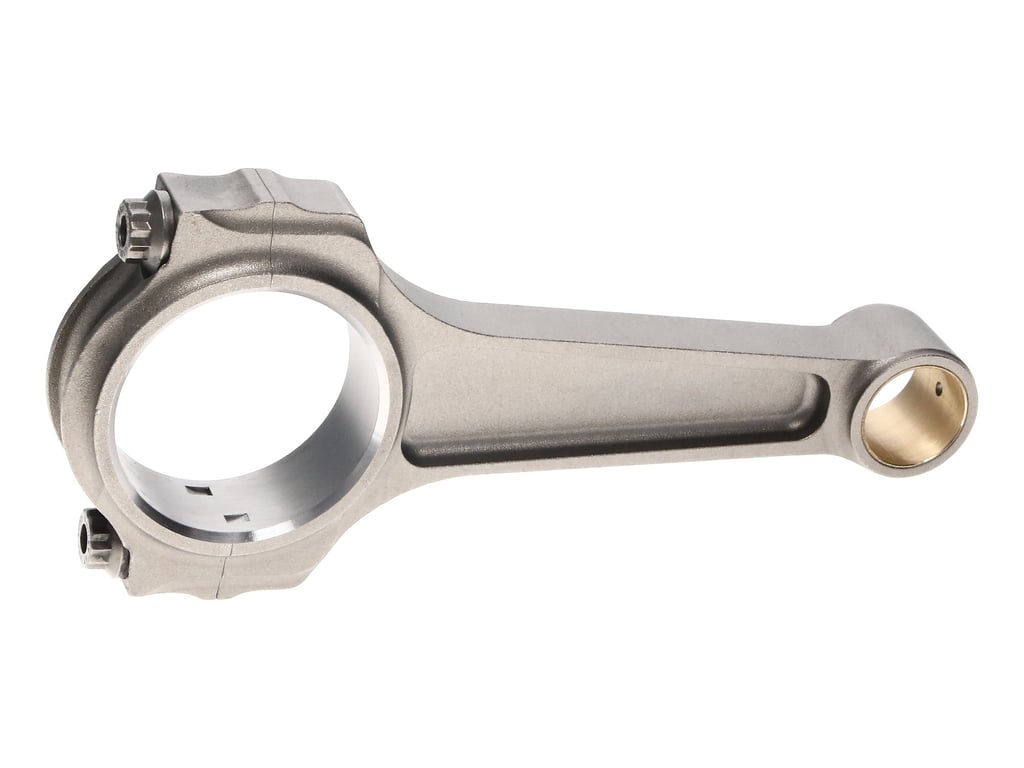

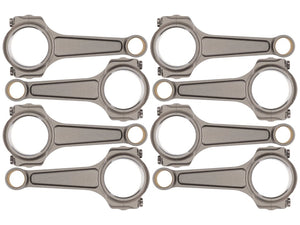

Manley Chevrolet Small Block Tour Lite I-Beam Connecting Rod Set - 5.700in Length - 14340-8

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock
• Versatile Weight Options: Tour Lites, Light, Standard, Heavy

Specs

• Honda / IRL Journal
• Center To Center Length: 5.700 in
• Pin Bore: 0.9281 in
• Big End Bore: 2.008 in. / 2.015 in
• 3/8" ARP 2000 Bolts
• Approx. HP Rating: 600+
• REQUIRES use of one of the following bearings: Federal Mogul 7195CH (Big End Bore: 2.008" / Crank Pin: 1.885"), Clevite CB1456P (BEB: 2.008" / Crank: 1.885"), Clevite CB1663 (BEB: 2.015" / Crank: 1.885"), Clevite CB1664 (BEB: 2.008" / Crank: 1.8500")
• Wrist Pin Diameter: 0.866
• Additional Info: 0.927 IN Wrist Pin Diameter option
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: Tour Lite?
• Product Type: Engine Connecting Rod Set

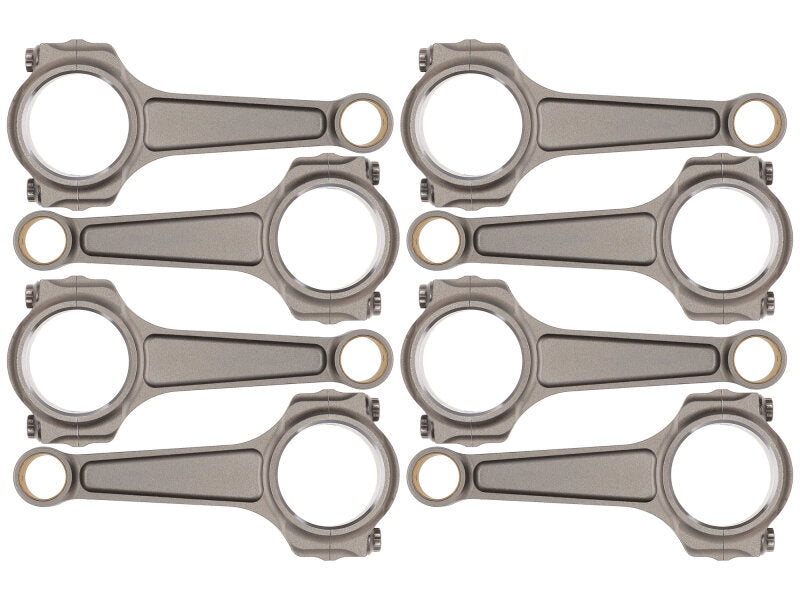

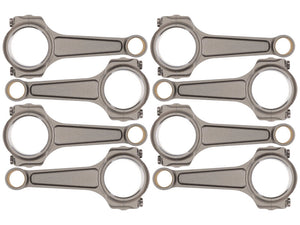

• Rod Quantity: 8
• Rod Bolt Material: ARP 8740
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Chevrolet
• Engine: Small Block
