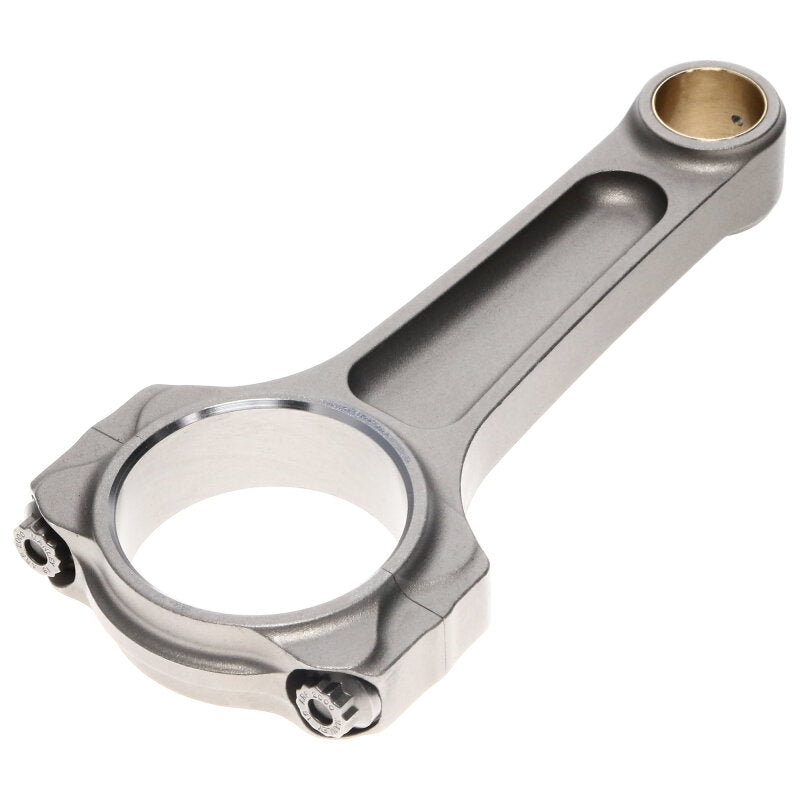

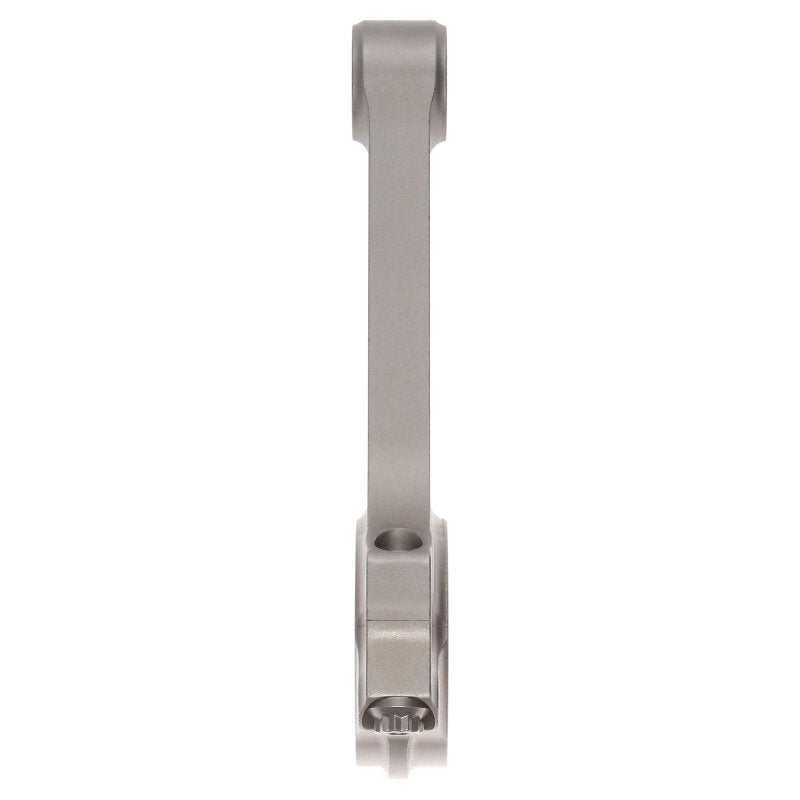

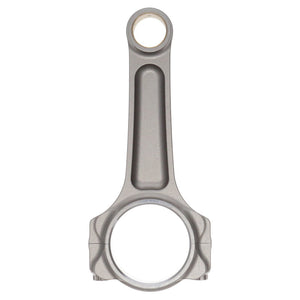

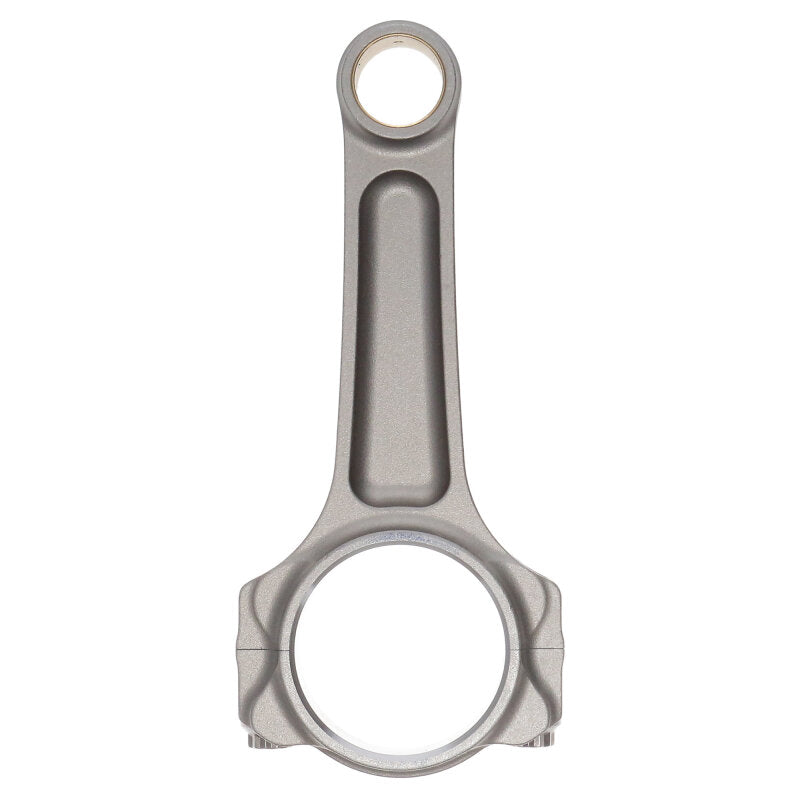

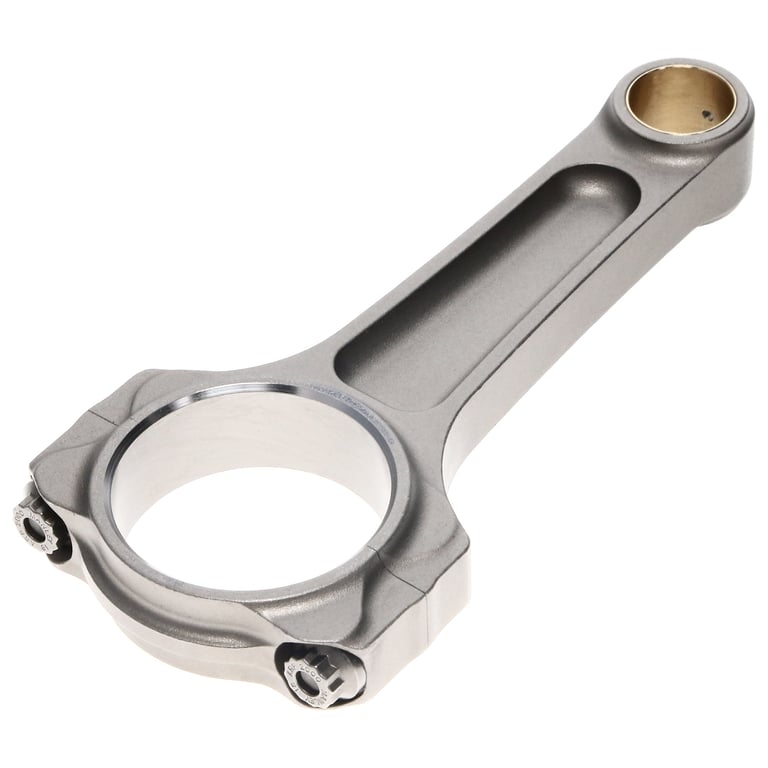

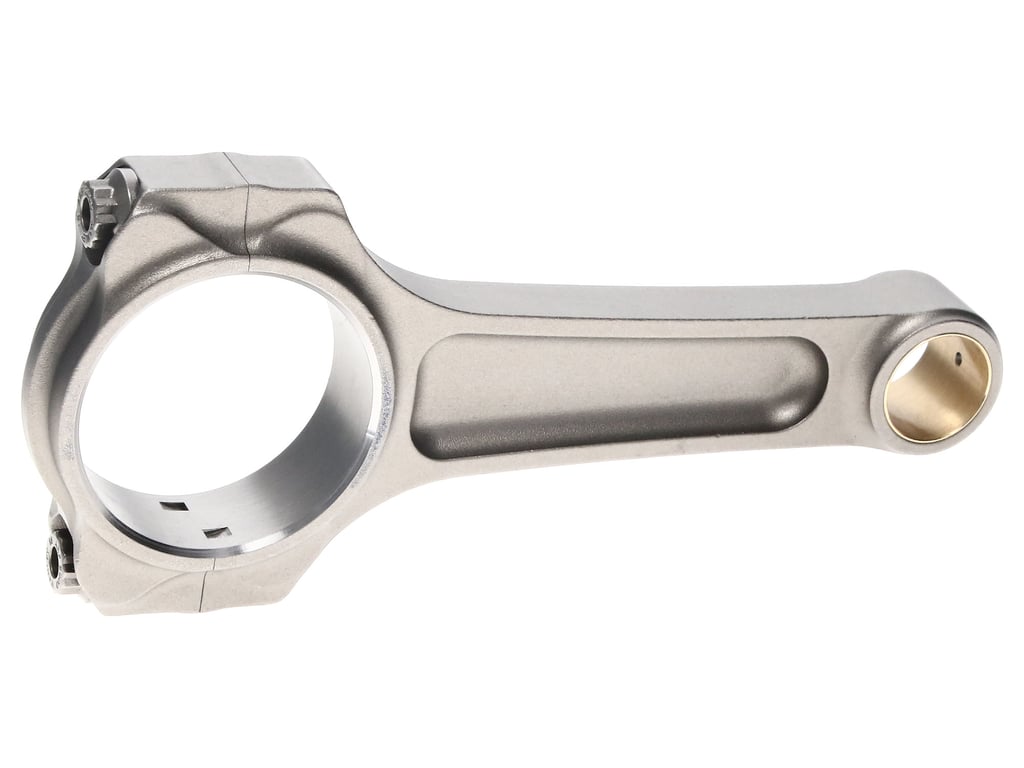

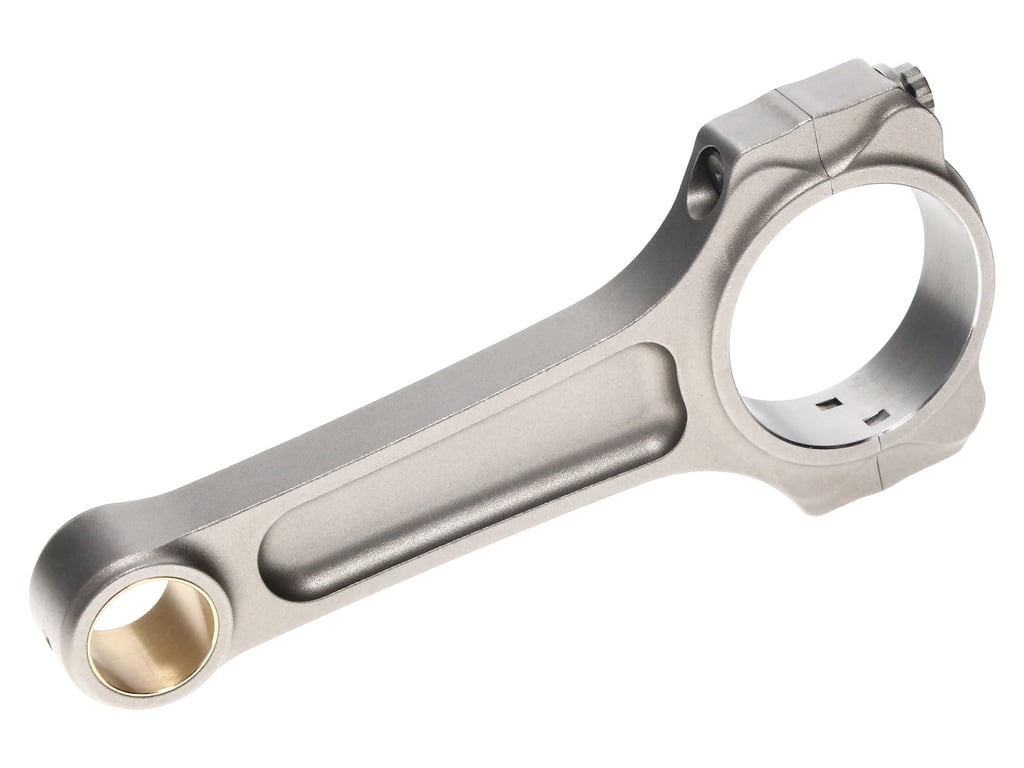

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Features
- Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
- NHRA Legal Certification for some SKUs - Stock and Super Stock
- Versatile Weight Options: Tour Lites, Light, Standard, Heavy
Specs
- Honda / IRL Journal
- Finished to exact Federal Mogul bearing size of choice
- Length: 6.000 in
- Pin Bore: 0.9281 in
- Big End Bore: 2.008 in. / 2.015 in

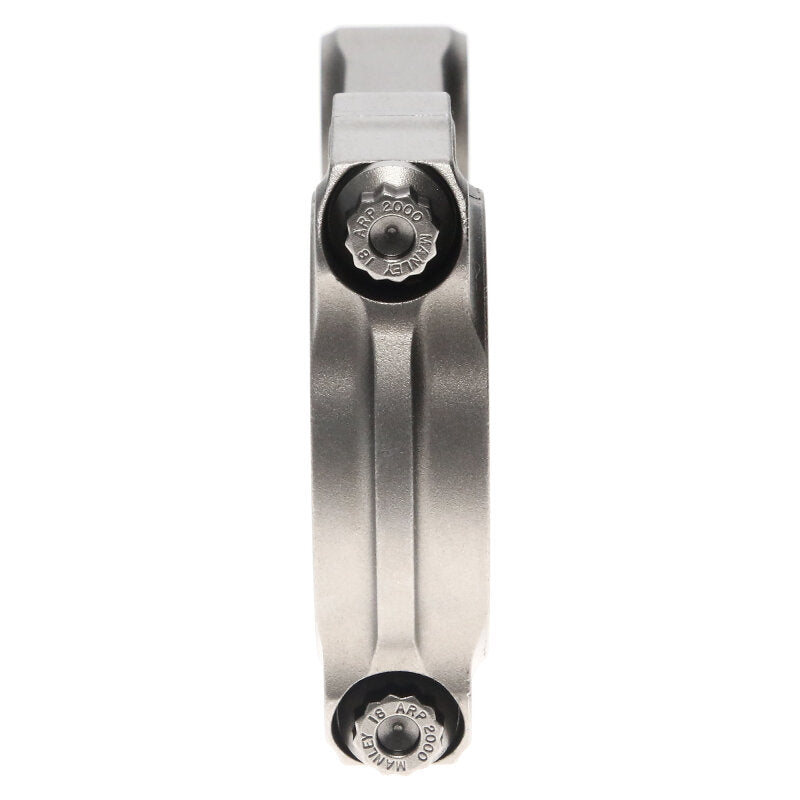

- 3/8" ARP 625+ Bolts
- Approx. HP Rating: 800
- You MUST specify which Federal Mogul® bearing will be used. To order upgraded fasteners, affix an “R6” for the ARP Custom Age 625+, “RA” for the ARP 3.5 after the rod part number
- Product Market: Domestic
- Average Gram Weight: 565
- Big End Bore: 2.008
- Center To Center Length: 6.000
- Journal Size: 1.8885
- Connecting Rod Journal Diameter: 1.8885
- Length: .300 longer
- Pin End Bore: 0.9281
- Wrist Pin Diameter: 0.927
- Connecting Rod Series: Pro Series I-Beam
- Connecting Rod Sub-Series: Lightweight
- Product Type: Engine Connecting Rod Set

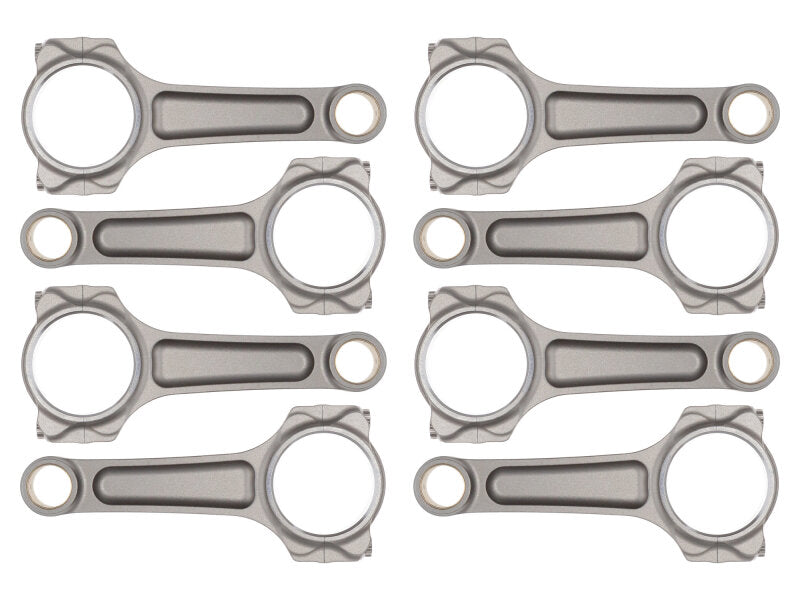

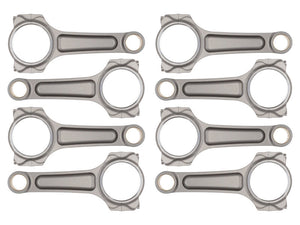

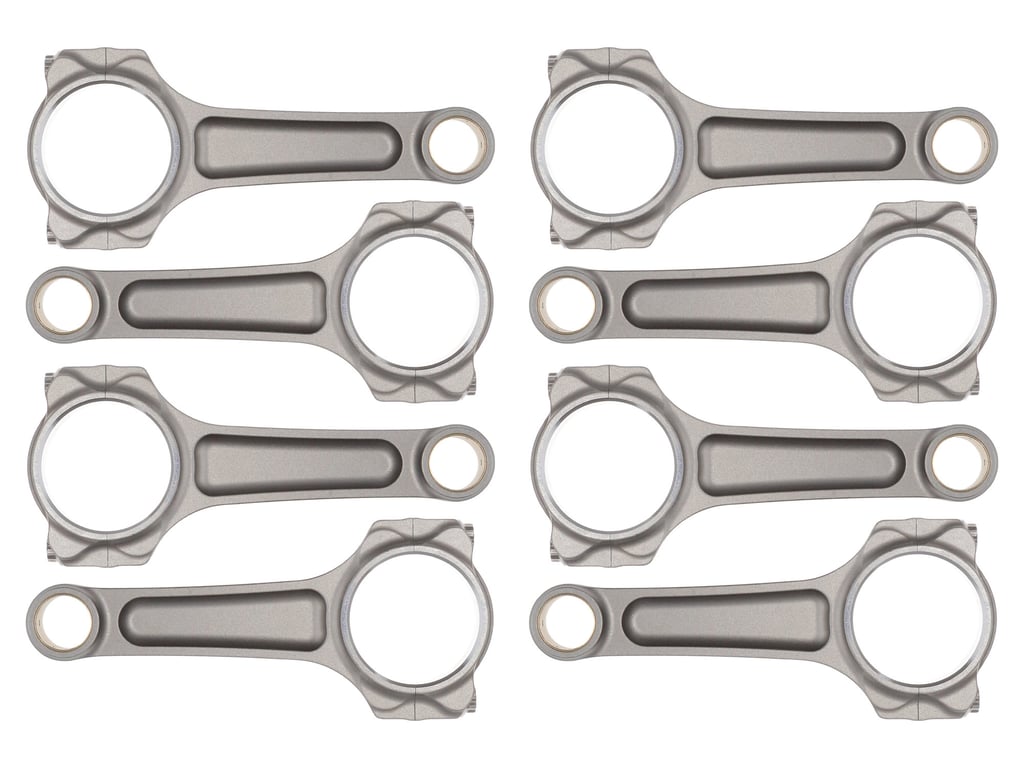

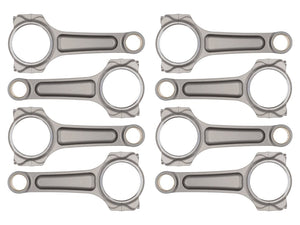

- Rod Quantity: 8
- Rod Bolt Material: ARP 625+
- Connecting Rod Type: I-Beam
- Pin End Width: 0.980
- Connecting Rod Material: 4340
