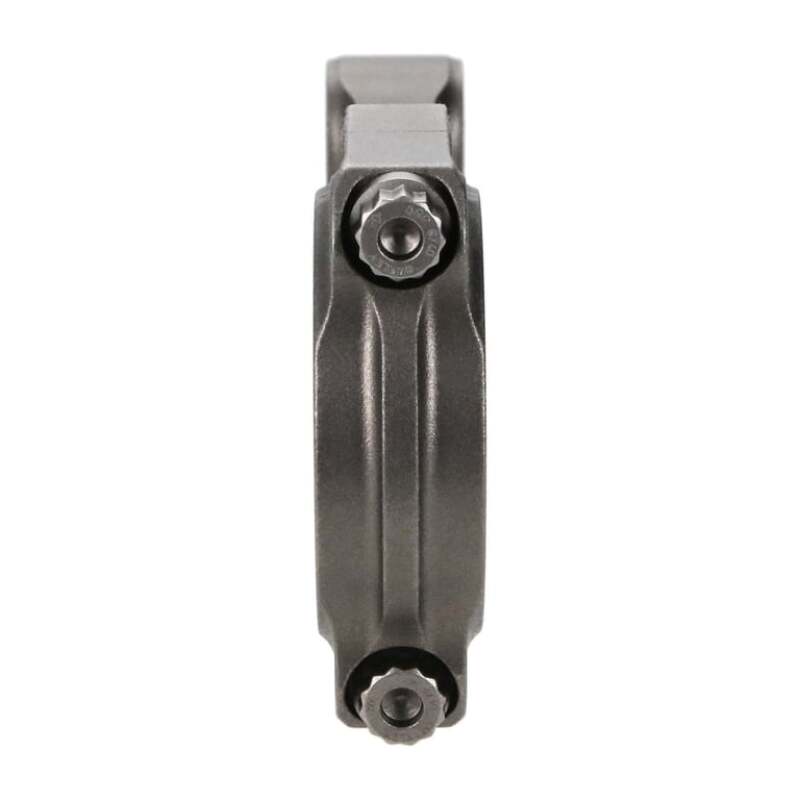

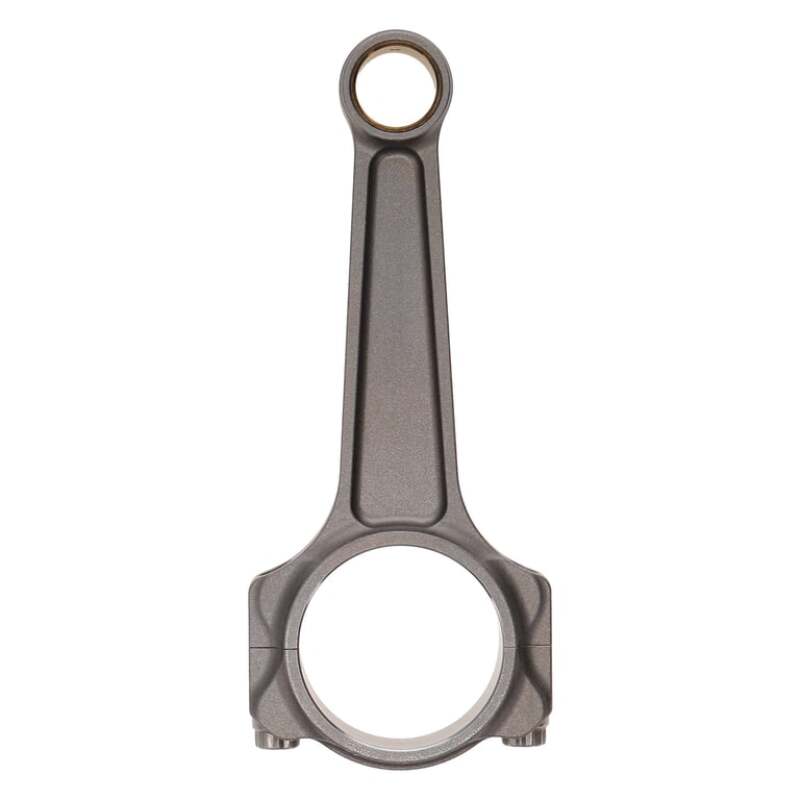

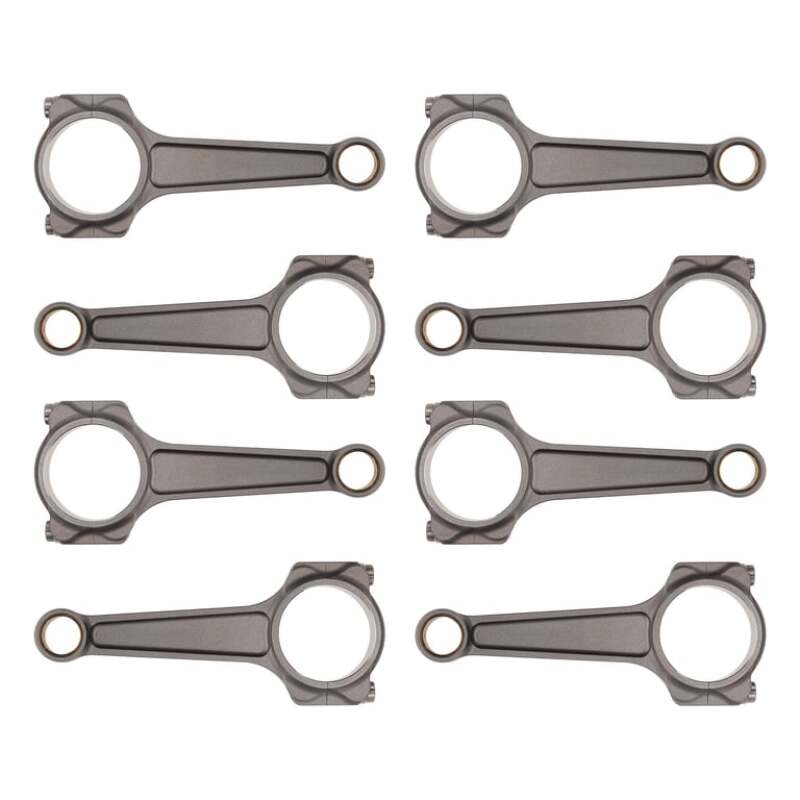

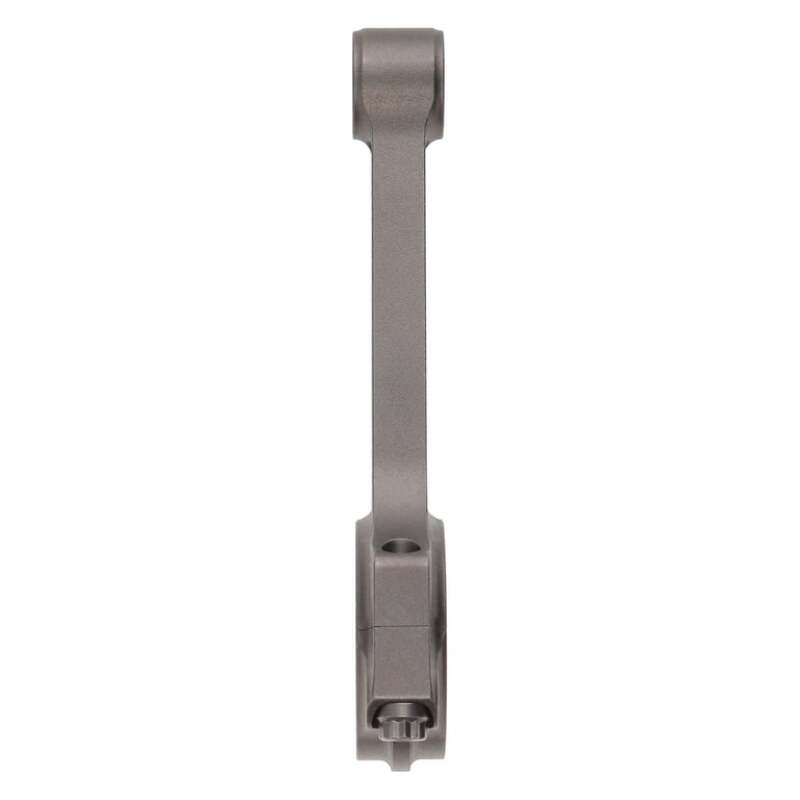

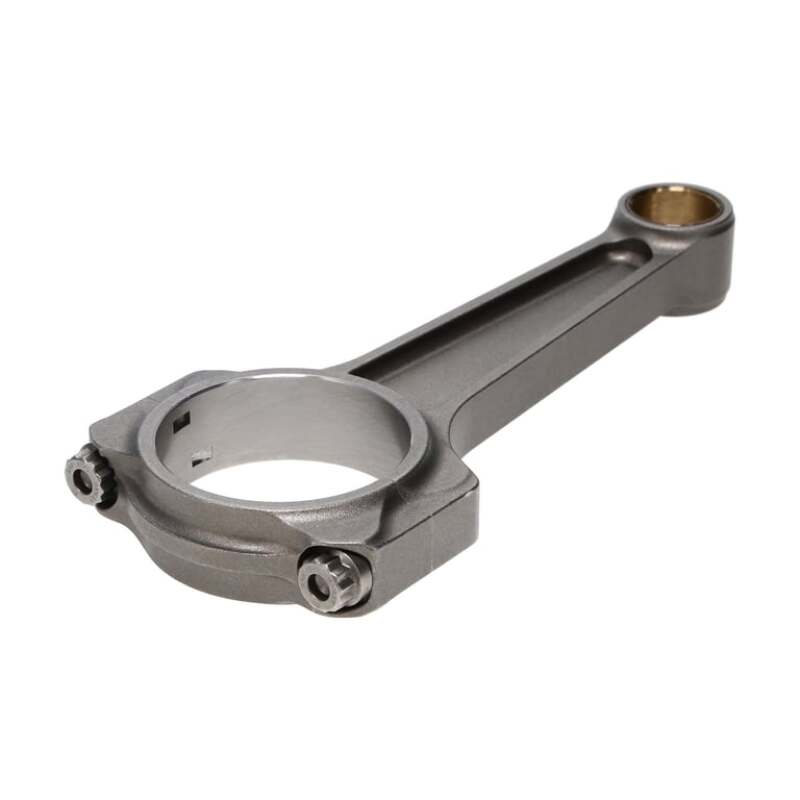

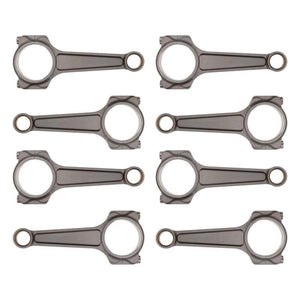

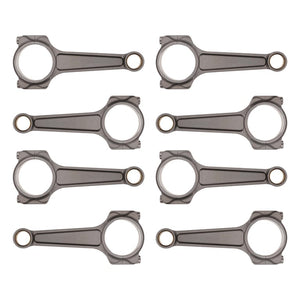

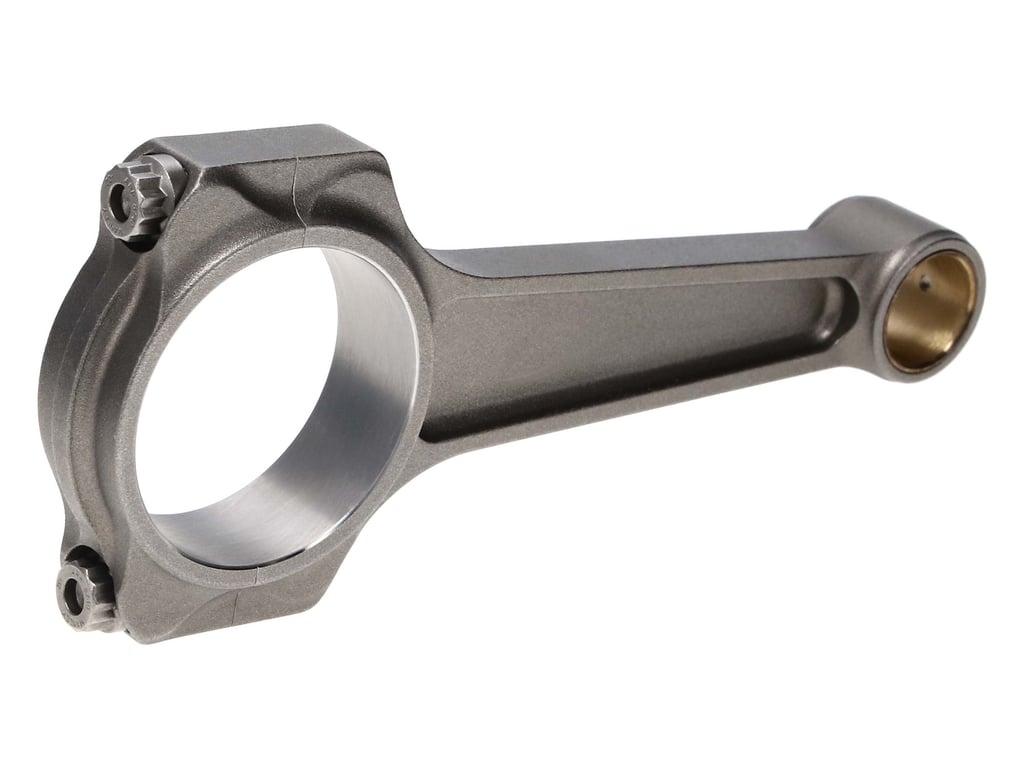

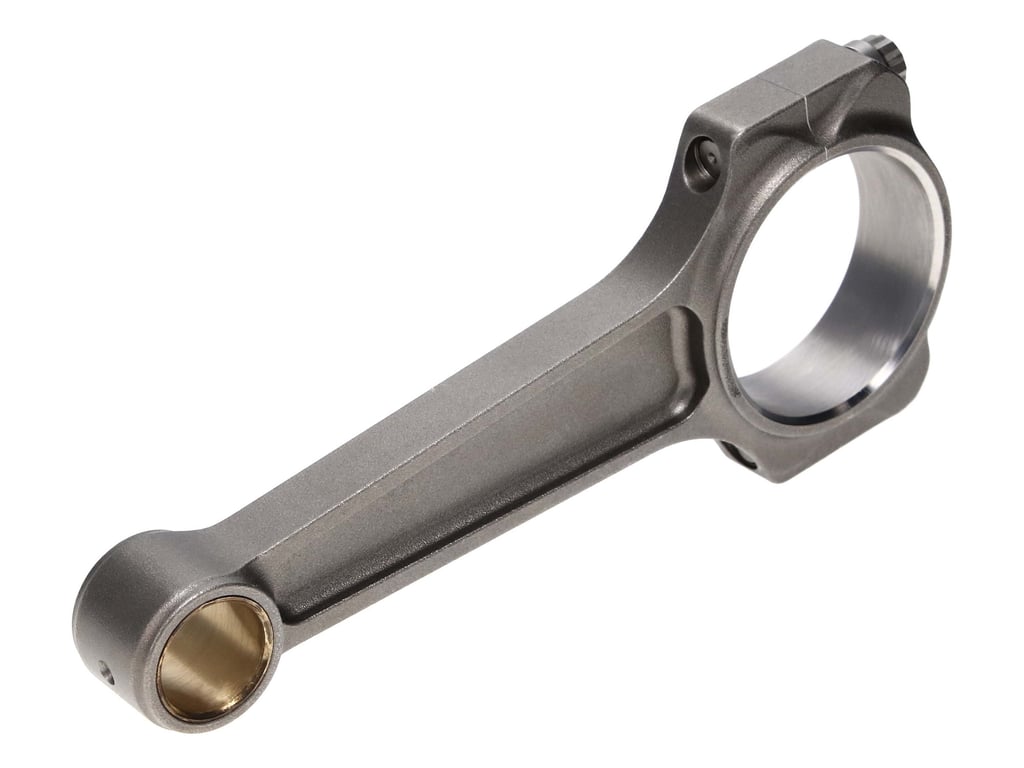

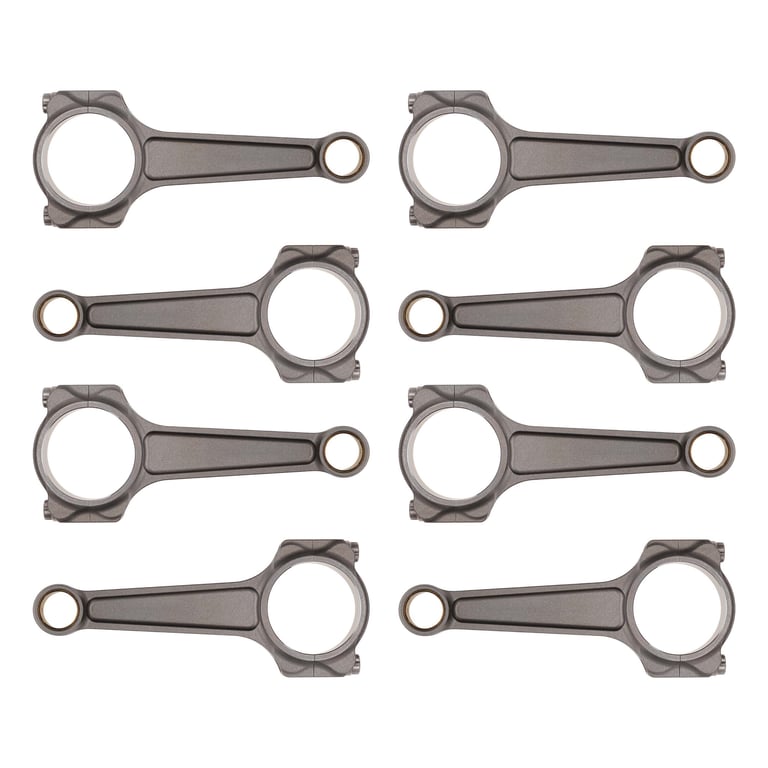

Manley Chevrolet LS Pro Series I-Beam Connecting Rod - 6.100in L - 1.8885in Journal Size (Set of 8) - 14443-8

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock
• Versatile Weight Options: Tour Lites, Light, Standard, Heavy

Specs

• Center To Center Length: 6.100 in
• Big End Bore: 2.008 in. / 2.015 in
• Pin Bore: 0.8761 to 0.9281 in
• 7/16" ARP 2000 Bolts
• Approx. HP Rating: 700+
• You must specify the exact final size pin bore desired. To order rods finished to the exact size for Federal Mogul bearings, affix an “F” after the rod part number. For rods finished to exact size for Clevite® bearings, affix a “C” after the rod part number. In addition, you MUST specify which Clevite® bearing will be used
• Average Gram Weight: 585
• Big End Bore: 2.008
• Center To Center Length: 6.100
• Journal Size: 1.8885
• Connecting Rod Journal Diameter: 1.8885
• Wrist Pin Diameter: 0.866
• Additional Info: 0.927 IN Wrist Pin Diameter option
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: NHRA Legal Super Stock
• Pin End Bore: 0.867
• Length: Stock
• Product Type: Engine Connecting Rod Set
• Rod Quantity: 8
• Rod Bolt Material: ARP 8740
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
