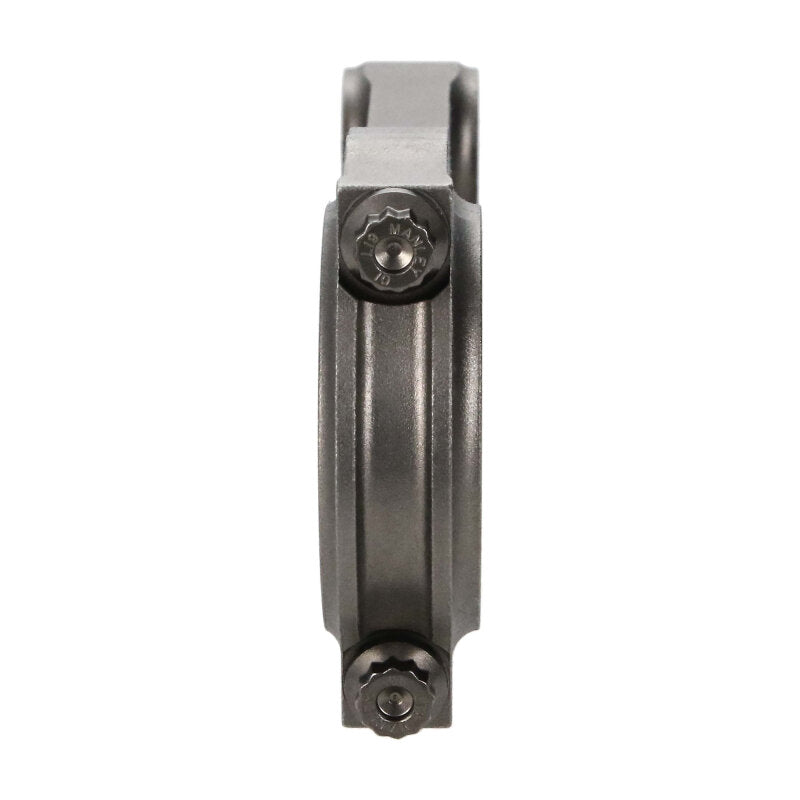

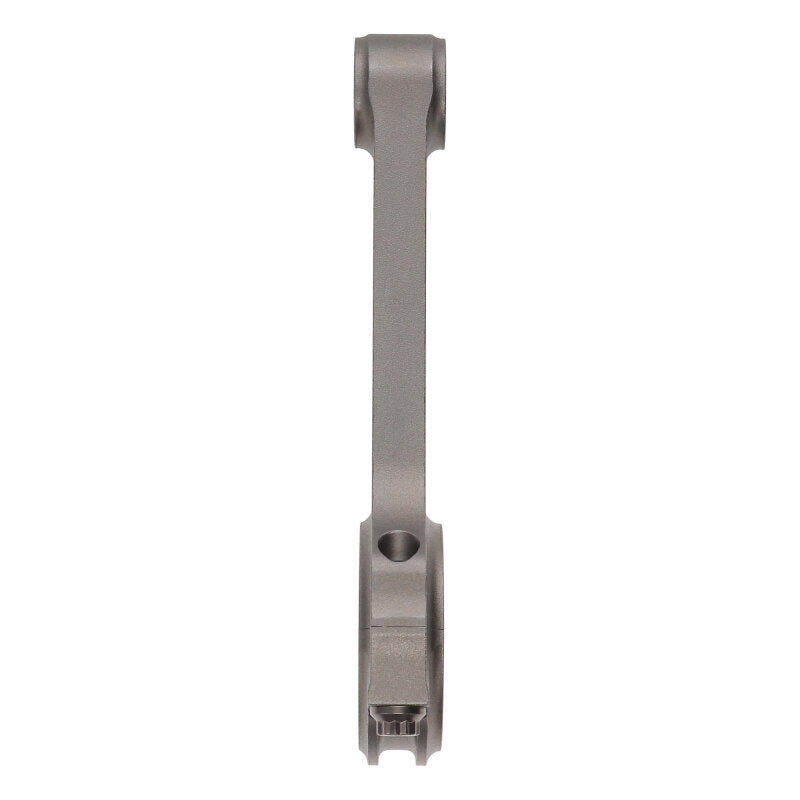

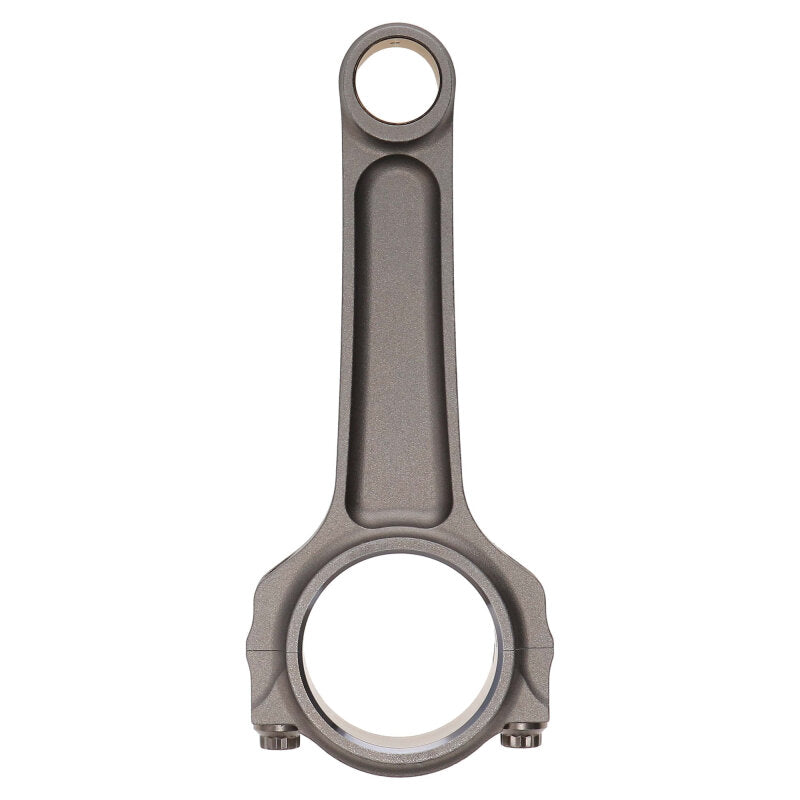

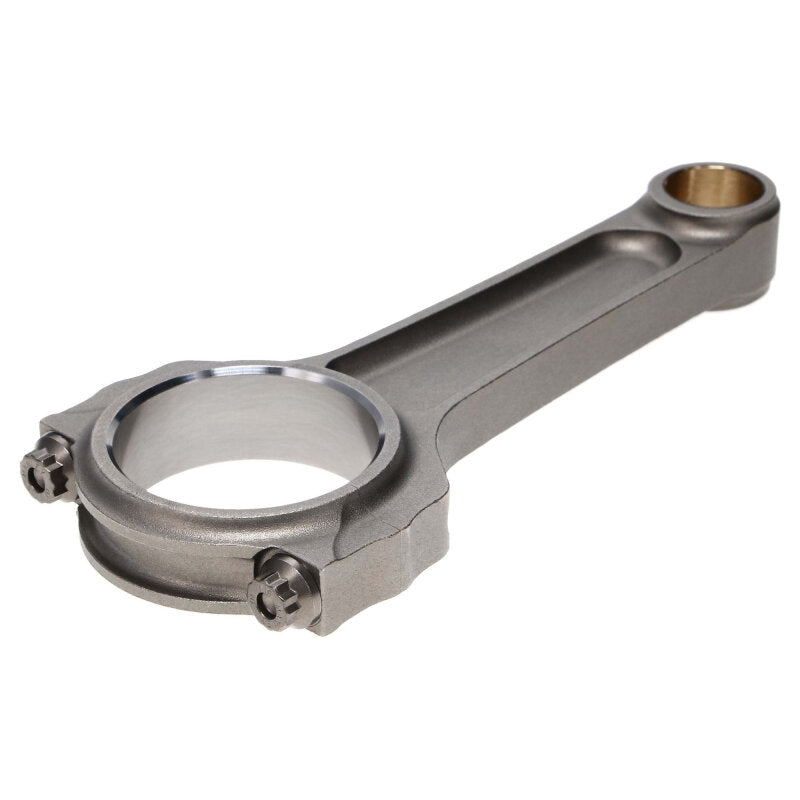

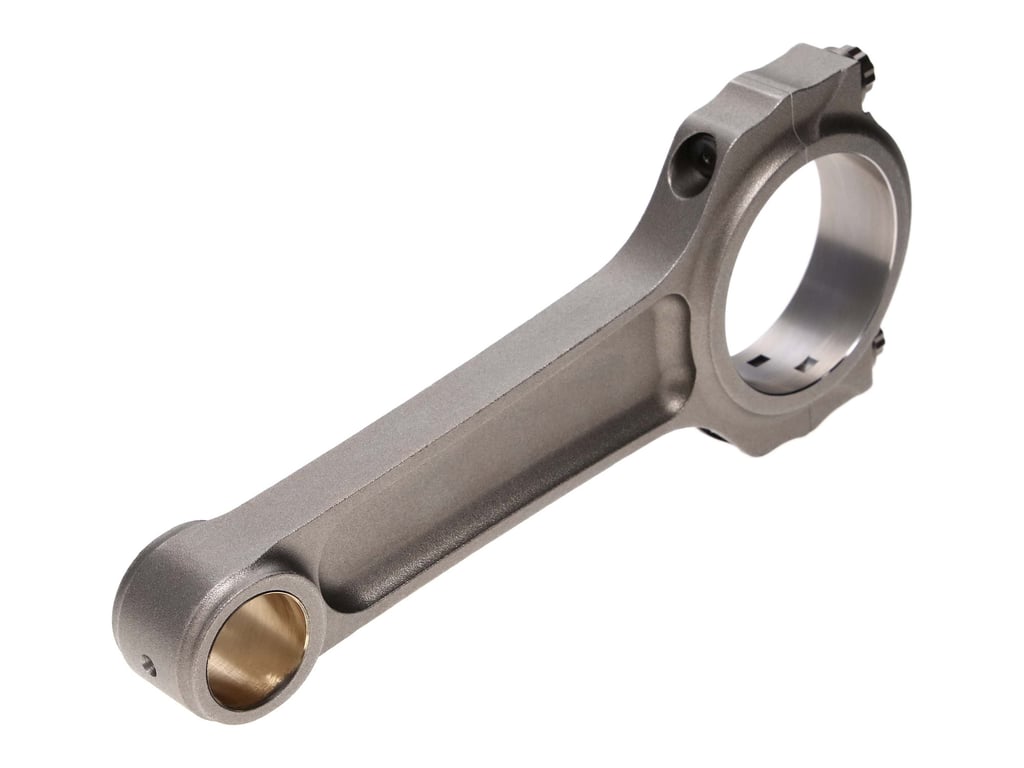

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Features
- Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
- NHRA Legal Certification for some SKUs - Stock and Super Stock
- Versatile Weight Options: Tour Lites, Light, Standard, Heavy
Specs
- Center To Center Length: 6.750 in
- Big End Bore: 2.325 in
- Pin Bore: 0.9911 in
- 7/16" ARP 625+ Bolts
- Approx. HP Rating: 1000 (Oval) / 1600+ (Drag)

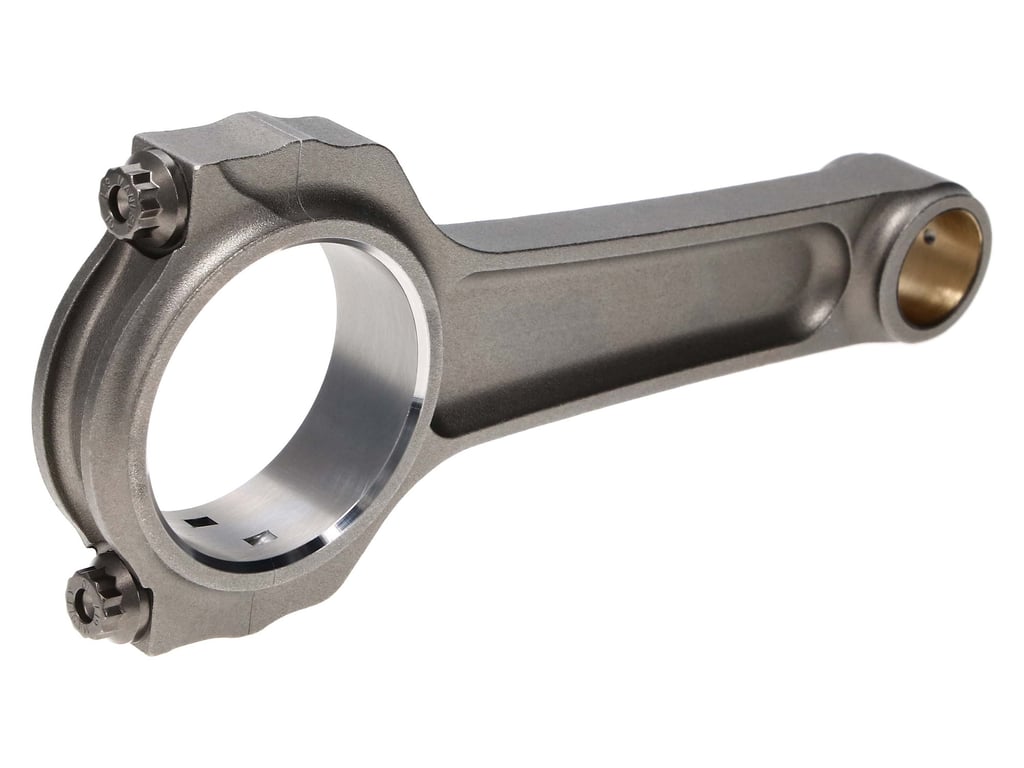

- Manley Connecting Rod, ROD-BBC 6.750 I BEAM W/ARP L-19
- Industry: Automotive
- Out of Stock Message: Call for Availability
- Prop 65 Yes/No: Yes
- Prop 65 (C, R or CR): CR
- Prop 65 - Short Label: Prop 65 Warning Label.JPG
- Engine Type: ICE
- Make: Chevrolet
- Engine: Big Block
- Product Market: Domestic
- Average Gram Weight: 850
- Big End Bore: 2.325
- Center To Center Length: 6.750
- Journal Size: 2.200
- Connecting Rod Journal Diameter: 2.200
- Length: .615 longer
- Pin End Bore: 0.9911
- Wrist Pin Diameter: 0.990
- Connecting Rod Series: Pro Series I-Beam

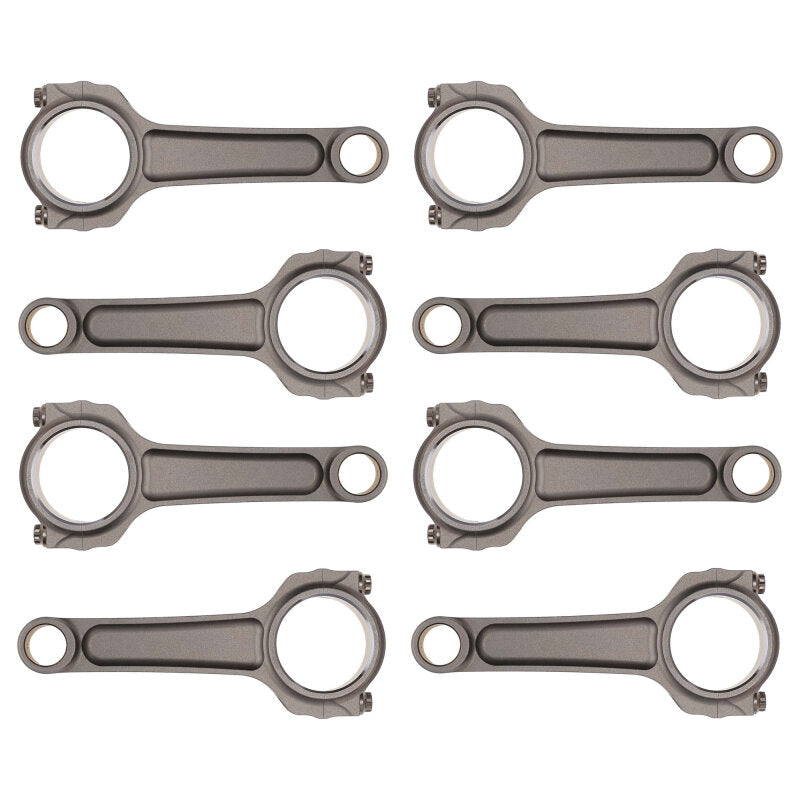

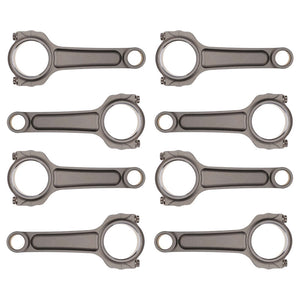

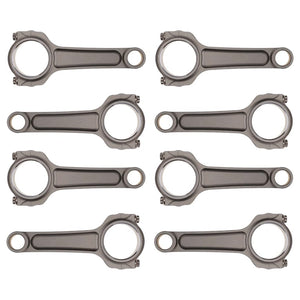

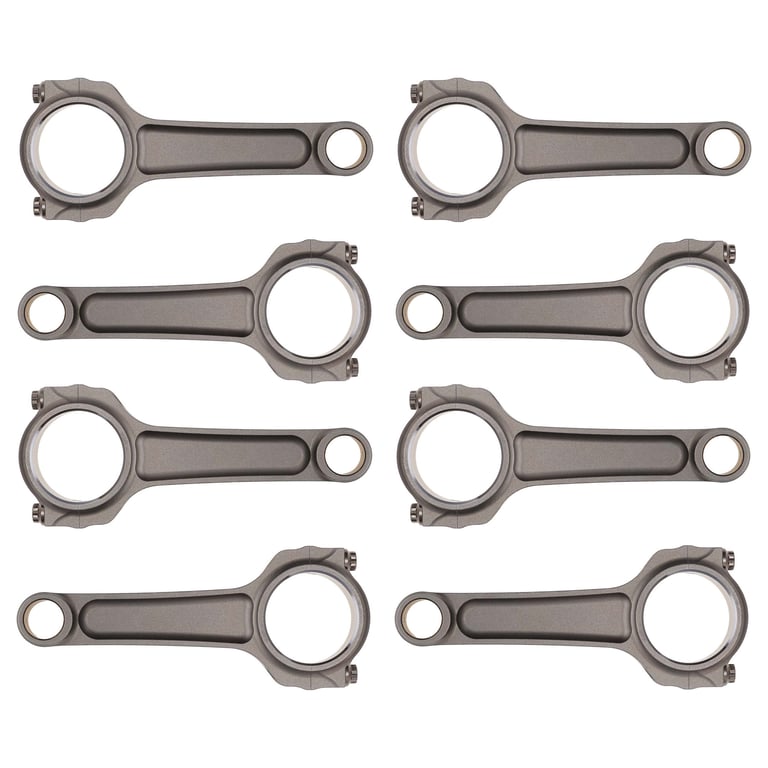

- Product Type: Engine Connecting Rod Set
