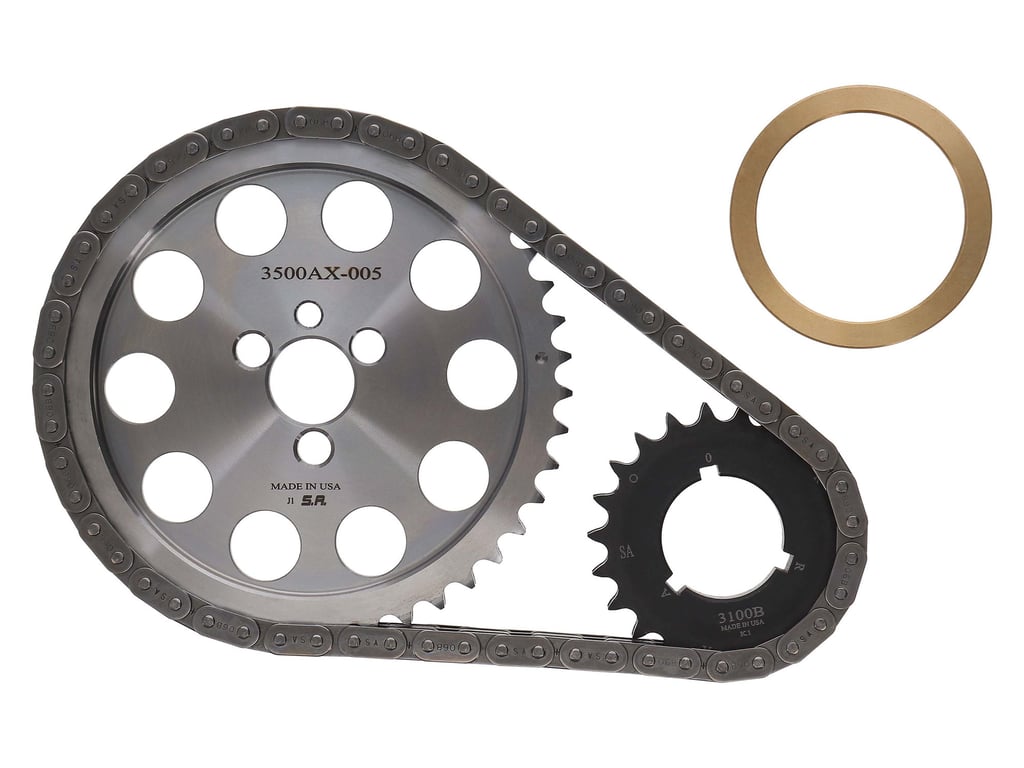

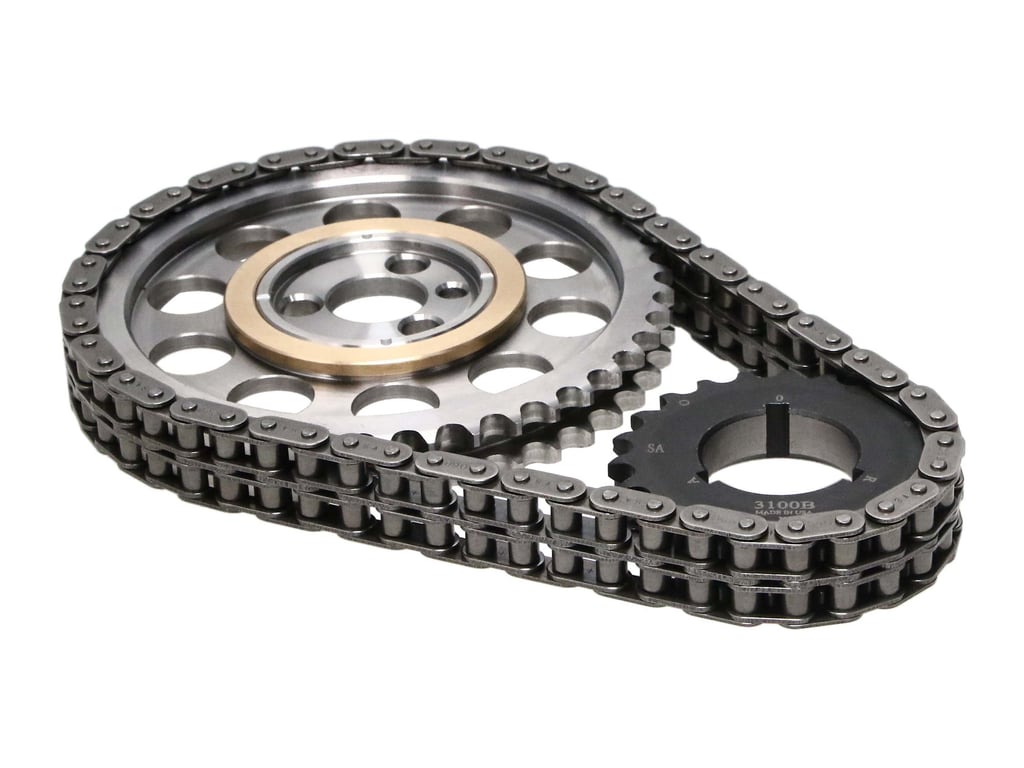

Billet Steel Sprockets- Brass Shim - Double Roller Chain - .005 in. Shorter
Features

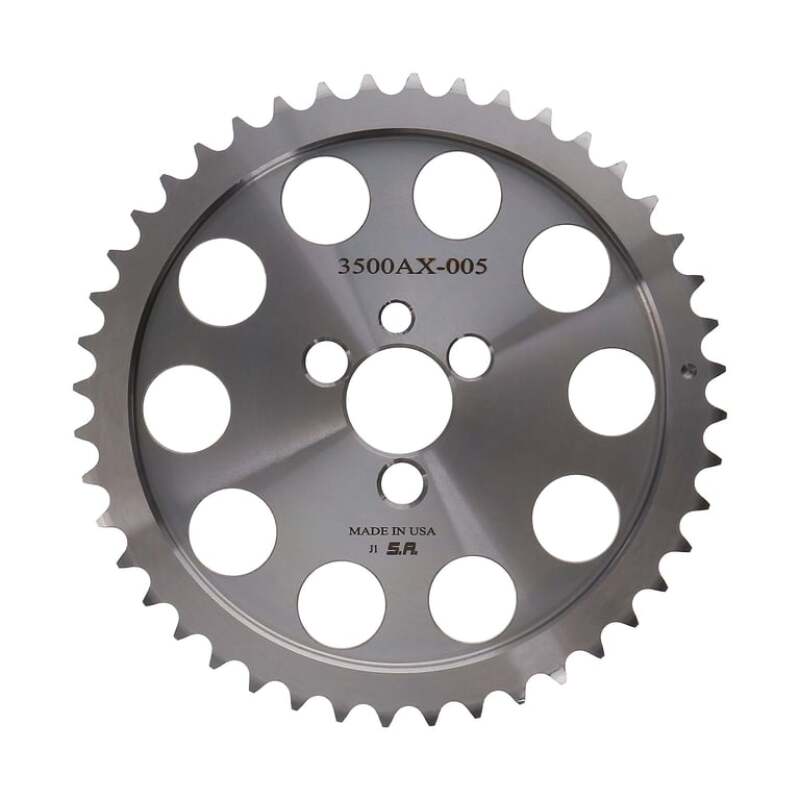

- Fully machined billet steel camshaft and crankshaft sprockets

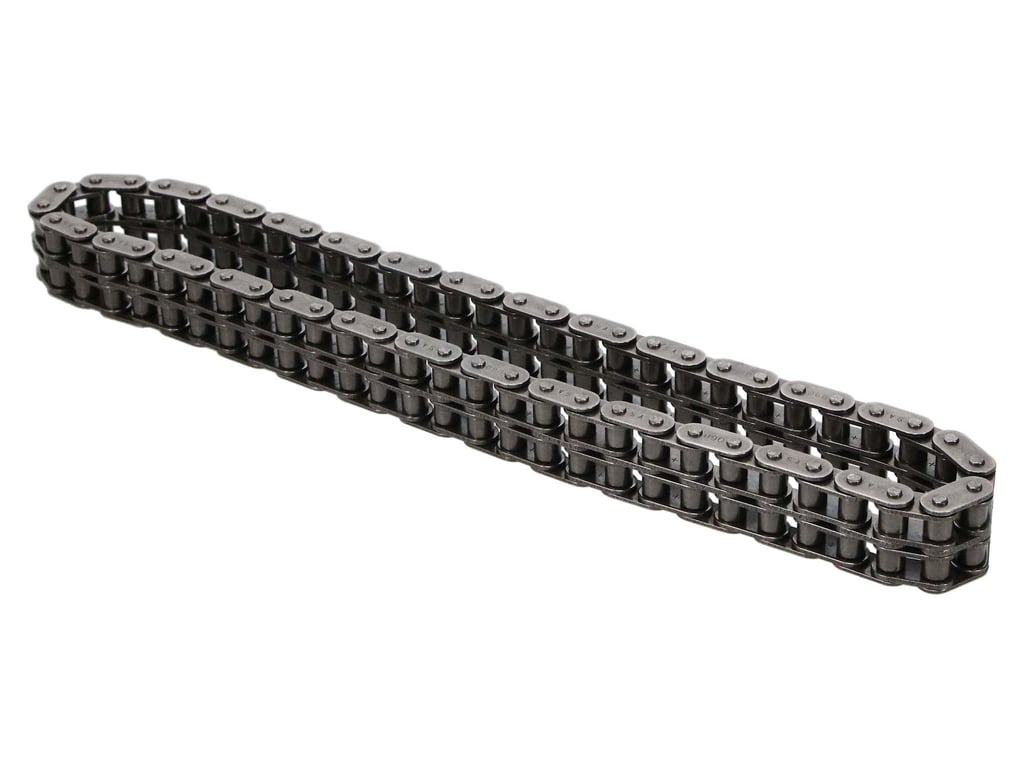

- Roller chain designed with .250" diameter rollers

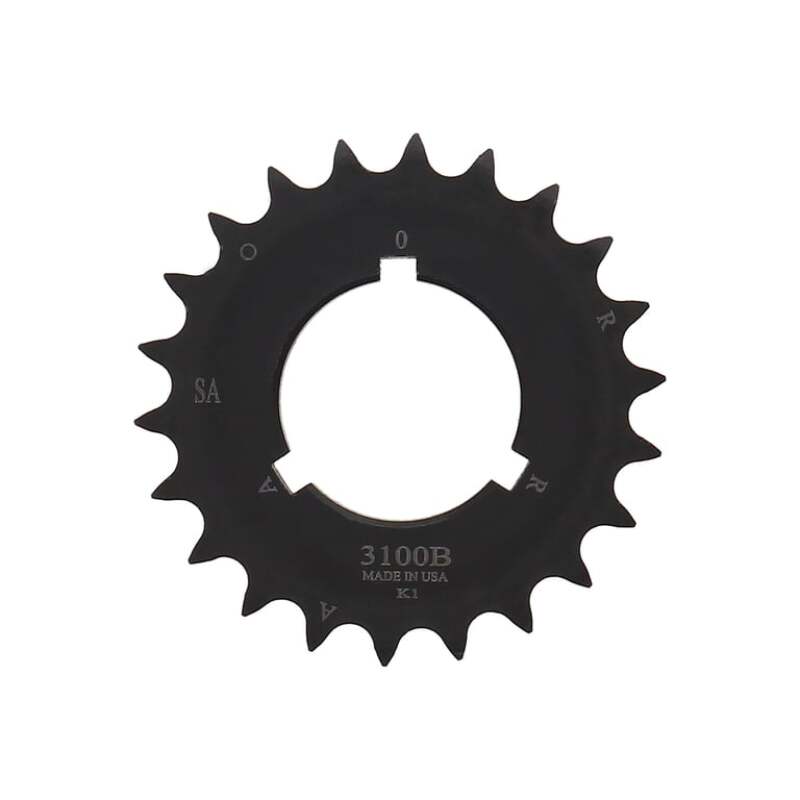

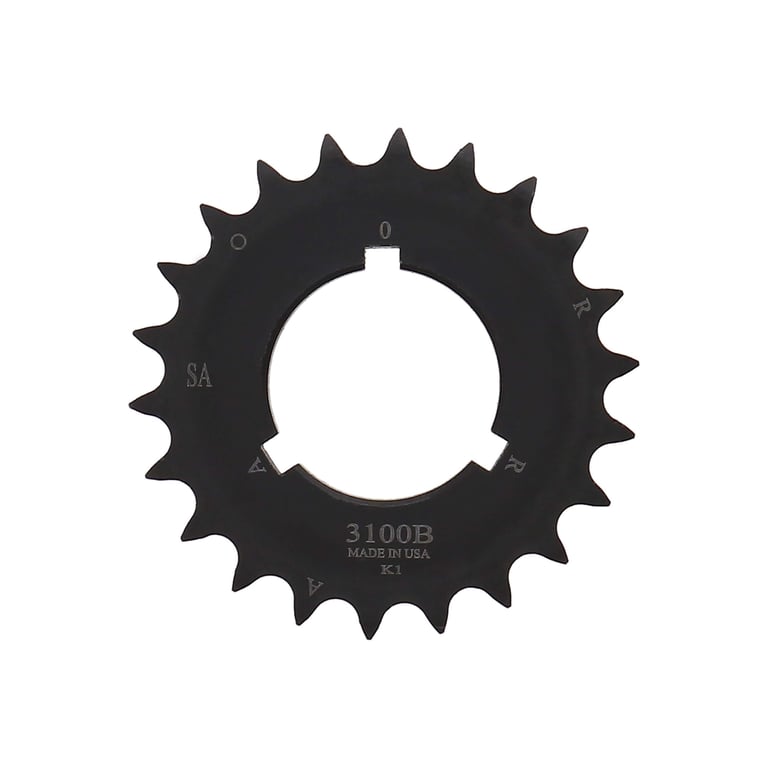

- Crank sprocket includes three keyways enabling different settings: -4, 0, or +4 degrees of timing
- Crank sprocket includes three keyways enabling either 0 degress or +/- 4 degress of timing

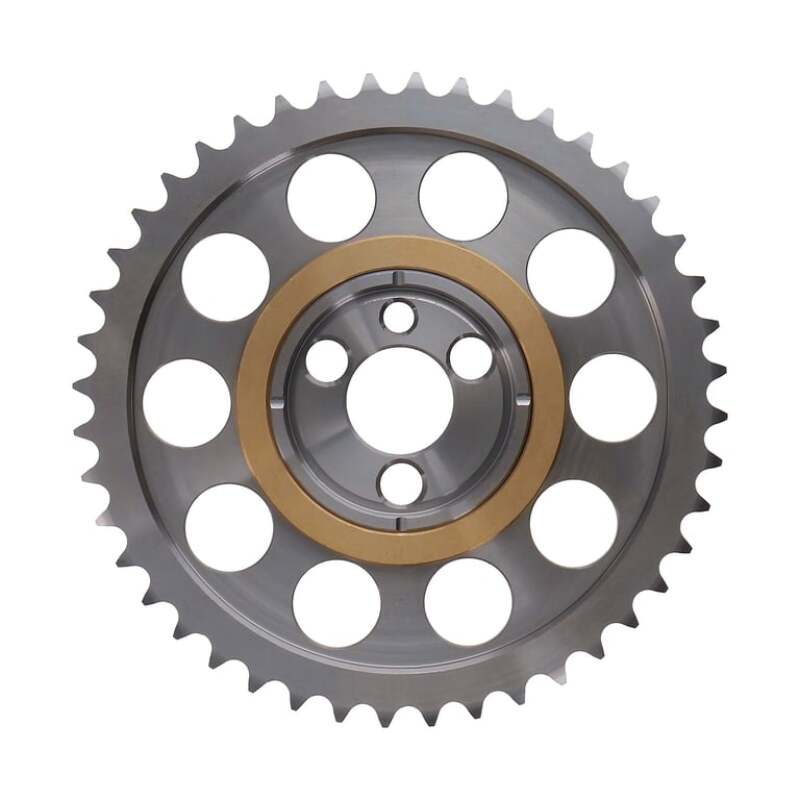

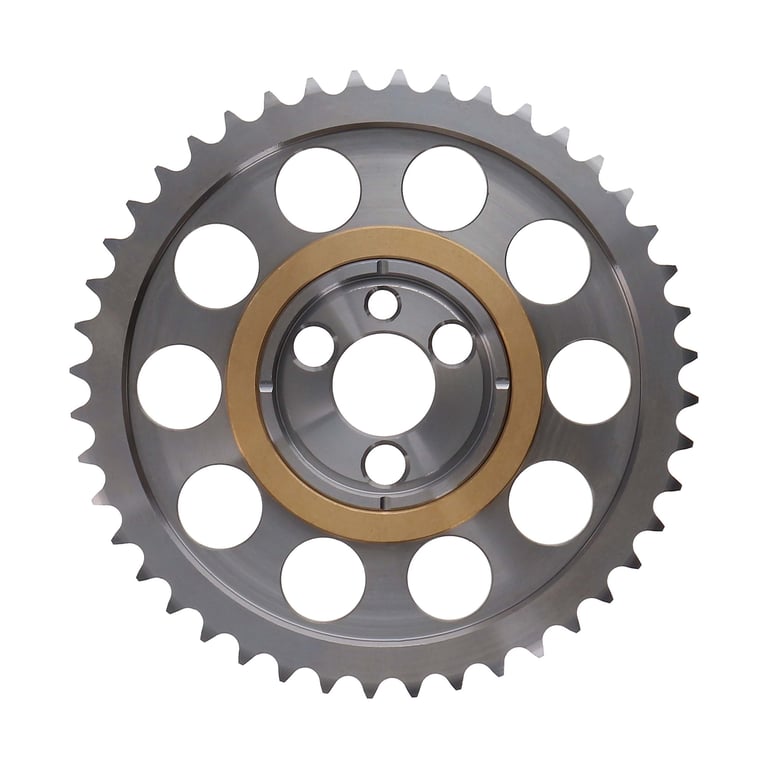

- Camshaft sprockets are machined for and include a brass wear shim or a captive Torrington thrust bearing
Specs
- Billet Steel Sprockets
- Brass Shim
- Double Roller Chain
- .005 in. Shorter
- Manley Timin Chain Kit, KIT-SBC BILLET W/SHIM
- Add-On: 76161
- Product Type: Engine Timing Chain Kit
- Timing Chain Style: Roller (0.250 in. diameter)
- Cam Sprocket Material: Billet Steel
- Crank Sprocket Material: Billet Steel
- Thrust Bearing: Brass Shim
- Center Distance: 0.005 in. Shorter
- Industry: Automotive
- Out of Stock Message: Call for Availability
- Title: Manley Timin Chain Kit, KIT-SBC BILLET W/SHIM
- Prop 65 Yes/No: Yes
- Prop 65 (C, R or CR): CR
- Prop 65 - Short Label: Prop 65 Warning Label.JPG
- Engine Type: ICE
- Make: Chevrolet
- Engine: Small Block
- Product Market: Domestic
