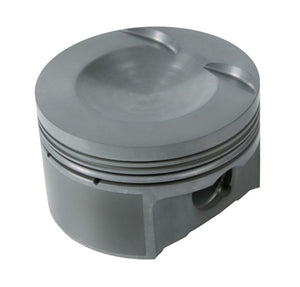

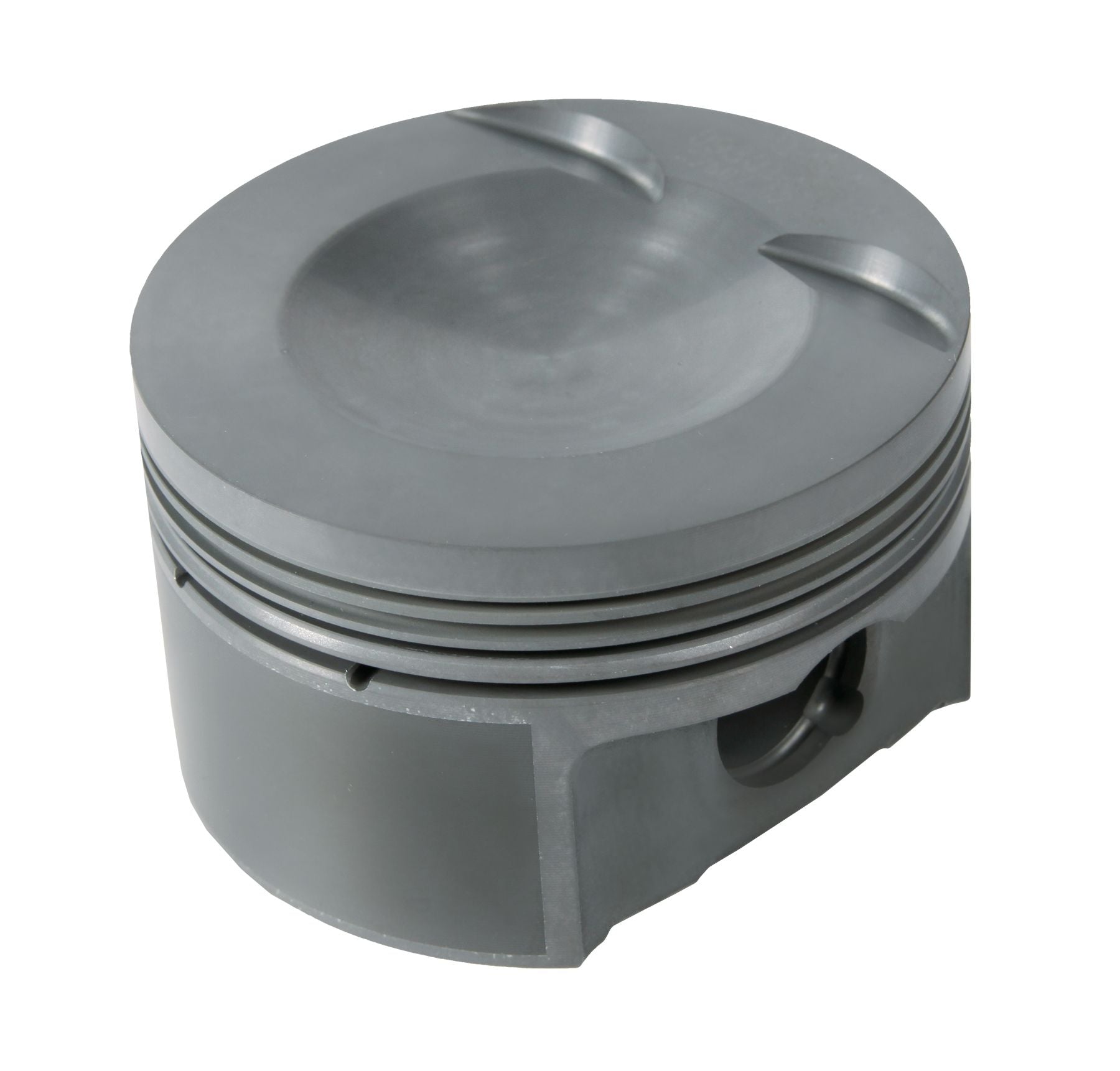

Mahle MS Piston Set VW TFSi 2.0L 82.5mm Bore 92.8mm Stroke 144mm Rod 20mm Pin -10cc 9.3 CR Set of 4 - 197799948

Piston (set) - VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO — 82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-10.4cc,312g,9.3CR, M142P

Application

VW/Audi 2.0L TFSi 2.0L

Features & Specs

• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 106g
• Pin Length: 59.0mm
• Pin Diameter: 20.0mm
• Package Quantity: Sold as a set of 4
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: N
• Crown Volume: -10.4cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.197
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided
• Rings Included: Y
• Piston Style: Dish, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
• Piston Material: Forged, M142P
• Piston Mass: 312g

Country of Origin: US  |  Package: Sold as a set of 4
