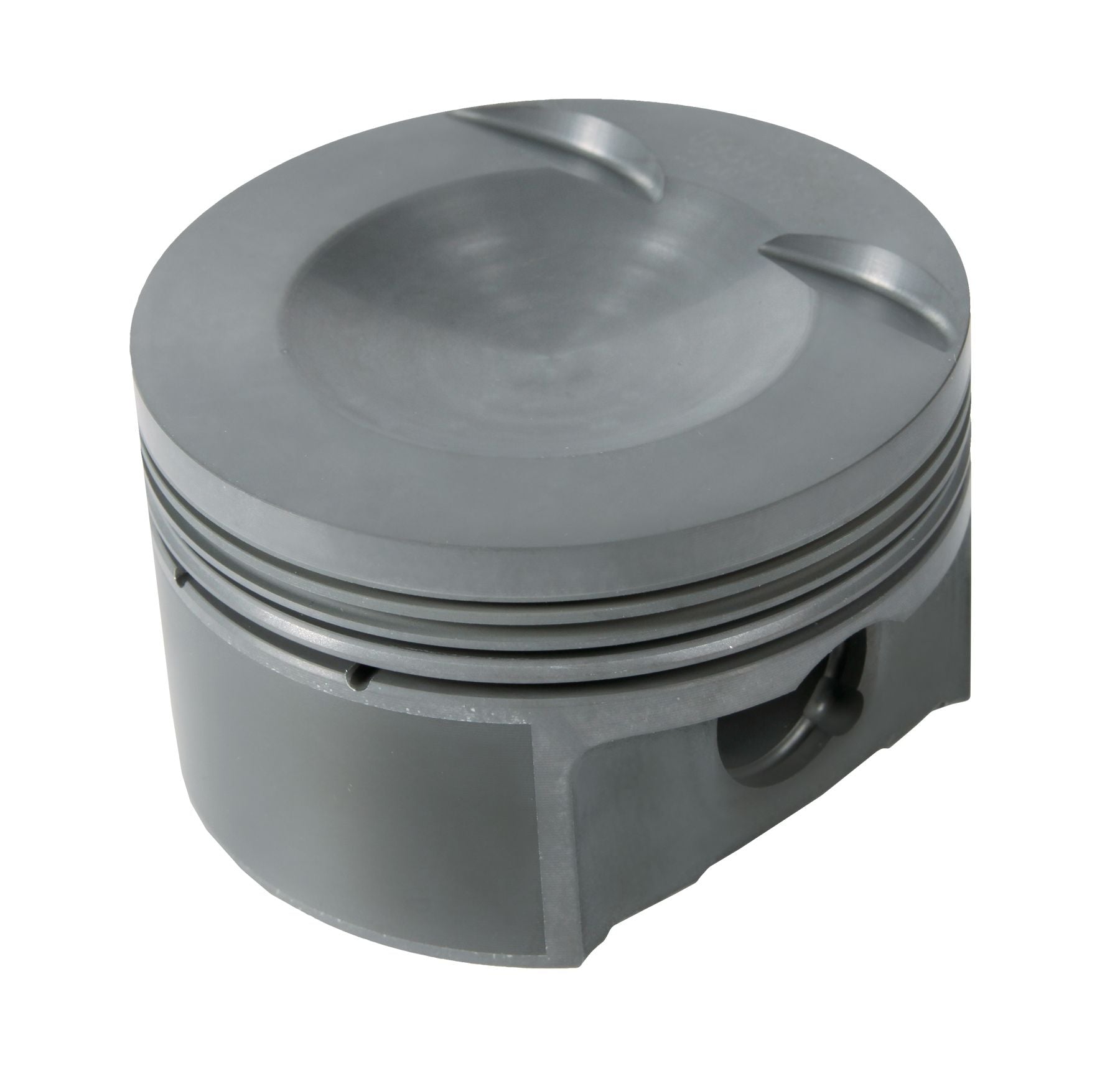

Mahle MS Piston Set VW 1.8T 81.50mm Bore 86.4mm Stroke 144mm Rod 20mm Pin -12cc 8.5 CR Set of 4 - 930229009

Piston (set) - VOLKSWAGEN/AUDI EA113 (95-2000) 1.8L TURBO — 81.50mm x 32.7mm CH, 86.4mm stroke,144mm rod,20mm pin,-12.0cc,294g,8.5CR, 4032

Application

VW/Audi 1.8L

Features & Specs

• Coatings: Phosphate + Grafal
• File Fit: N
• Piston Material: Forged, 4032
• Clips Included: Y
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided
• Rings Included: Y
• Piston Style: Dish, w/ 1 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
• Piston Mass: 294g
• LCR Coating: Phosphate
• Pins Included: Y
• Pin Wall Thickness: 0.17
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 84g
• Pin Length: 50.8mm
• Pin Diameter: 20.0mm
• Package Quantity: Sold as a set of 4
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• Crown Volume: -12.0cc

Country of Origin: US  |  Package: Sold as a set of 4
