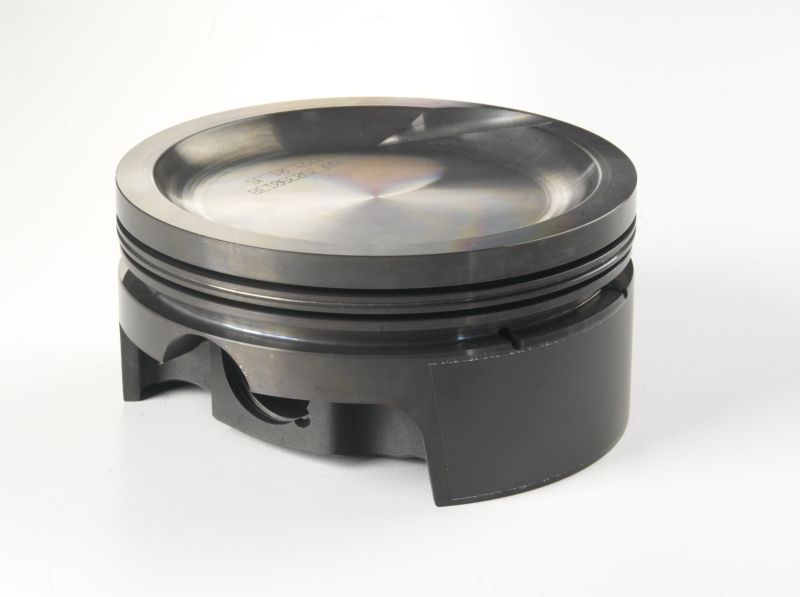

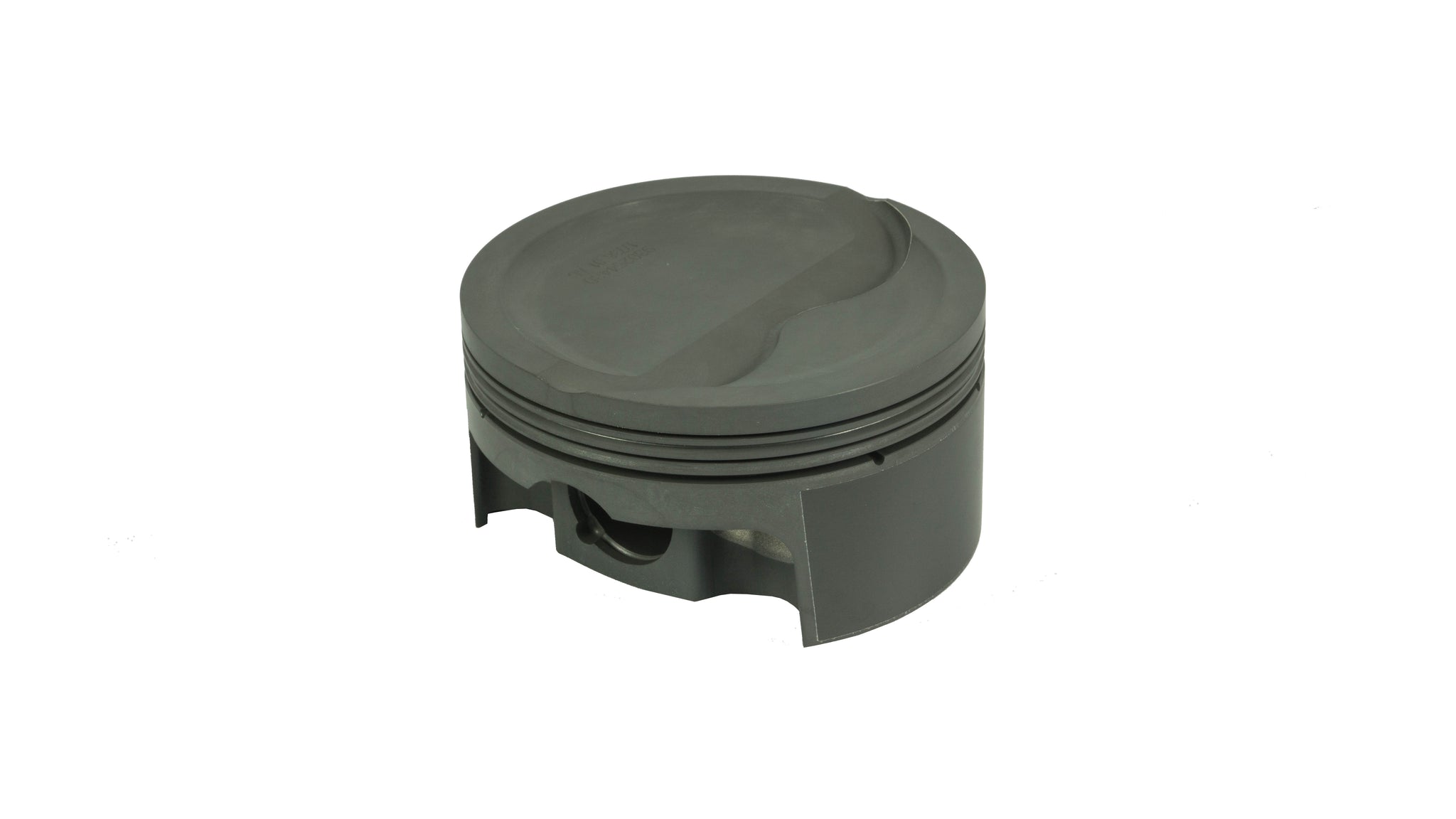

Mahle MS Piston Set SBF 434ci 4.090in Bore 4.125in Stroke 6.7in Rod .990 Pin -26cc 9.2 CR Set of 8 - 930264190

Piston (set) - FORD FE DISH — 433cid 4.090 x 1.390CH, 4.125stroke,6.700rod,0.990pin,-26cc,516g,9.3CR, 4032

Application

Ford FE 433 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• Clip Style: Round Wire
• Pin Wall Thickness: 0.18
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dish, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 516g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -26cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
