Mahle MS Piston Set SBF 433ci 4.155in Bore 4.000in Stroke 6.25in Rod .927 Pin -6cc 12.1 CR Set of 8 - 930244455

Piston (set) - SMALL BLOCK FORD FLAT TOP — 434cid 4.155 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-6.5cc,447g,12.2CR, 4032

Application

Ford Small Block 434 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• Clip Style: Round Wire
• Pin Wall Thickness: 0.168
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y

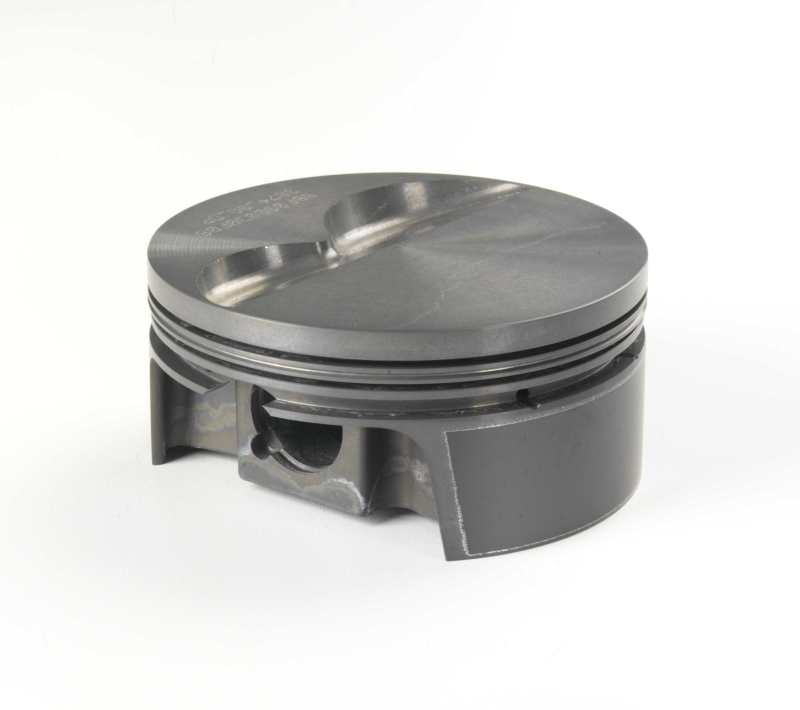

• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 447g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm

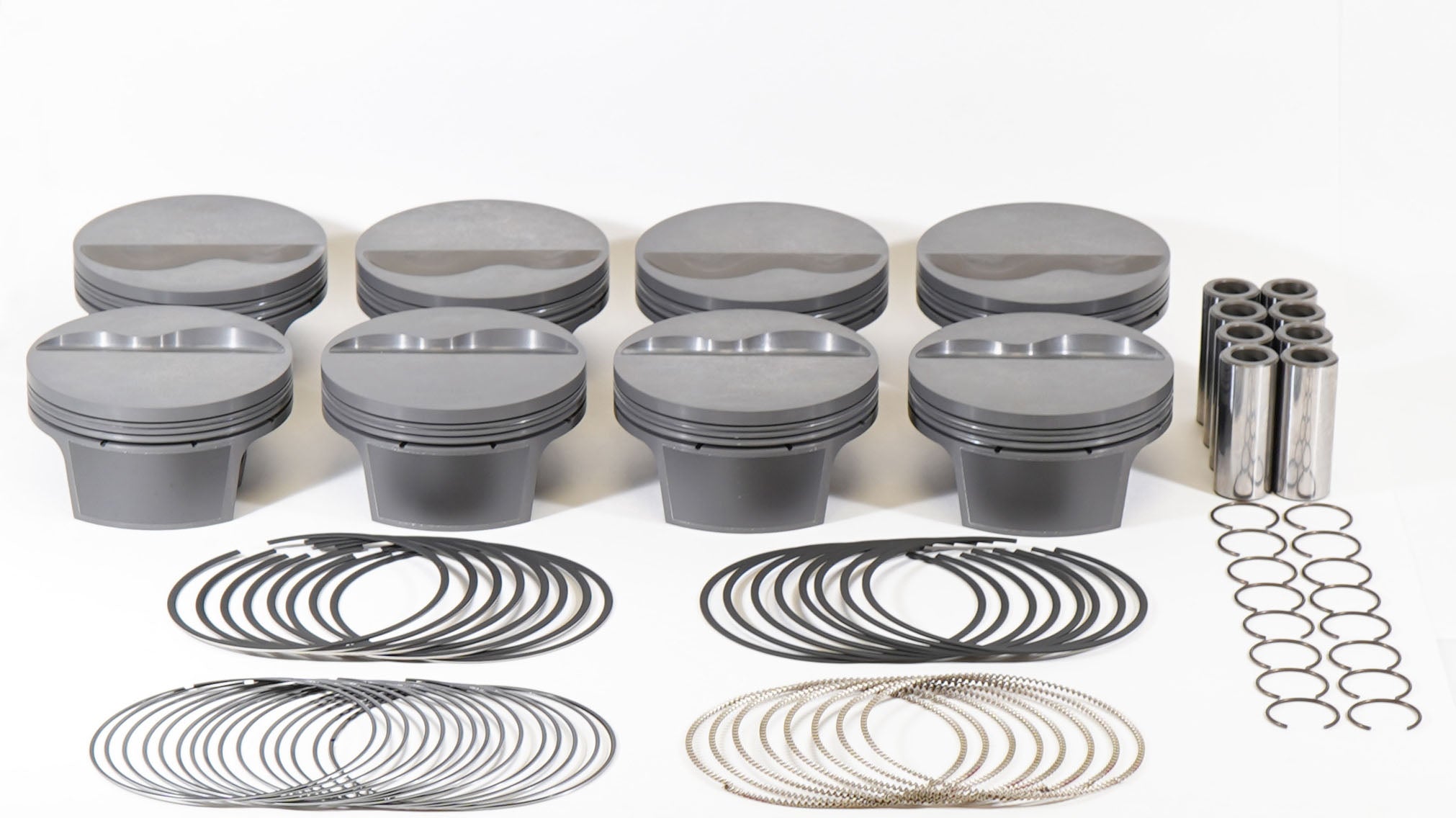

• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -6.5cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
