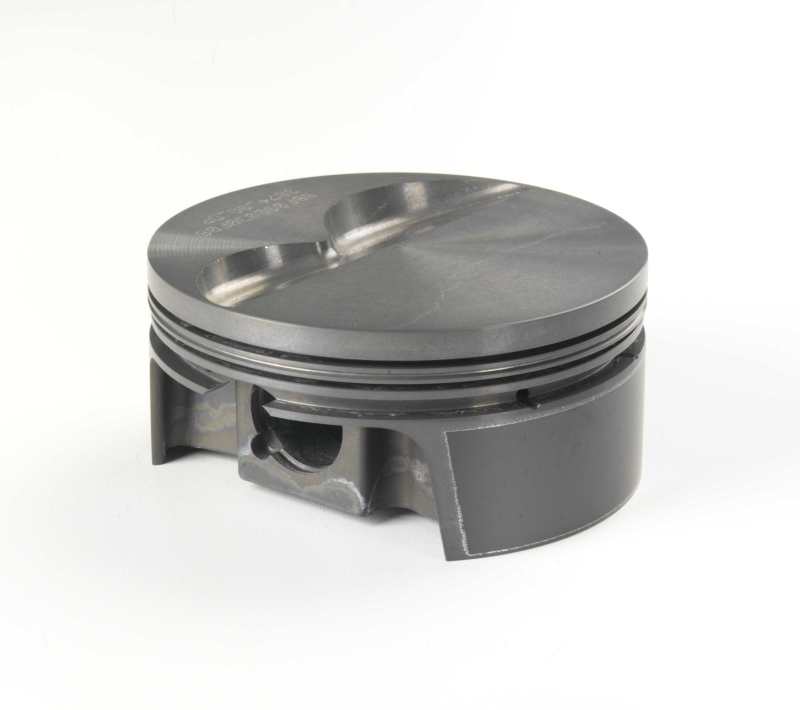

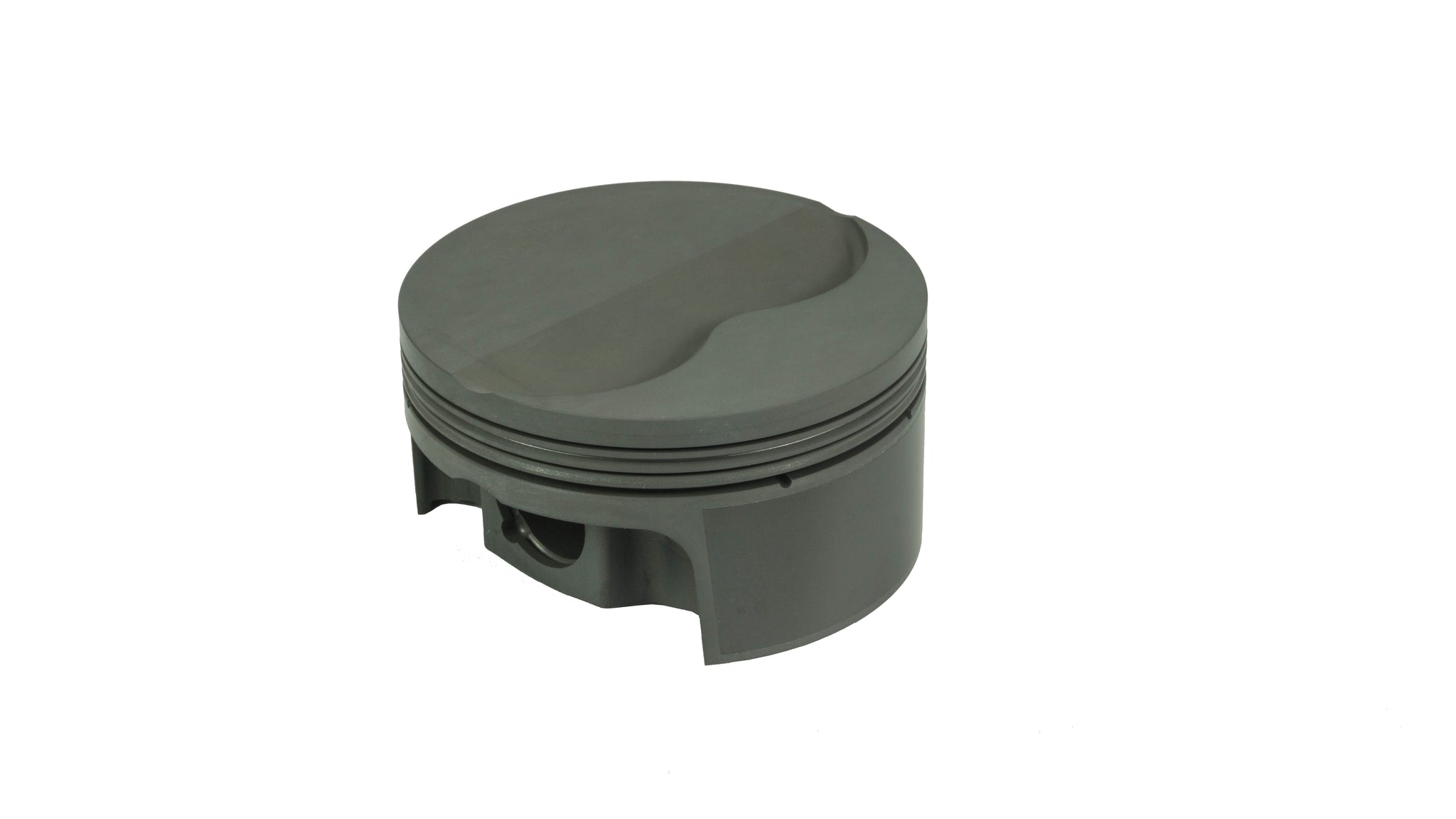

Mahle MS Piston Set SBF 416ci 4.080in Bore 3.89in Stroke 6.49in Rod .975 Pin -7cc 10.7 CR Set of 8 - 930264080

Piston (set) - FORD FE FLAT TOP — 416cid 4.080 x 1.665CH, 3.980stroke,6.490rod,0.975pin,-7.5cc,516g,10.7CR, 4032

Application

Ford FE 416 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• Clip Style: Round Wire
• Pin Wall Thickness: 0.172
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 516g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 130g
• Pin Length: 64.0mm
• Pin Diameter: 24.765mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -7.5cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
