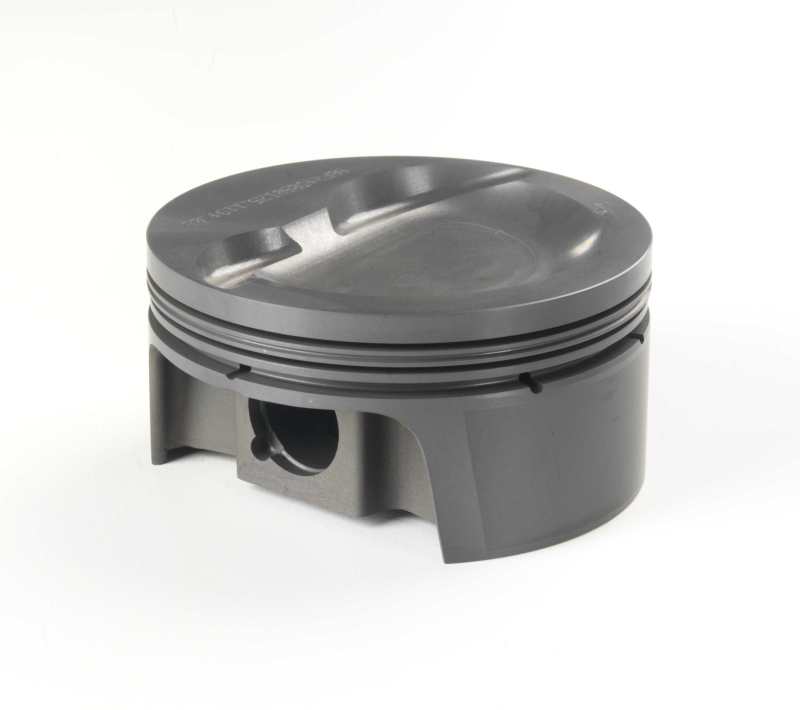

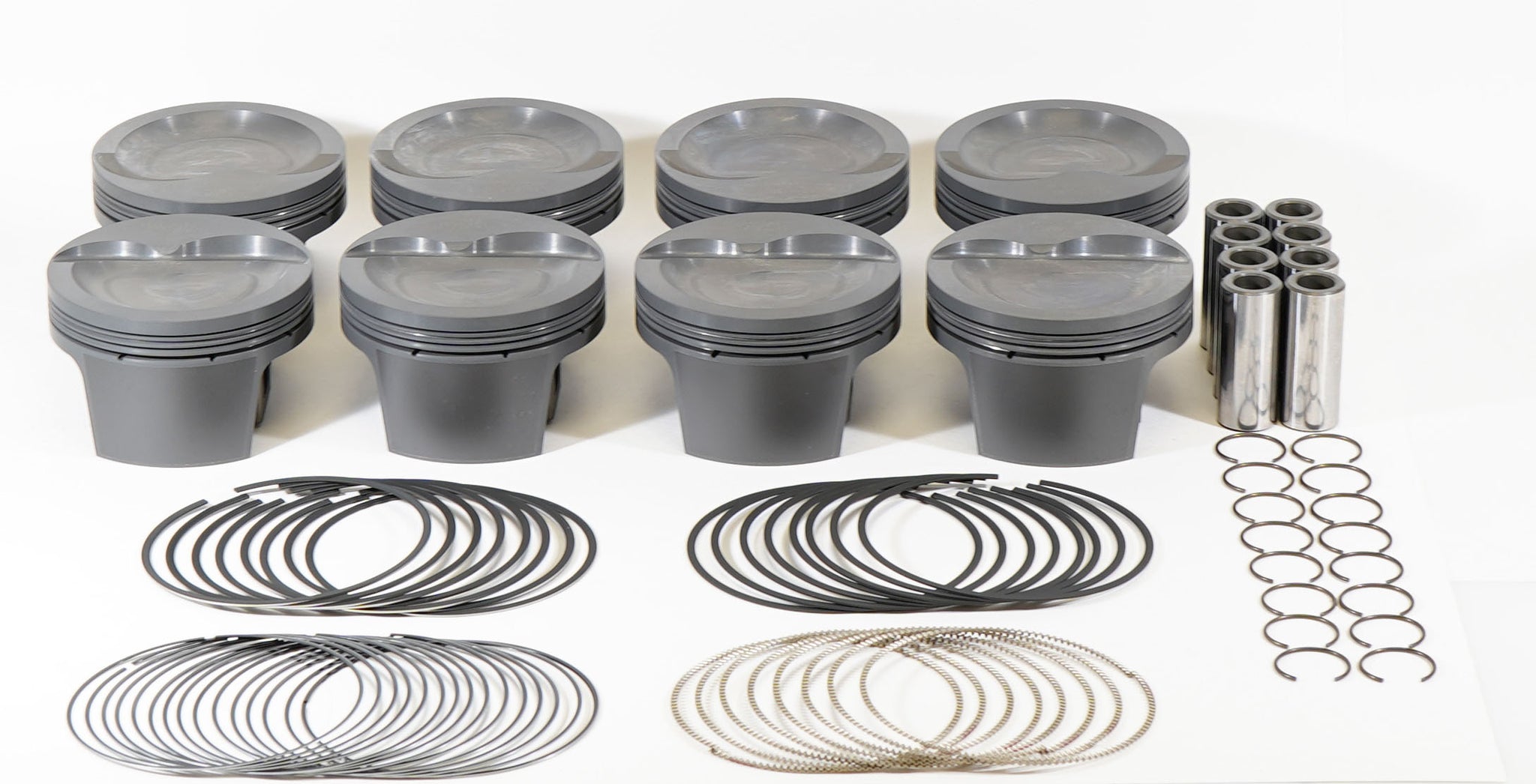

Mahle MS Piston Set SBF 410ci 4.040in Bore 4.000in Stroke 6.2in Rod .927 Pin -20cc 10.2 CR Set of 8 - 930248240

SKU: SKU: MHL930248240

Piston (set) - SMALL BLOCK FORD INVERTED DOME — 410cid 4.040 x 1.300CH, 4.000stroke,6.200rod,0.927pin,-20cc,422g,10.1CR, 4032

Application

Ford Small Block 410 cu in.

Features & Specs

  • Coatings: Phosphate + Grafal
  • Clip Style: Round Wire
  • Pin Wall Thickness: 0.168
  • UCR Material: 9254 Steel
  • UCR Coating: HV385
  • Rings Included: Y
  • Piston Style: Inverted Dome, w/ 2 valve reliefs
  • Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
  • Piston Material: Forged, 4032
  • Piston Mass: 422g
  • Pins Included: Y
  • Pin Style: Floating
  • Clips Included: Y
  • Pin Material: Steel
  • Pin Mass: 118g
  • Pin Length: 58.1mm
  • Pin Diameter: 23.55mm
  • Package Quantity: Sold as a set of 8
  • OCR Thickness: 2.0mm
  • OCR Tension: Standard
  • OCR Material: Chrome plated stainless steel
  • LCR Thickness: 1.0mm
  • LCR Material: 9254 Steel
  • LCR Coating: Phosphate
  • File Fit: Y
  • Crown Volume: -20cc
  • UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
