Mahle MS Piston Set SBF 394ci 4.040in Bore 3.85in Stroke 5.956in Rod .912 Pin -26cc 9.2 CR Set of 8 - 930248140

Piston (set) - SMALL BLOCK FORD INVERTED DOME — 395cid 4.040 x 1.600CH, 3.850stroke,5.956rod,0.912pin,-26cc,473g,9.2CR, 4032

Application

Ford Small Block 395 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• Pin Mass: 116g
• Pin Length: 58.1mm
• Pin Diameter: 23.165mm

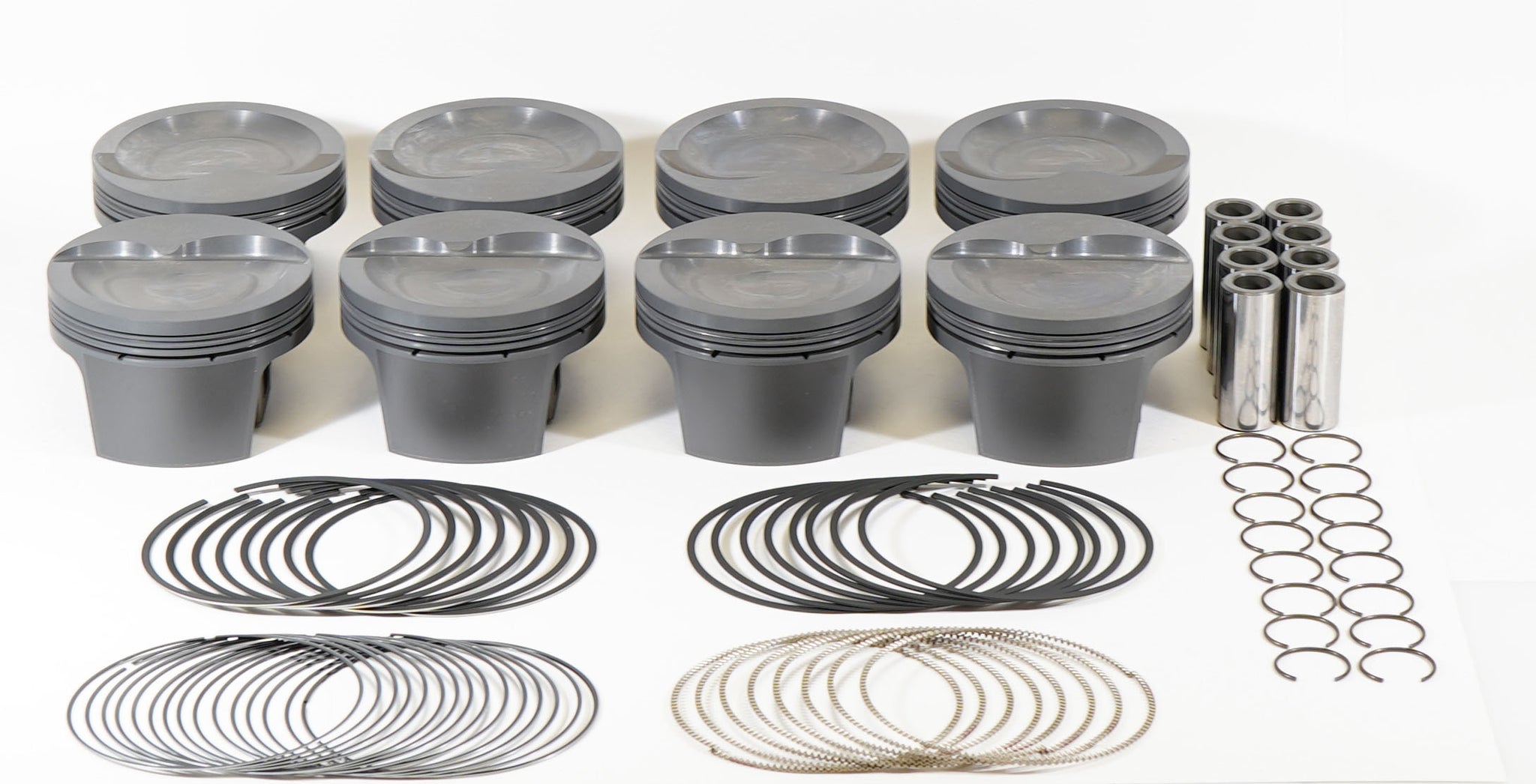

• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -26cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.171
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y

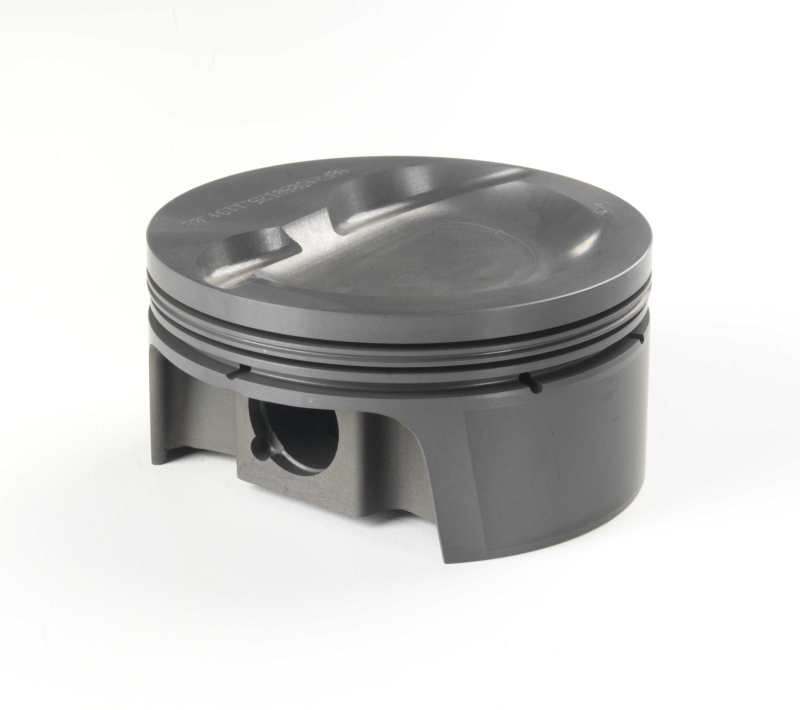

• Piston Style: Inverted Dome, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 473g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel

Country of Origin: US  |  Package: Sold as a set of 8
