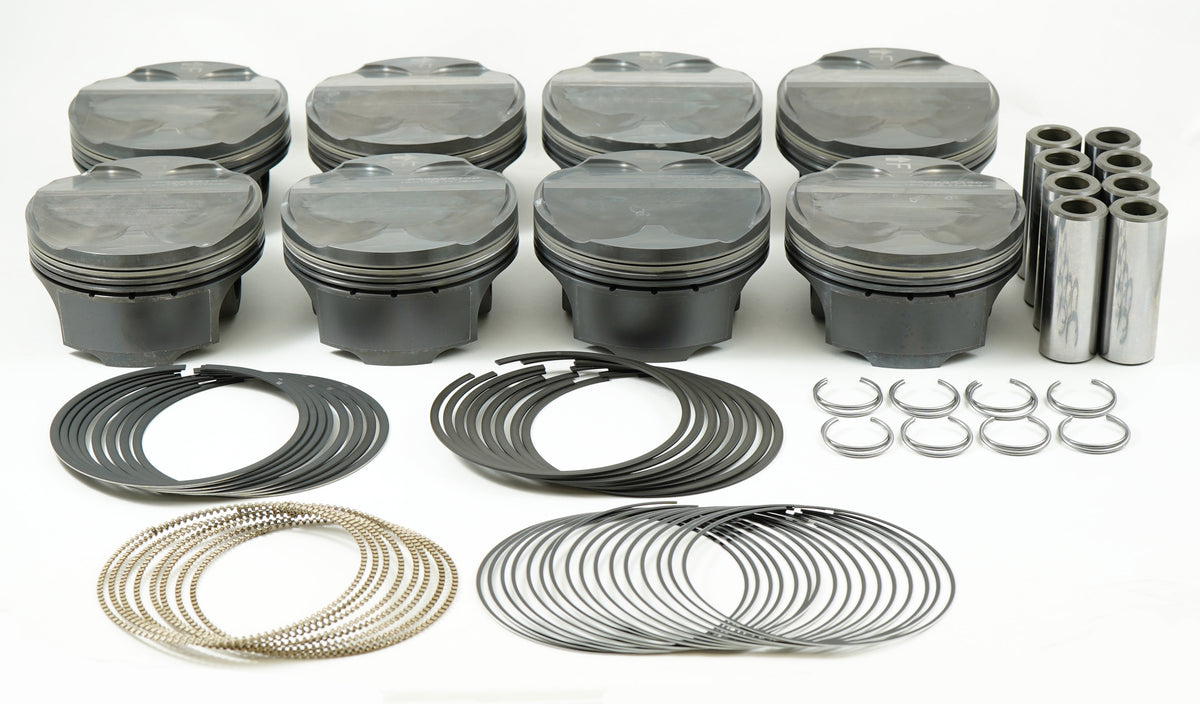

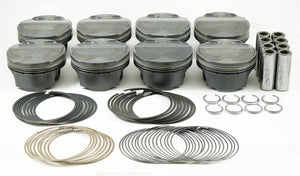

Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:5 CR Set of 8 - 930258130

Piston (set) - FORD 5.0L MODULAR 4-VALVE COYOTE — 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,10.2cc,401g,12.6CR, 2618

Application

Ford Coyote 302 cu in.

Features & Specs

• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Clip Style: Round Wire
• Pin Wall Thickness: 0.177
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dome, w/ 4 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 401g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 61.1mm
• Pin Diameter: 22.0mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 10.2cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
