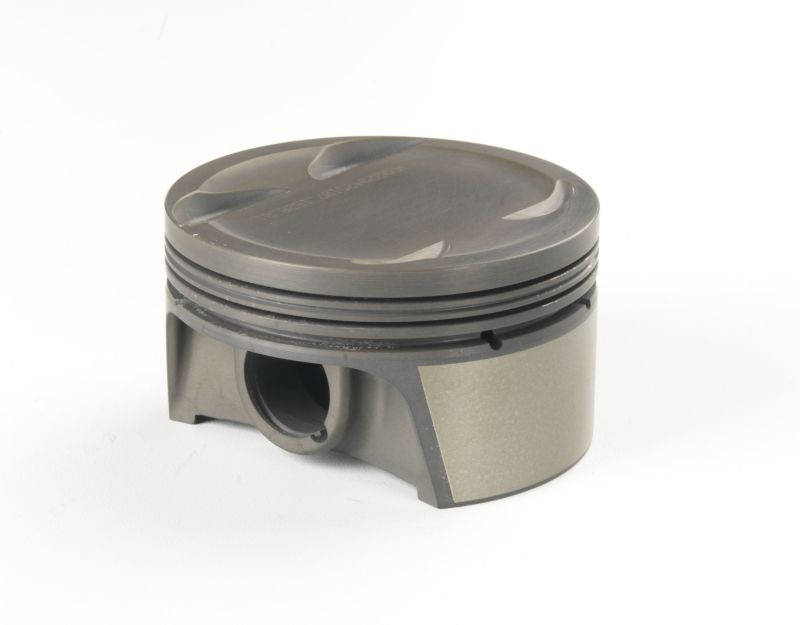

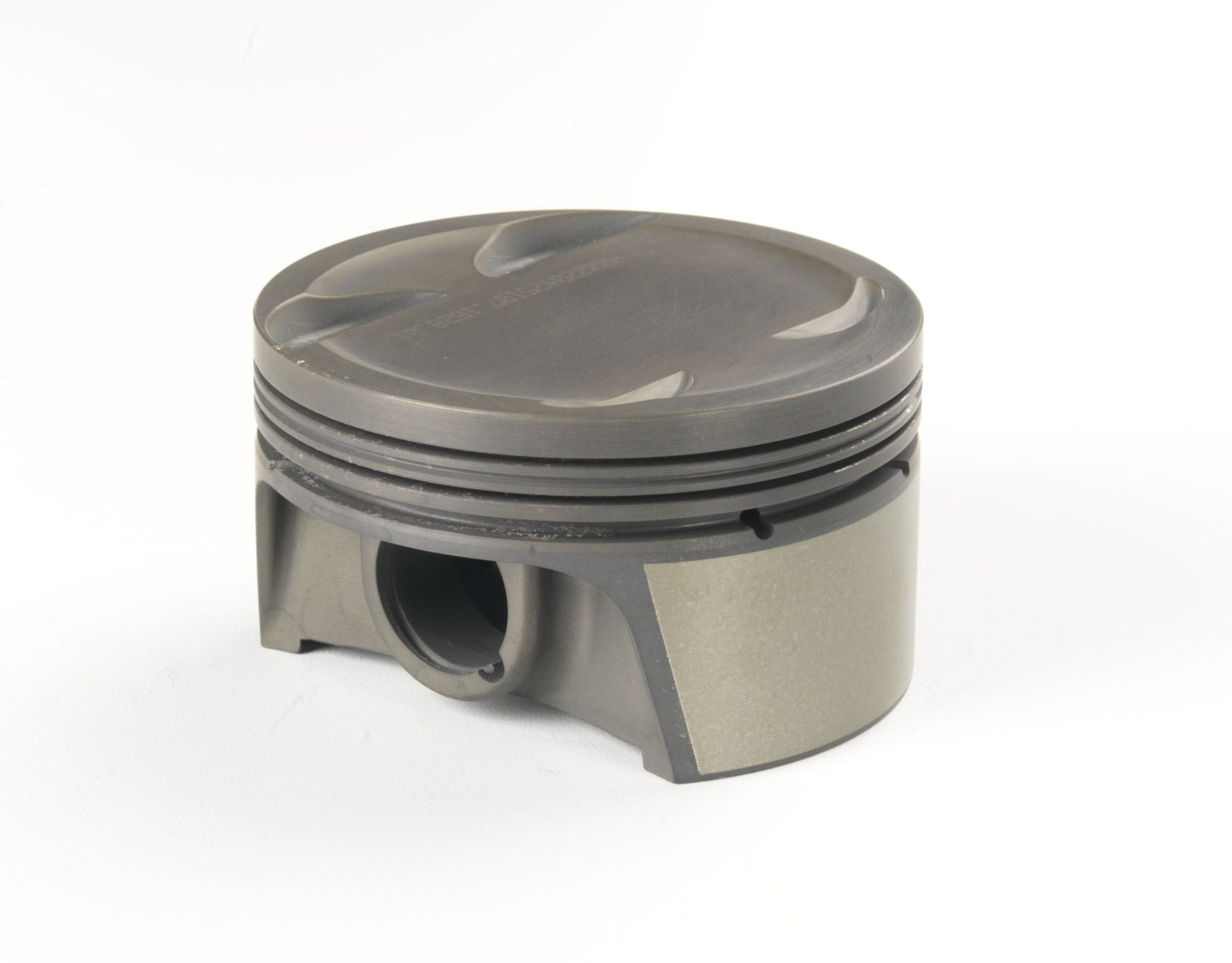

Mahle MS Piston Set Honda H22 Gold Series 87.25mm Bore 90mm Stroke 143mm Rod -7cc 9.0 CR 22mm Pin - 930081535

Piston (set) - HONDA H22 GOLD SERIES 2.2L — 87.25mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,-7.0cc,296g,9.2CR, 4032

Application

Honda H22 2.2L

Features & Specs

• FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY
• Clip Style: Round Wire
• Pin Wall Thickness: 0.197
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided
• Rings Included: Y
• Piston Style: Dish, w/ 4 valve reliefs
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
• Piston Material: Forged, 4032
• Piston Mass: 296g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 101g
• Pin Length: 52.0mm
• Pin Diameter: 22.0mm
• Package Quantity: Sold as a set of 4
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: N
• Crown Volume: -7.0cc
• UCR Thickness: 1.2mm

Country of Origin: US  |  Package: Sold as a set of 4
