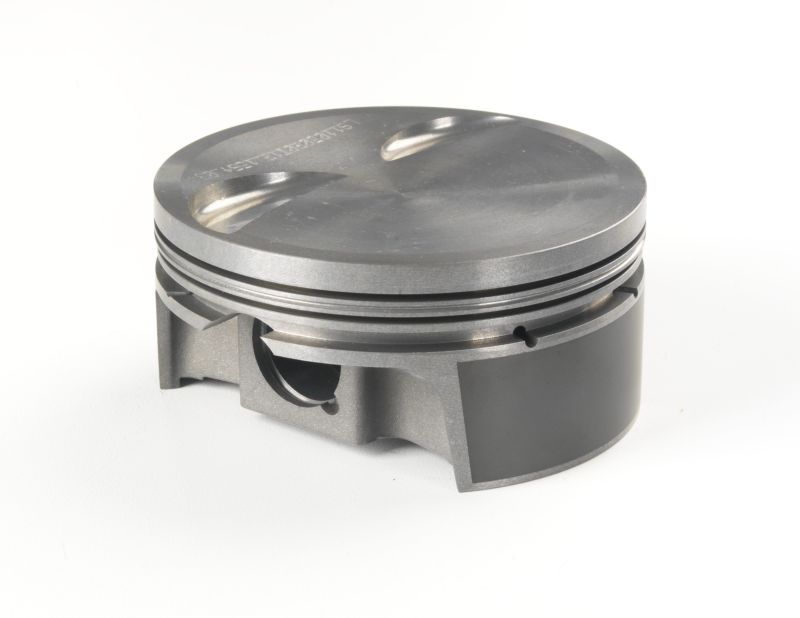

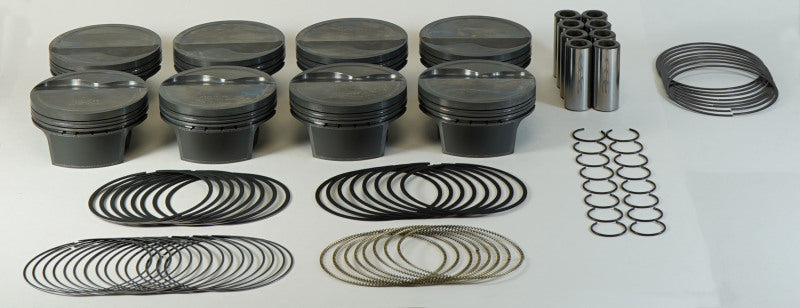

Mahle MS Piston Set GM LS 384ci 3.908in Bore 4in Stroke 6.125in Rod .927 Pin -14cc 10.1 CR Set of 8 - 930219808

Piston (set) - LS 5.7L FLAT TOP & DISH — 384cid 3.908 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,-14.0cc,384g,10.1CR, 2618

Application

Chevrolet LS 384 cu in.

Features & Specs

• Compatible with LS1/2/6 style cathedral port heads
• OCR Tension: Standard
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -14.0cc
• Clips Included: Y
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• OCR Thickness: 2.0mm
• Piston Style: Dish, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 384g
• Pins Included: Y
• Pin Wall Thickness: 0.168
• Pin Style: Floating
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 8
• OCR Material: Chrome plated stainless steel

Country of Origin: US  |  Package: Sold as a set of 8
