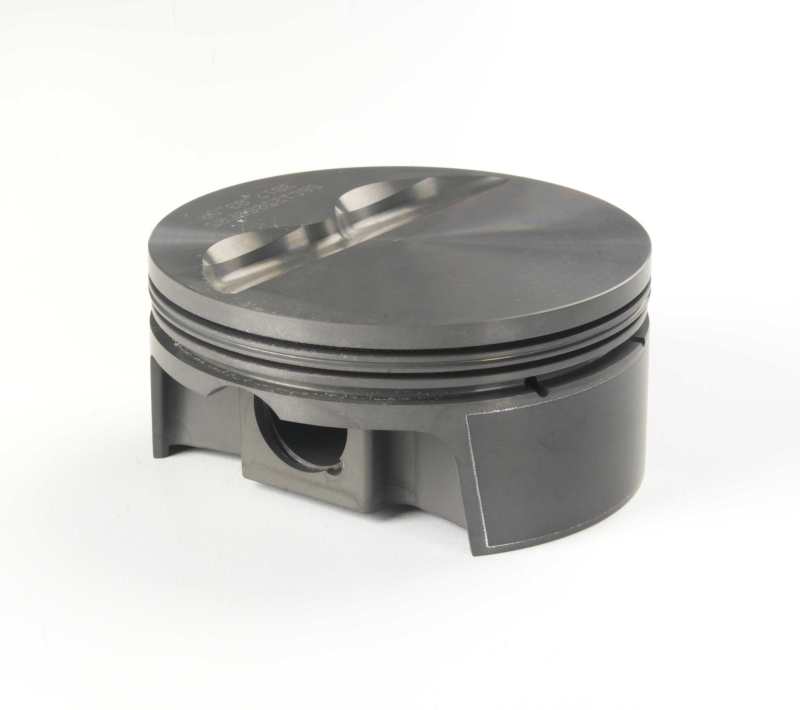

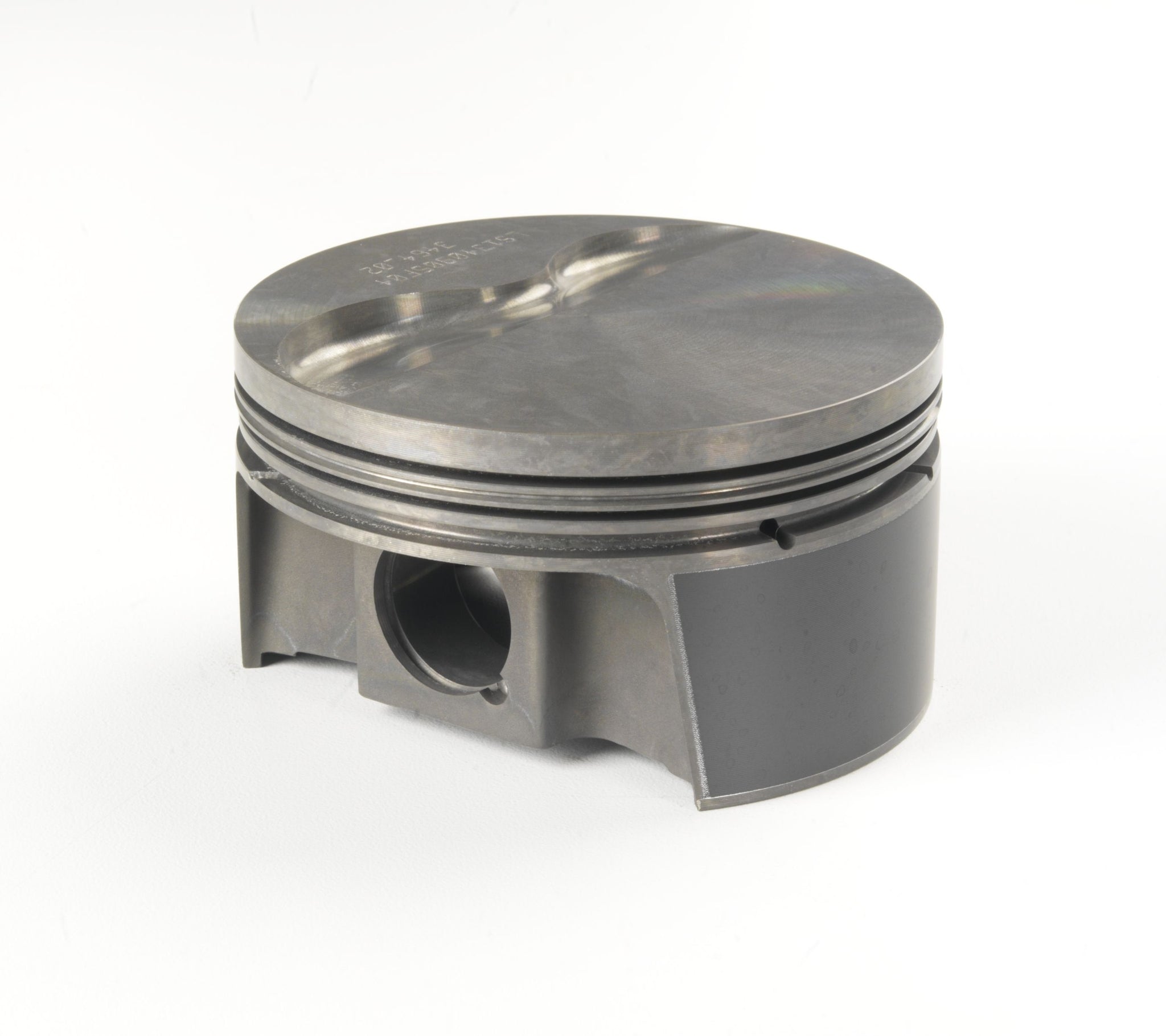

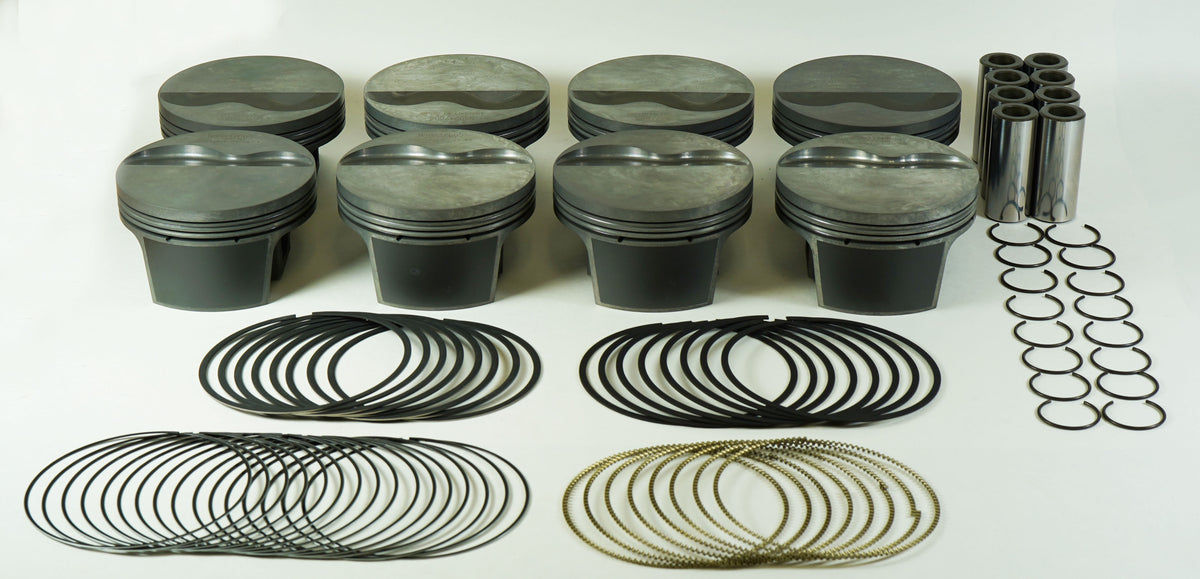

Mahle MS Piston Set GM LS 347ci 3.908in Bore 3.622in Stk 6.125in Rod .927 Pin -4cc 10.1 CR Set of 8 - 930217908

Piston (set) - LS 5.7L FLAT TOP & DISH — 348cid 3.908 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,409g,10.2CR, 4032

Application

Chevrolet LS 348 cu in.

Features & Specs

• Compatible with LS1/2/6 style cathedral port heads
• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 409g
• Pin Style: Floating
• Pin Wall Thickness: 0.168
• Crown Volume: -4.1cc
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Clips Included: Y
• Pins Included: Y
• Clip Style: Round Wire
• UCR Thickness: 1.0mm
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y

Country of Origin: US  |  Package: Sold as a set of 8
