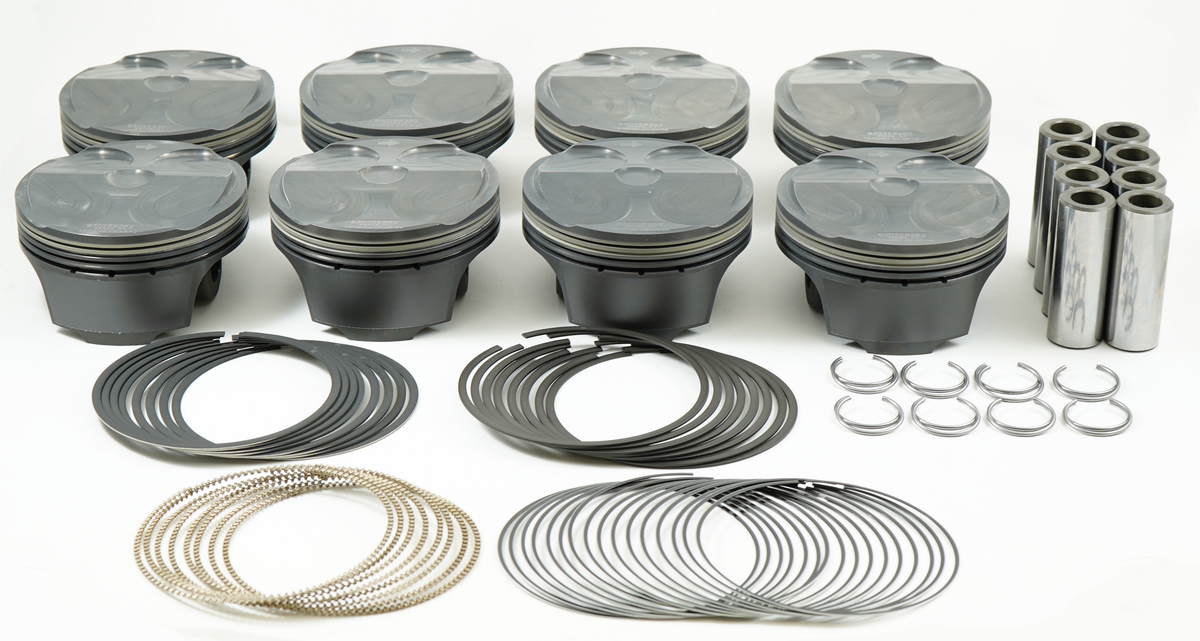

Mahle MS Piston Set Gen 3 Coyote 308ci 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR - 930258362

Piston (set) - FORD 5.0L MODULAR COYOTE Gen 3 — 308cid 3.662 x 1.167CH, 3.650stroke,5.933rod,0.866pin,8.4cc,373g,12.0CR, 2618

Application

Ford Coyote 308 cu in.

Features & Specs

• Direct Injected (2018+) DROP-IN FORGED REPLACEMENT ASSEMBLY
• OCR Tension: Standard
• OCR Material: Nitrided stainless steel
• LCR Thickness: 1.2mm
• LCR Material: 9254 Steel
• LCR Coating: Chrome
• File Fit: N
• Crown Volume: 8.4cc
• UCR Thickness: 1.2mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.177
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dome, w/ 4 valve reliefs
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 373g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 112g
• Pin Length: 58.1mm
• Pin Diameter: 22.0mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm

Country of Origin: US  |  Package: Sold as a set of 8
