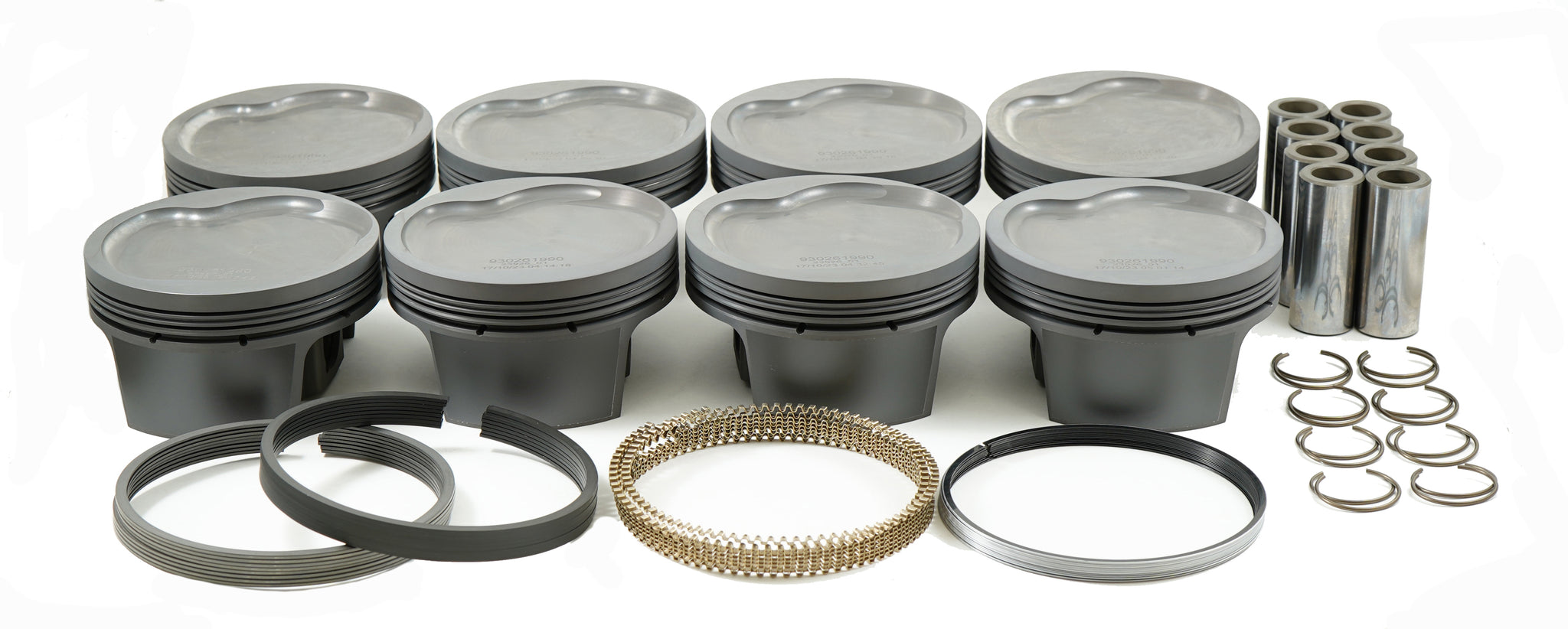

Mahle MS Piston Set Ford 514ci 4.44in Bore 4.150in Stroke 6.7in Rod 0.990 Pin -28cc 9.9CR - Set of 8 - 930261940

Piston (set) - BIG BLOCK FORD — 514cid 4.440 x 1.525CH, 4.150stroke,6.700rod,0.990pin,-28cc,560g,9.9CR, 4032

Application

Ford Big Block 514 cu in.

Features & Specs

• For the SCJ, KAASE P-51 / SR-71(r) & AFR 14 Deg. BULLIT CYLINDER HEADS
• Clip Style: Round Wire
• Pin Wall Thickness: 0.18
• UCR Material: Ductile Iron
• UCR Coating: Plasma Moly
• Rings Included: Y
• Piston Style: Inverted Dome, w/ INT valve relief
• Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
• Piston Material: Forged, 4032
• Piston Mass: 560g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 3.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.5mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -28cc
• UCR Thickness: 1.5mm

Country of Origin: US  |  Package: Sold as a set of 8
