Mahle MS Piston Set BBM 505ci 4.350in Bore 4.25in Stroke 7.1in Rod 0.990 Pin -8cc 11.5 CR Set of 8 - 929962550

Piston (set) - BIG BLOCK MOPAR (RB) / 440 FLAT TOP — 505cid 4.350 x 1.475CH, 4.250stroke,7.100rod,0.990pin,-8.1cc,519g,11.6CR, 4032

Application

Chrysler Big Block 505 cu in.

Features & Specs

• Coatings: Phosphate + Grafal
• OCR Thickness: 3.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.5mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -8.1cc
• UCR Thickness: 1.5mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.18
• UCR Material: Ductile Iron
• UCR Coating: Plasma Moly
• Rings Included: Y

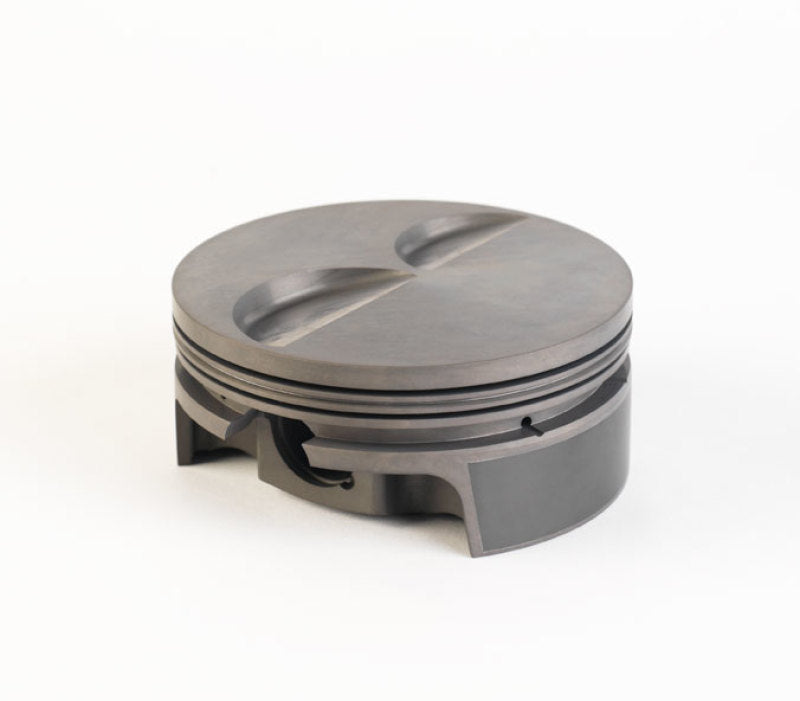

• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
• Piston Material: Forged, 4032
• Piston Mass: 519g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 8

Country of Origin: US  |  Package: Sold as a set of 8
