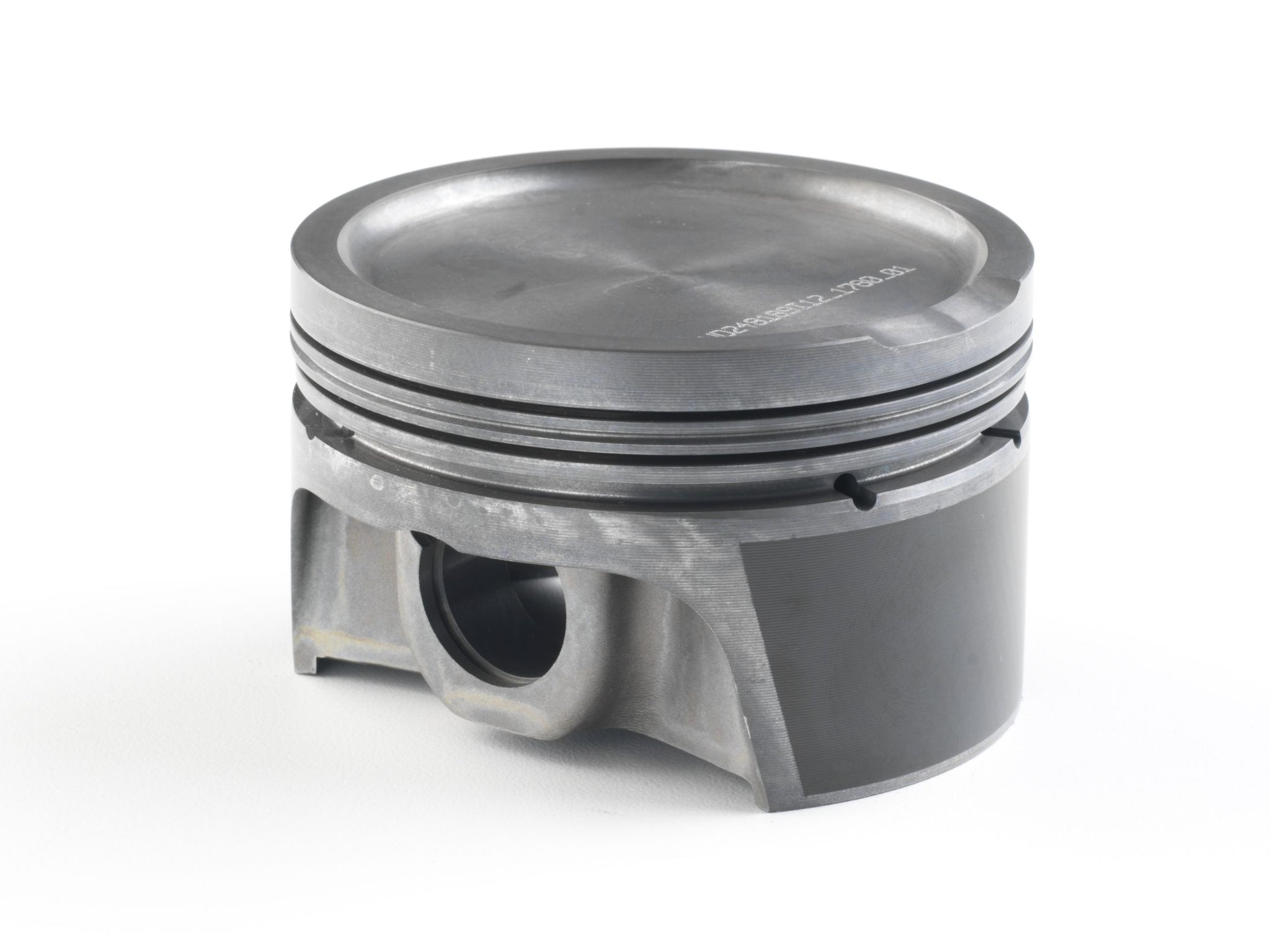

Mahle MS Piston Set Audi RS3 TTRS 2.5L (Set of 5) - 197915148

Piston (set) - AUDI DAZA / DNWA RS3 TTRS 2.5L TURBO — 82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,22mm pin,-5.0cc,322g,10.0CR, M142P

Application

Audi RS2 TTRS 2.5L

Features & Specs

• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• File Fit: N
• Crown Volume: -5.0cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.207
• UCR Material: Stainless Steel
• UCR Coating: Gas Nitrided
• Rings Included: Y
• Piston Style: Dish, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
• Piston Material: Forged, M142P
• Piston Mass: 322g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 126g
• Pin Length: 58.1mm
• Pin Diameter: 22.0mm
• Package Quantity: Sold as a set of 5
• OCR Thickness: 2.8mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.2mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate

Country of Origin: US  |  Package: Sold as a set of 5
