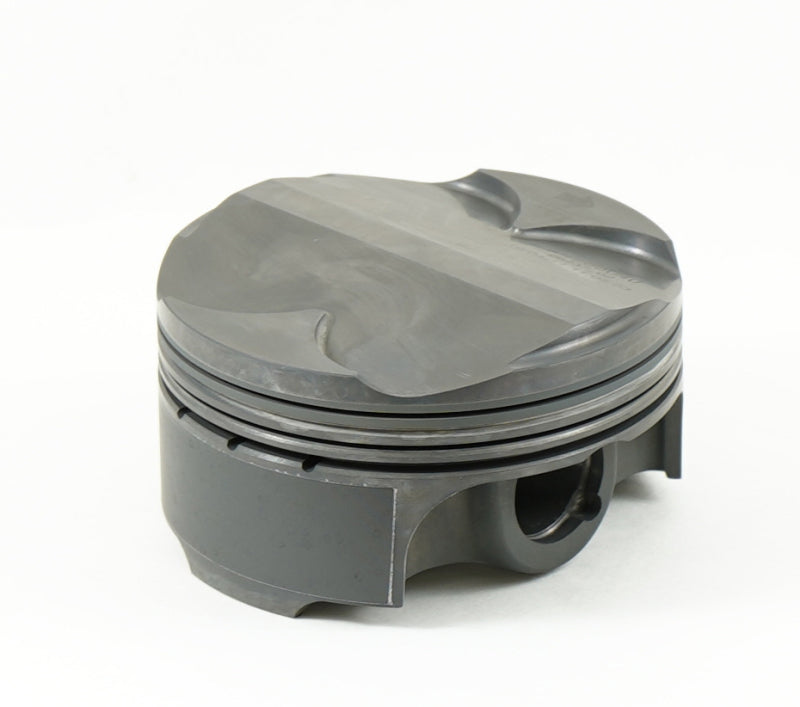

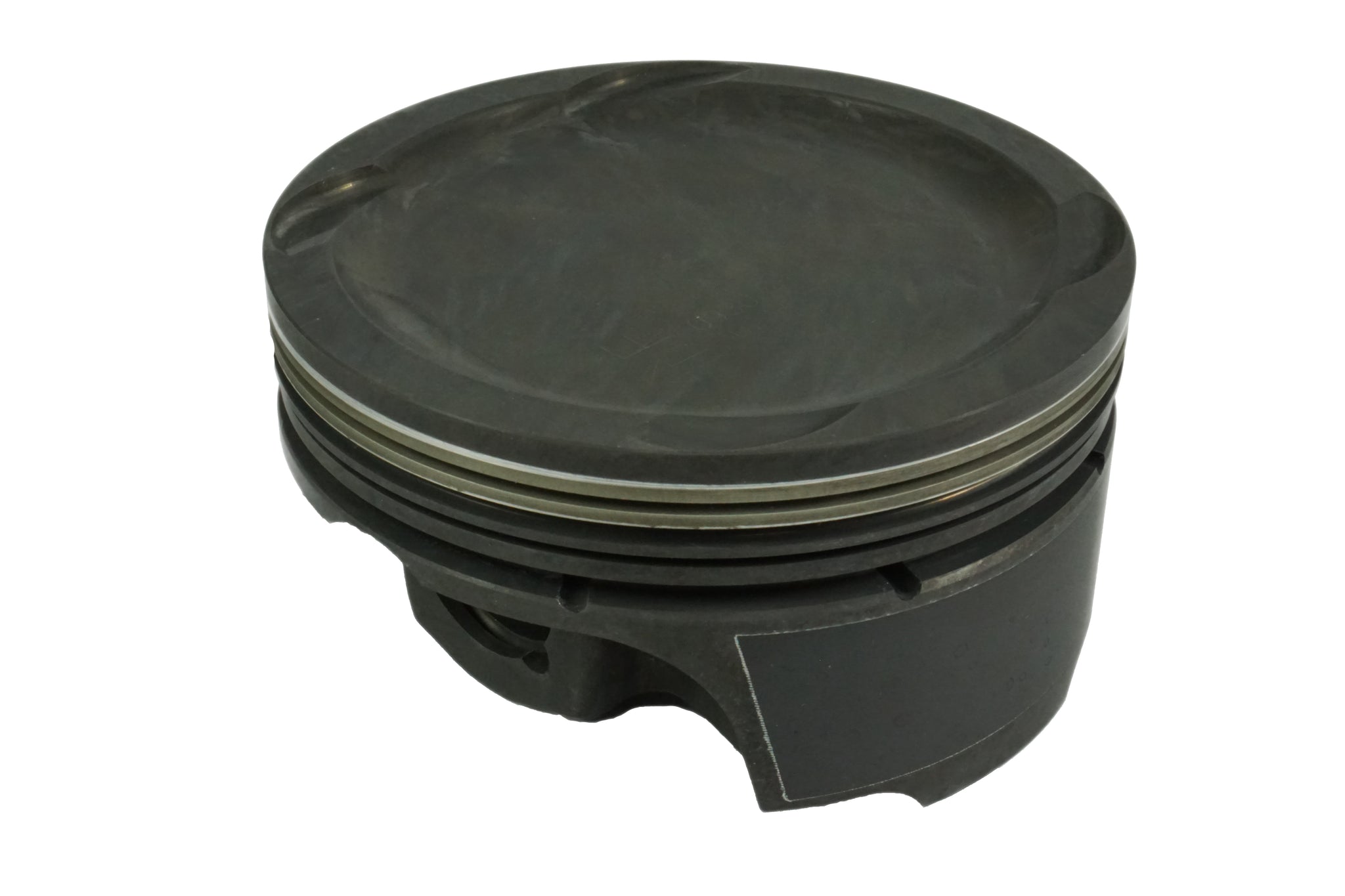

Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single - 930134030-1

SKU: SKU: MHL930134030-1

Piston (ea) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO — 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g,10.1CR, M142P, SINGLE PISTON

Application

Ford Coyote/Voodoo 302 cu in.

Features & Specs

  • Replacement piston for kit 930134030, bare piston only, components must be ordered separately
  • OCR Material: Chrome plated stainless steel
  • LCR Thickness: 1.0mm
  • LCR Material: 9254 Steel
  • LCR Coating: Phosphate
  • File Fit: Y
  • Crown Volume: -4.5cc
  • Clips Included: N
  • Clip Style: Round Wire
  • UCR Thickness: 1.0mm
  • UCR Material: 9254 Steel
  • Rings Included: N
  • Pin Length: 61.1mm
  • Piston Style: Dish, w/ 4 valve reliefs
  • Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
  • Piston Material: Forged, M142P
  • Piston Mass: 383g
  • Pins Included: N
  • Pin Wall Thickness: 0.177
  • Pin Style: Floating
  • Pin Material: Steel
  • Pin Mass: 118g
  • Pin Diameter: 22.0mm
  • UCR Coating: HV385
  • Package Quantity: Sold as a set of 1
  • OCR Thickness: 2.0mm
  • OCR Tension: Standard

Country of Origin: US  |  Package: Sold as a set of 1
