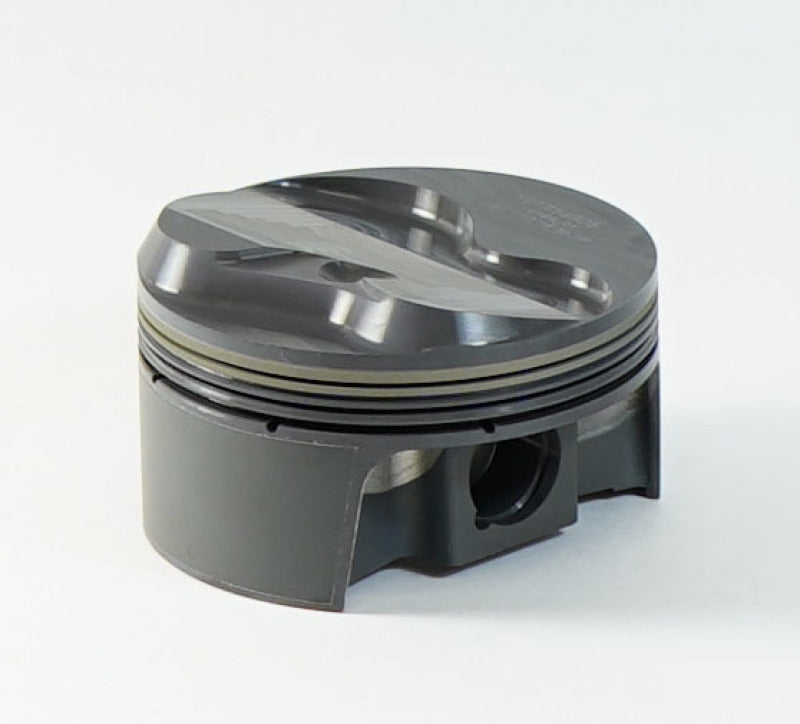

Mahle MS Piston GM LS 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin 12cc 12.0 CR - Single - 197714830-1

Piston (ea) - LS 6.0L & 6.2L DOME — 370cid 4.030 x 1.304CH, 3.622stroke,6.125rod,0.927pin,12.0cc,477g,12.4CR, 2618, SINGLE PISTON

Application

Chevrolet LS 370 cu in.

Features & Specs

• Replacement piston for kit 197714830, bare piston only, components must be ordered separately
• Clip Style: Round Wire
• Pin Wall Thickness: 0.168
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: N
• Piston Style: Dome, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 477g
• Pins Included: N
• Pin Style: Floating
• Clips Included: N
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 1
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 12.0cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 1
