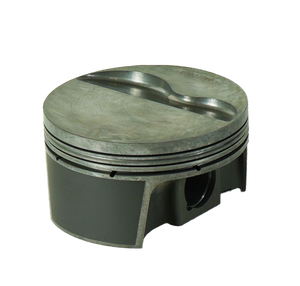

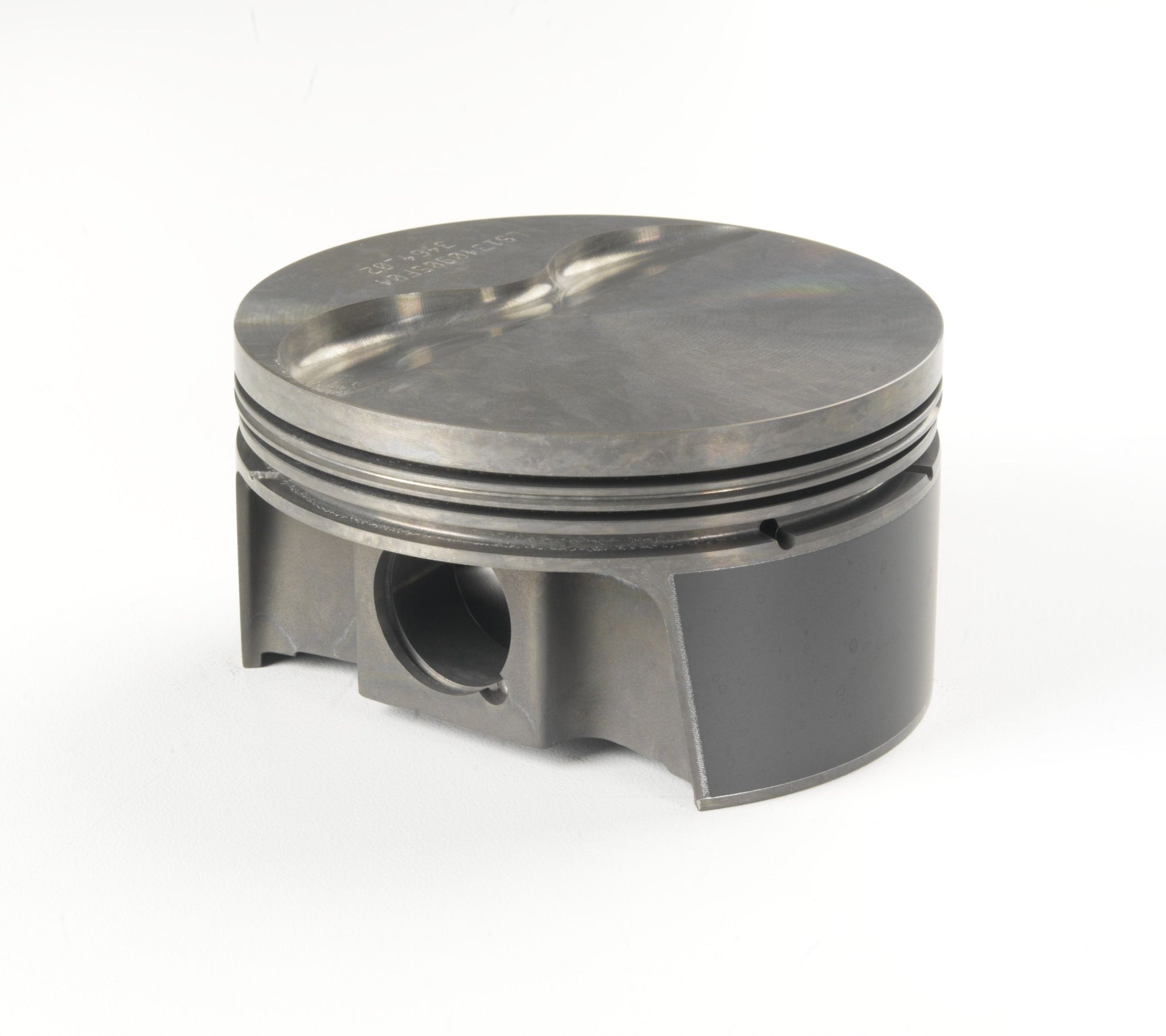

Mahle MS Piston GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR - Single - 930217605-1

Piston (ea) - LS 5.7L FLAT TOP & DISH — 347cid 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g,10.2CR, 4032, SINGLE PISTON

Application

Chevrolet LS 347 cu in.

Features & Specs

• Replacement piston for kit 930217605, bare piston only, components must be ordered separately
• Clip Style: Round Wire
• Pin Wall Thickness: 0.177
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: N
• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 4032
• Piston Mass: 410g
• Pins Included: N
• Pin Style: Floating
• Clips Included: N
• Pin Material: Steel
• Pin Mass: 125g
• Pin Length: 58.1mm
• Pin Diameter: 24.0mm
• Package Quantity: Sold as a set of 1
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -4.1cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 1
