Mahle MS Piston Chrysler Big Block 3.750Stroke 110mm Bore Rod - Single - 929962750-1

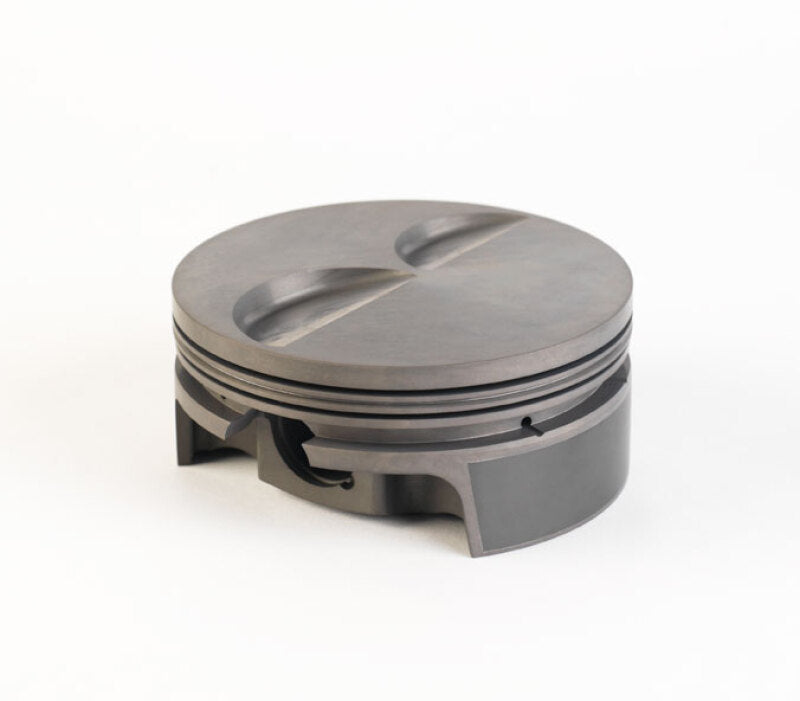

Piston (ea) - BIG BLOCK MOPAR (RB) / 440 FLAT TOP — 446cid 4.350 x 2.065CH, 3.750stroke,6.760rod,0.990pin,-8.1cc,608g,10.3CR, 4032, SINGLE PISTON

Application

Chrysler Big Block 446 cu in.

Features & Specs

• Replacement piston for kit 929962750, bare piston only, components must be ordered separately
• Piston Style: Flattop, w/ 2 valve reliefs
• Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
• Piston Material: Forged, 4032
• Piston Mass: 608g
• Pins Included: N
• Pin Style: Floating
• Clips Included: N
• Pin Material: Steel
• Pin Mass: 148g
• Pin Length: 64.0mm
• Pin Diameter: 25.146mm
• Package Quantity: Sold as a set of 1
• OCR Thickness: 3.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.5mm
• LCR Material: Cast Iron
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: -8.1cc
• UCR Thickness: 1.5mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.18
• UCR Material: Ductile Iron
• UCR Coating: Plasma Moly
• Rings Included: N

Country of Origin: US  |  Package: Sold as a set of 1
