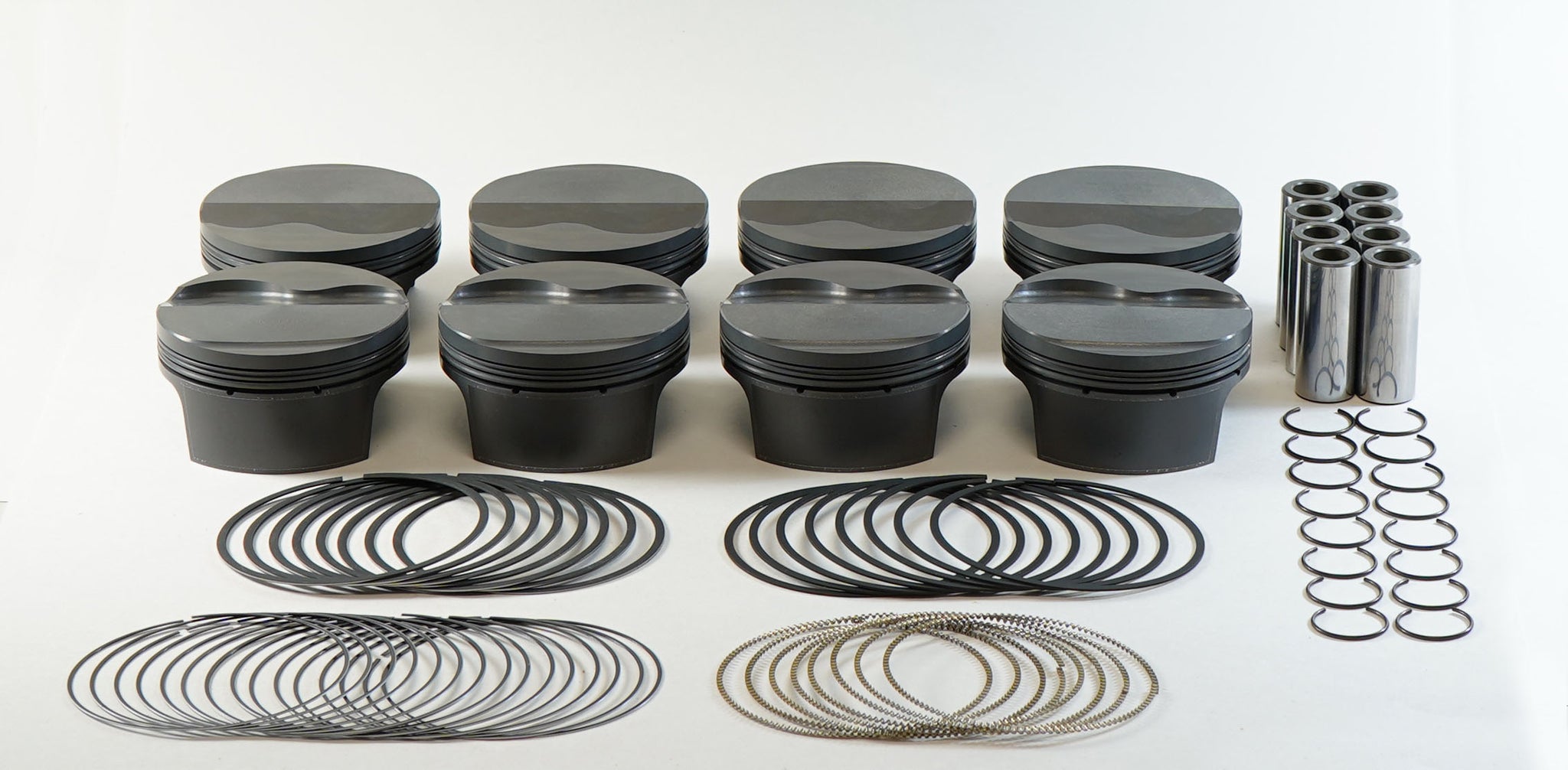

Mahle MS Chevrolet LS 5.3L 329cid 3.800in Bore x 1.299CH 3.622 Stroke 14.0cc 12.5 CR - Pist Set of 8 - 930220100

Piston (set) - LS 5.3L DOME - compatible with LS1/2/6 style cathedral port heads — 329cid 3.800 x 1.299CH, 3.622stroke,6.125rod,0.927pin,14.0cc,457g,12.5CR, 2618

Application

Chevrolet LS 329 cu in.

Features & Specs

• Lateral gas ports, Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Pin Material: Steel
• Pin Mass: 128g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm
• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 14.0cc
• UCR Thickness: 1.0mm
• Clip Style: Round Wire
• Pin Wall Thickness: 0.188
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y
• Piston Style: Dome, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 457g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y

Country of Origin: US  |  Package: Sold as a set of 8
