ICON Impact Front Bumper Fairlead Mount - 25229

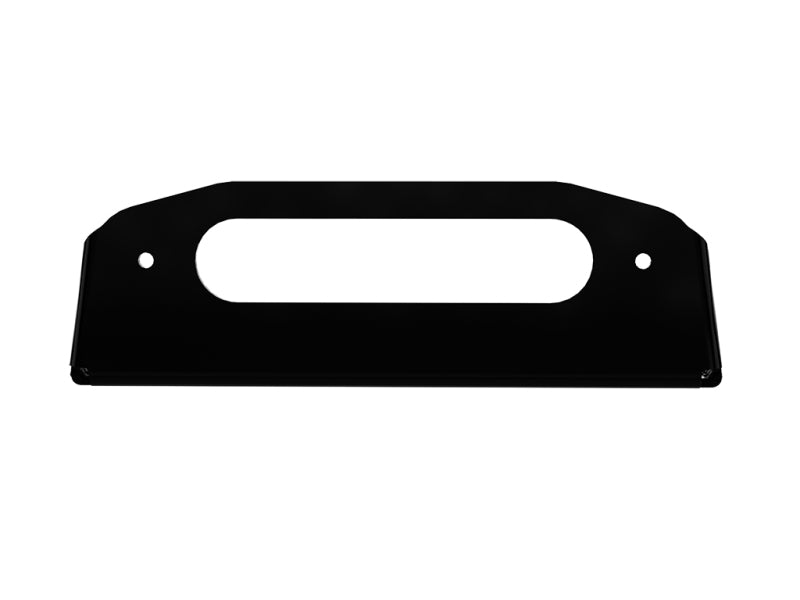

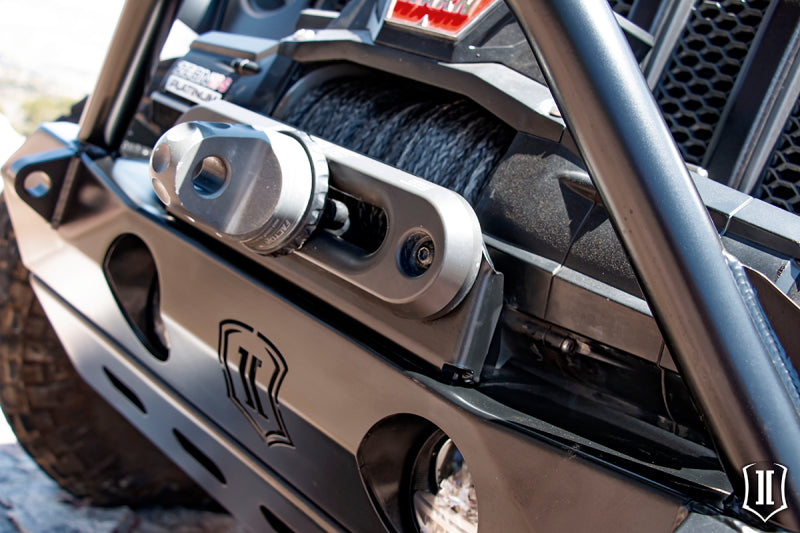

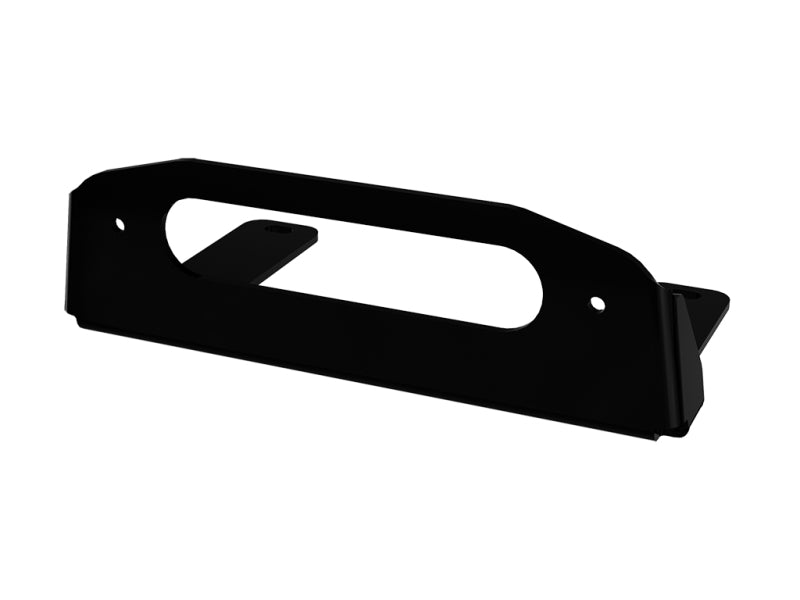

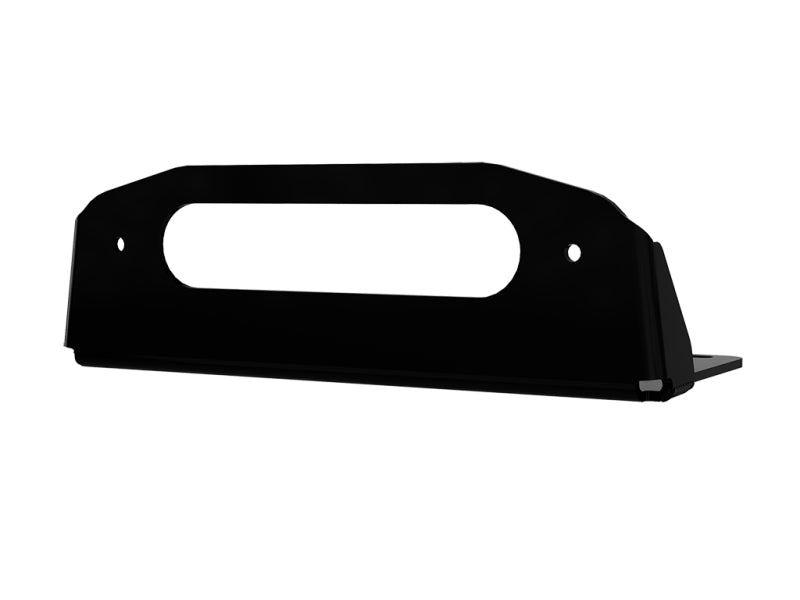

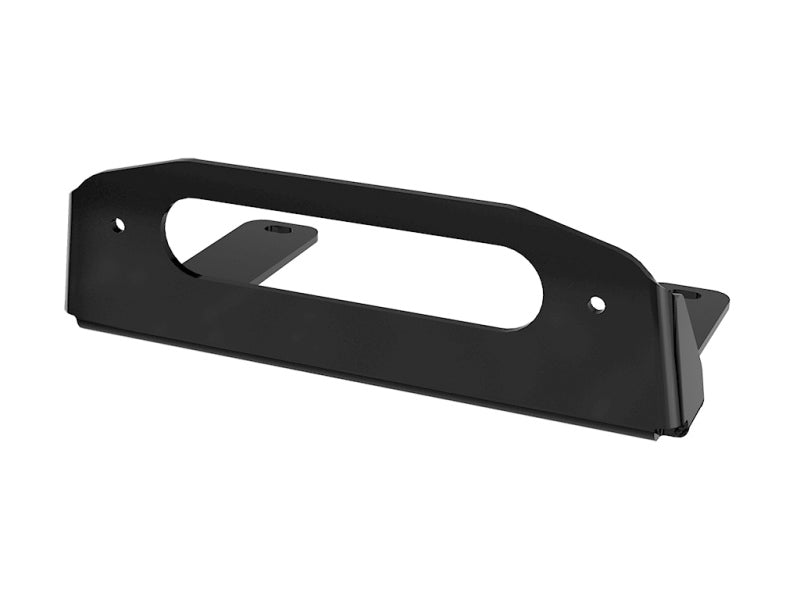

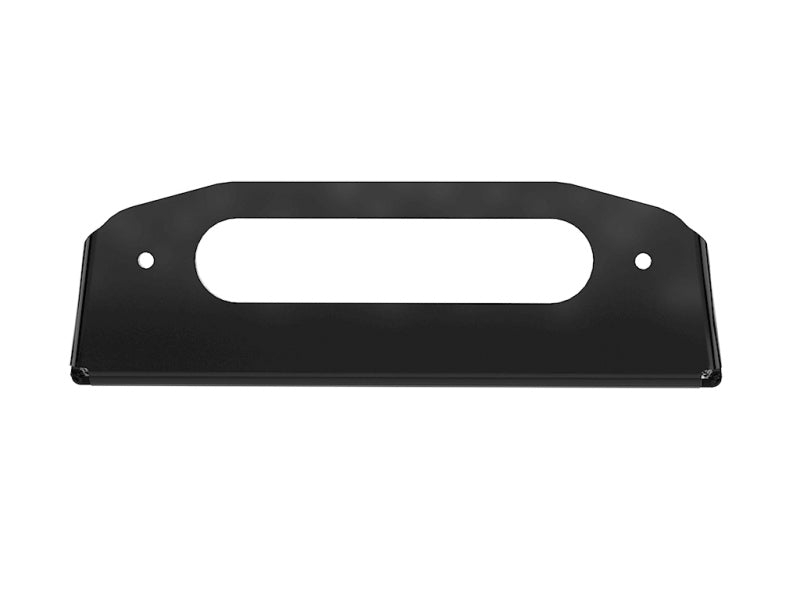

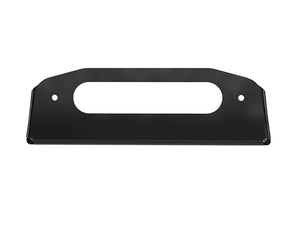

The ICON Impact Winch Fairlead Mount provides an extremely tough mounting solution for your roller or Hawse winch fairlead. Crafted from durable 3/16” steel, CNC laser cut and precision brake-formed with strengthening gussets on either side, and finished in durable multi-stage black powder coat. The Fairlead Mount is compatible with most winches using the universal 10" X 4-1/2" mounting bolt pattern, and with standard-width fairleads using a 10" bolt spacing. The Fairlead Mount installs between the bumper surface and the winch, using the winch's mounting bolts. Compatible with ICON Impact PRO Series or COMP Series Impact bumpers (except Recessed Winch models, which feature integrated fairlead mounting), as well as other manufacturers' top-mount winch-ready bumpers.

Features

• Rugged 3/16” steel construction with dual lateral edge returns for added strength
• CNC laser cut and brake-formed
• Works with roller or Hawse winch fairleads
• Easy do-it-yourself installation
• Durable multi-stage semi-gloss black powder coat finish
• ICON Impact Series Limited Lifetime Warranty

Winch mount capable bumper required for installation

Fits winches with the common 10” x 4-1/2” mounting bolt pattern

Fits winch fairleads with the common 10" bolt spacing (does not fit narrow or "comp" fairleads)

Not compatible with front-mounting winches such as the Warn 8274

Specifications

Documents

• INST_25229_REVA.pdf
