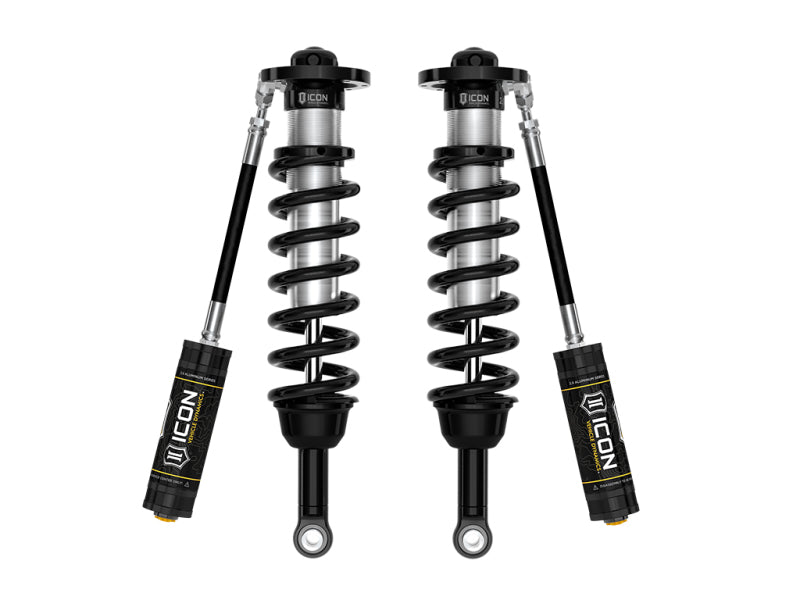

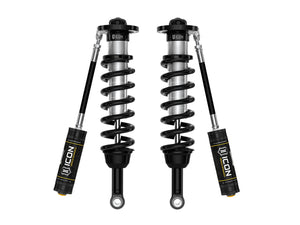

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Features
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.
APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
Specifications
| Add-On Part |
198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part |
55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part |
55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part |
252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping |
NO |
| Body Diameter |
2.5 IN |
| Coil Over Springs Included |
Yes |
| Compressed Length |
16.73 IN |
| Cylinder Color |
Silver |
| Cylinder Finish |
Cadmium Plated |
| Damping Type |
Oil |
| Dust Shield |
No |
| Extended Length |
21.68 IN |
| Gas Charged |
Yes |
| Lower Mount Type |
Eyelet |
| Material |
Steel |
| Material |
Aluminum |
| Maximum Lift |
2.5 IN |
| Minimum Lift |
1 IN |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels |
17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Reservoir Style |
Remote |
| Self-Leveling |
No |
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter |
0.875 IN |
| Shock Absorber Body End Measuring Point |
Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point |
Center of Eylet |
| Spring Rate Type |
Linear |
| Travel Length |
4.96 IN |
| Upper Mount Type |
Mounting Plate |
| Valving Type |
Digressive |
