ICON Part # ICO58796C

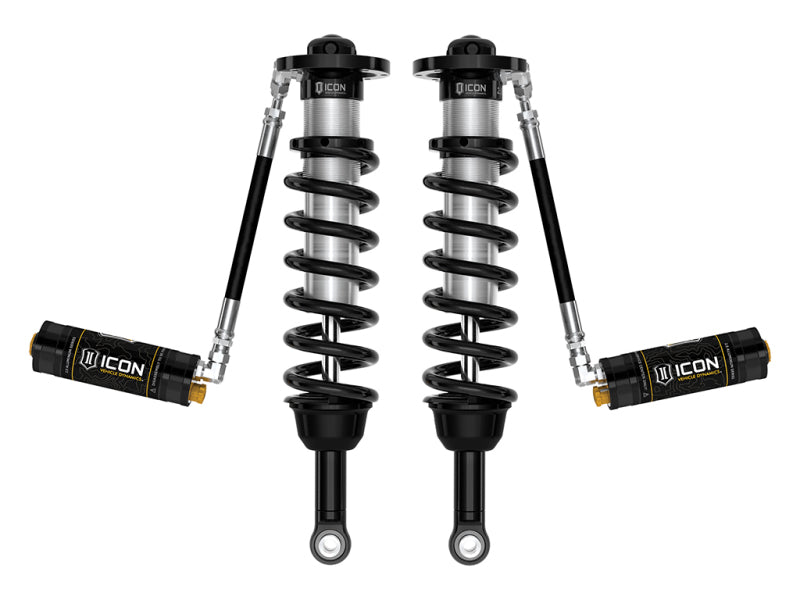

ICON 2025 Toyota 4Runner 2WD Front 2.5 VS RR CDCV Coilover Kit - 58796C

Earn 3,051 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Installation Instructions

  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • Fully rebuildable and re-tunable
  • Vehicle specific shock length optimized for 2WD models yields maximum front wheel travel
  • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
  • 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection

  • Coil Over Springs Included: Yes
  • Compressed Length: 19.2 in.
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Manual
  • Damping Type: Oil
  • Extended Length: 25.25 in.
  • Front Spring Rate: 550 lb/in
  • Gas Charged: Yes
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3 in.
  • Maximum Ride Height Raising Distance: 3 in.
  • OEM Wheels & Tires Fitment: Yes
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 in.
  • Remote Reservoir: Yes
  • Shaft Diameter: 0.875 in.
  • Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center of Eyelet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 6.05 in.
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
