ICON Part # ICO58693

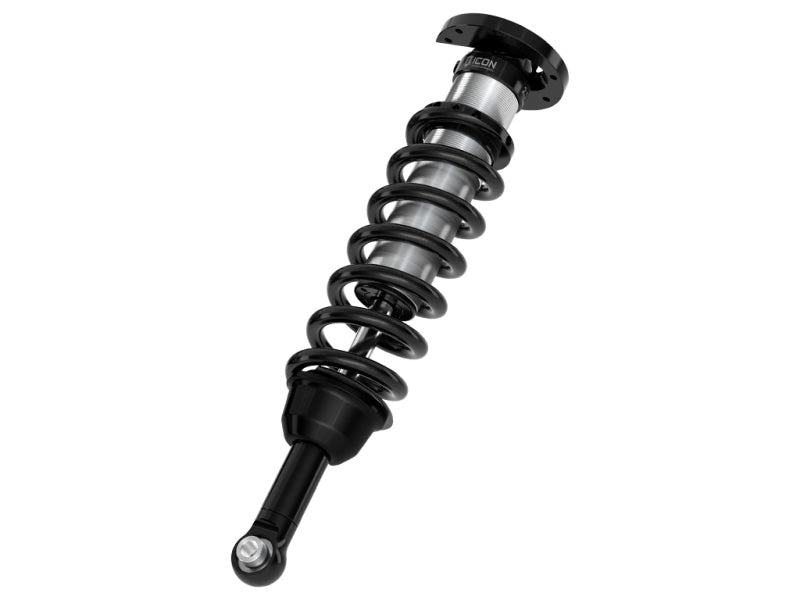

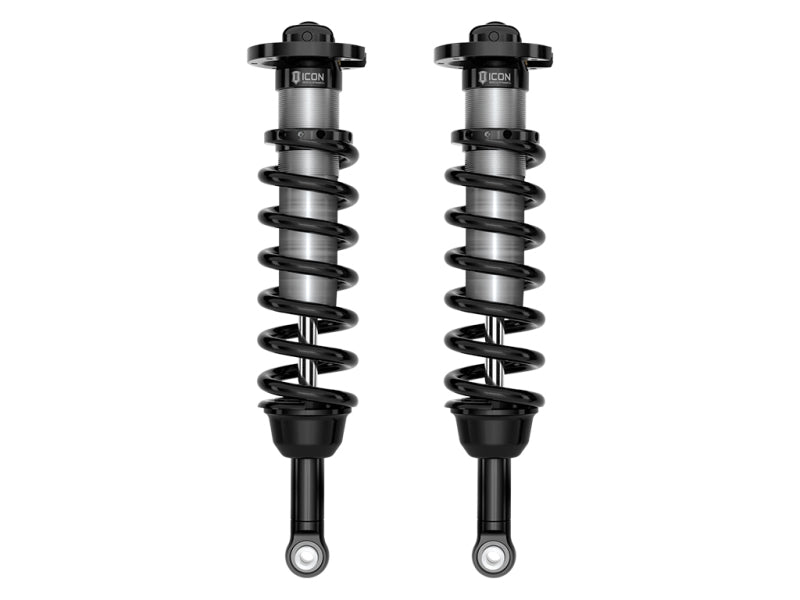

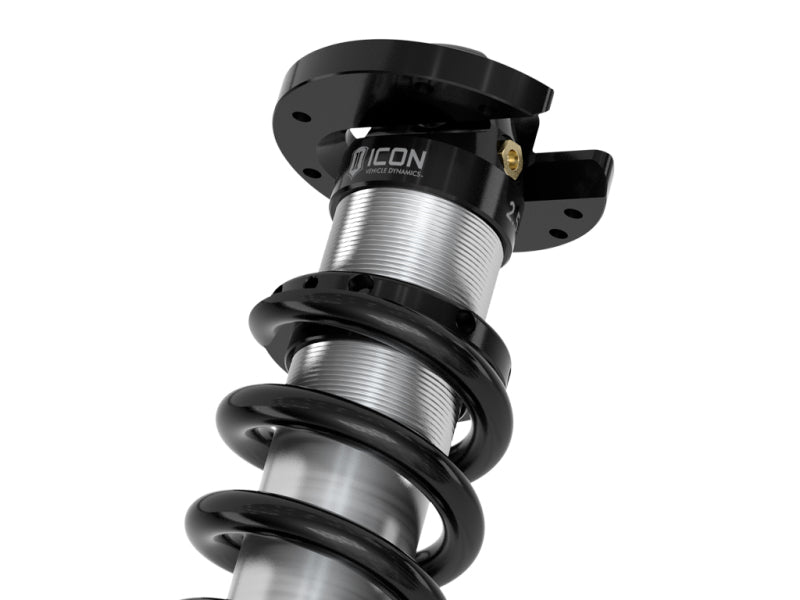

ICON 2025 Toyota 4Runner 2WD Front 2.5 VS IR Coilover Kit - 58693

Earn 2,099 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Installation Instructions

  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • Vehicle specific shock length optimized for 2WD models yields maximum front wheel travel
  • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
  • 2.5" diameter shock bodies with internal reservoirs for consistent performance
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable

  • Adjustable Ride Height: Yes
  • Body Diameter: 2.5 in.
  • Coil Over Springs Included: Yes
  • Compressed Length: 19.2 in.
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Type: Oil
  • Extended Length: 25.25 in.
  • Front Spring Rate: 550 lb/in
  • Gas Charged: Yes
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Assembled: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3 in.
  • Maximum Ride Height Raising Distance: 3 in.
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 6.05 in.
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Shaft Diameter: 0.875 in.
  • Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center of Eyelet
  • Spring Color: Black
