ICON Part # ICO57872P

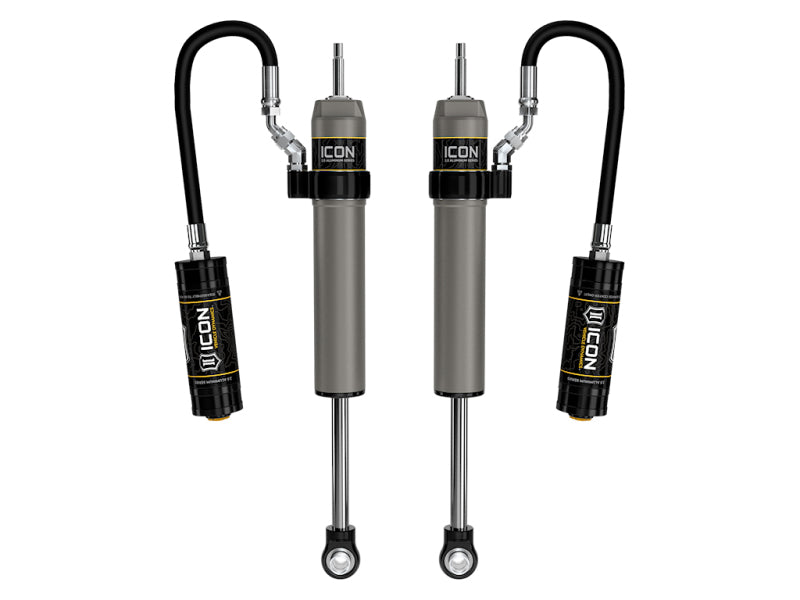

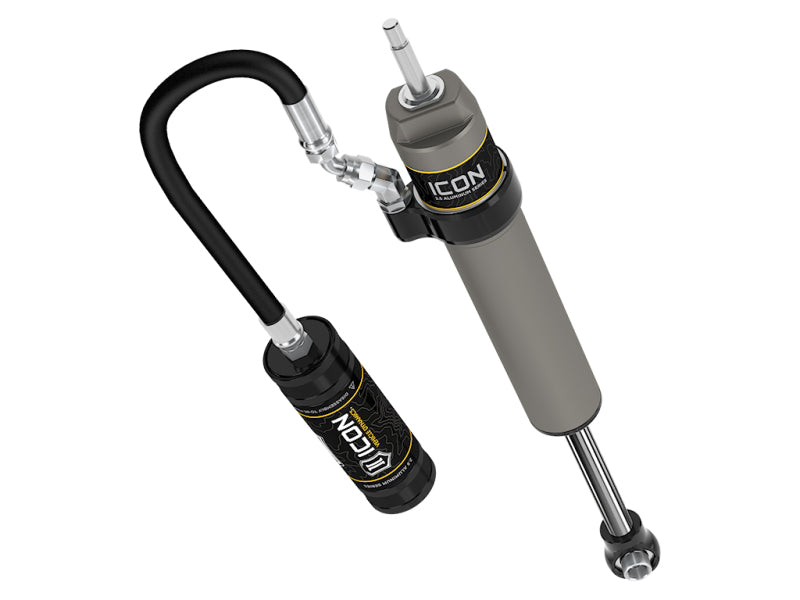

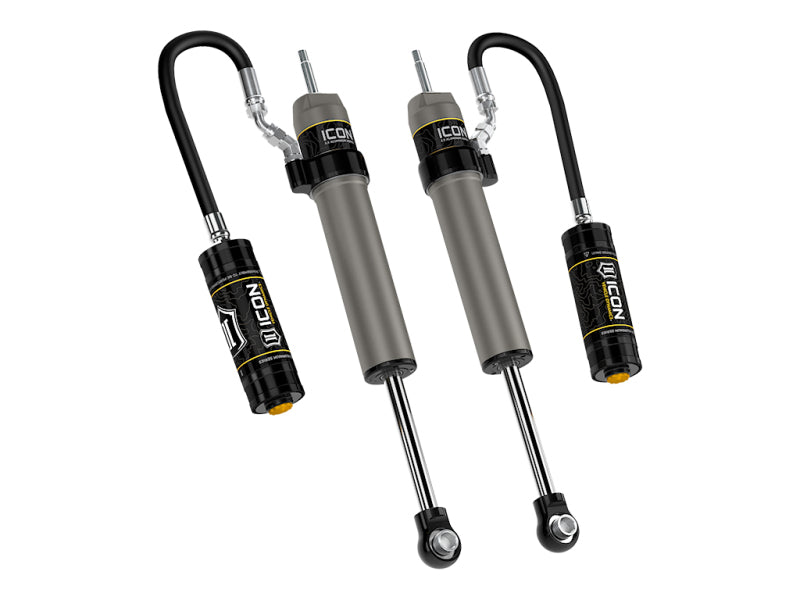

ICON 2025 Toyota 4Runner 0-3in Rear 2.5 VS Aluminum Series Remote Reservoir Shock - 57872P

Earn 1,581 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV.

Installation Instructions

  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Rubber dust boot included for added shaft protection

  • Boot Included: Yes
  • Bore Diameter: 2.25 in.
  • Damping Type: Oil
  • Extended Length: 26.43 in.
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Compressed Length: 16.08 in.
  • Cylinder Color: Gray
  • Cylinder Diameter: 2.5 in.
  • Stroke Length Rear: 10.36 in.
  • Upper Mount Type: Stem
  • Valving Type: Digressive
  • Shock Absorber Rod End Measuring Point: Center of Eylet
  • Shock Absorber Body End Measuring Point: Shoulder of Stem
  • Shaft Material: Chrome
  • Shaft Diameter: 0.875 in.
