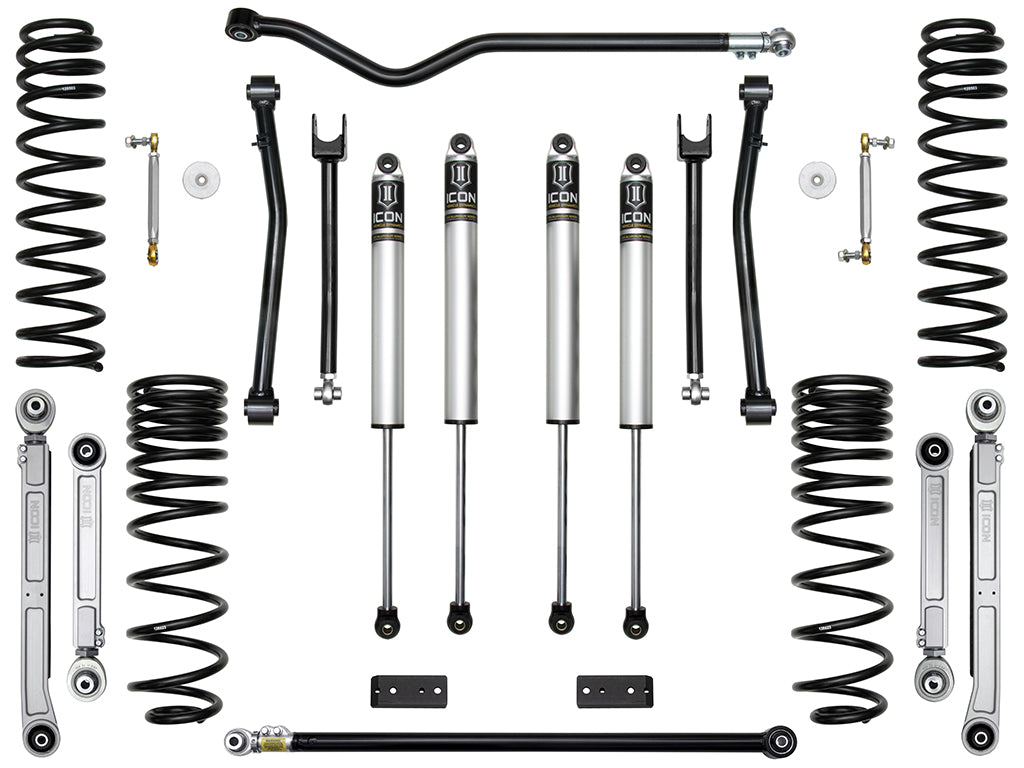

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Features
- 2.5" lift height
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.0 Aluminum Series shocks with vehicle specific valving
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
Ships In Multiple Boxes
Specifications
| Add-On Part |
22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT |
| Add-On Part |
191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part |
22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Tires |
35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071) |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
