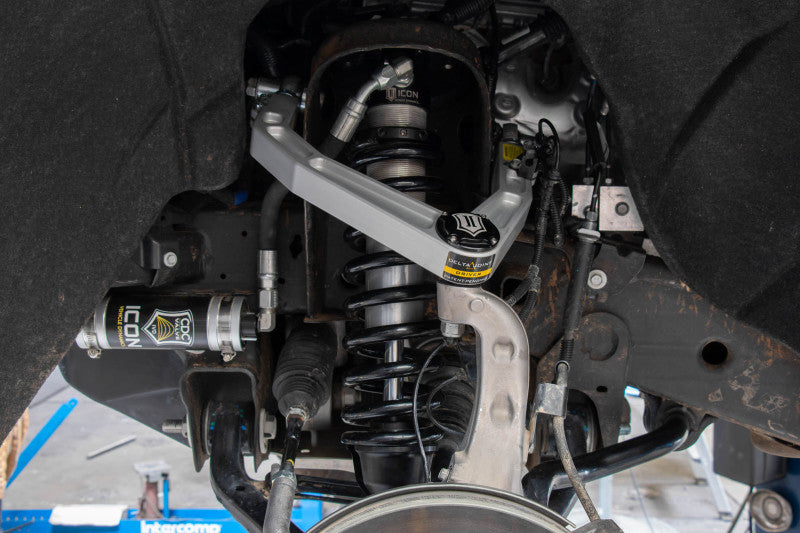

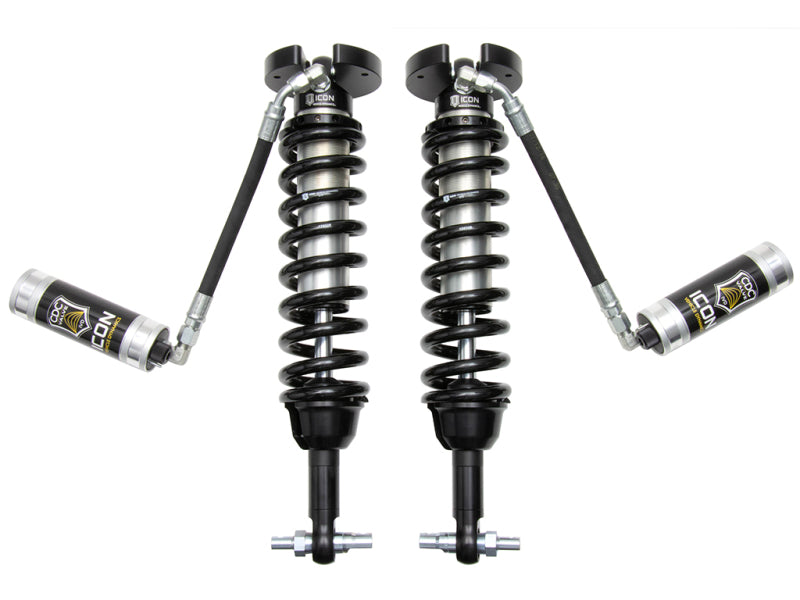

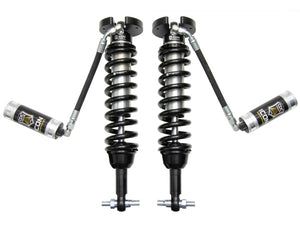

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.
Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- ICON CDCV equipped for external tunability of your shocks
- Height-adjustable coilovers offer 1.5-3.5" of front lift height
- ICON engineered Eibach coil springs
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
TECH NOTE: Aftermarket front upper control arms required for installation. ICON Part numbers 78620DJ or 78720DJ recommended.
TECH NOTE: Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range 0-1.5" over stock
TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC)
TECH NOTE: Not compatible with models equipped with 4-cylinder engine
TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
TECH NOTE: Models equipped with 6-cylinder diesel engine will have lift height adjustment range reduced by approximately .5"
TECH NOTE: Not compatible with models equipped with torsion bar front springs
Specifications
| Cylinder Color |
Silver |
| Cylinder Finish |
Cadmium Plated |
| Damping Type |
Oil |
| Extended Length |
23.83 IN |
| Gas Charged |
Yes |
| Lower Mount Type |
Eyelet |
| Material |
Steel |
| Material |
Aluminum |
| Maximum Lift |
3.5 IN |
| Minimum Lift |
0 IN |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Tires |
(Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Tires |
(Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Reservoir Style |
Remote |
| Self-Leveling |
No |
| Service Parts |
257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts |
254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts |
611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts |
252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts |
252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts |
252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter |
0.875 IN |
| Shock Absorber Body End Measuring Point |
Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point |
Center of Eylet |
| Spring Rate Type |
Linear |
| Travel Length |
5.87 IN |
| Upper Mount Type |
Mounting Plate |
| Valving Type |
Digressive |
| Add-On Part |
252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part |
198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Damping |
Yes |
| Body Diameter |
2.5 IN |
| Coil Over Springs Included |
Yes |
| Compressed Length |
17.97 IN |
