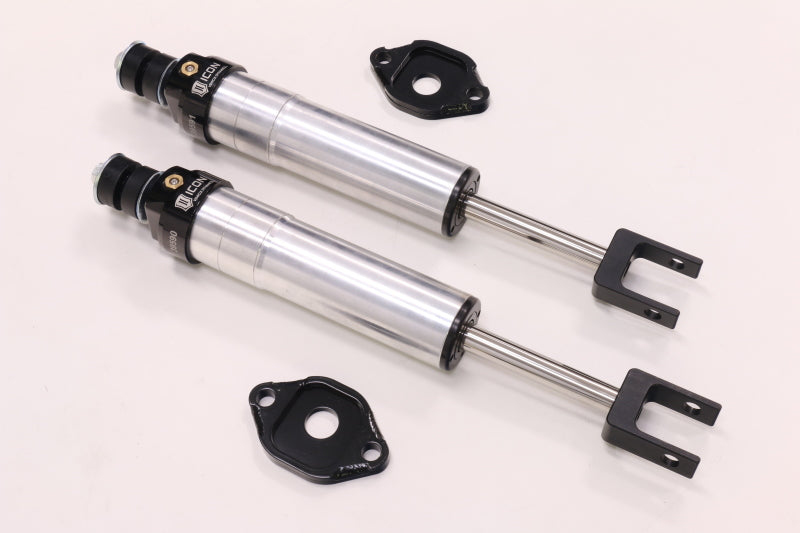

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- 100% Rebuildable
- 100% Revalveable
Specifications
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts |
252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts |
611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts |
254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts |
257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
| Shaft Diameter |
0.875 IN |
| Shaft Material |
Chrome |
| Attributed Description |
ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 13.46 IN; Fully Open Length: 18.79 IN; Gas Charged: Yes; Lower Mount Type: Clevis; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Clevis Holes; Stroke Length Front: 5.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: No |
| Cylinder Color |
Silver |
| Cylinder Material |
Steel |
| Damping Type |
Oil |
| External Reservoir |
NO |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts |
252003 - SEAL INSTALL TOOL 2.5/3.0 |
